>Card type:EM / HID / MF / CPU
>Metal backlight keypad
>Operating Voltage:DC 12-24V
Brand:
S4AItem NO.:

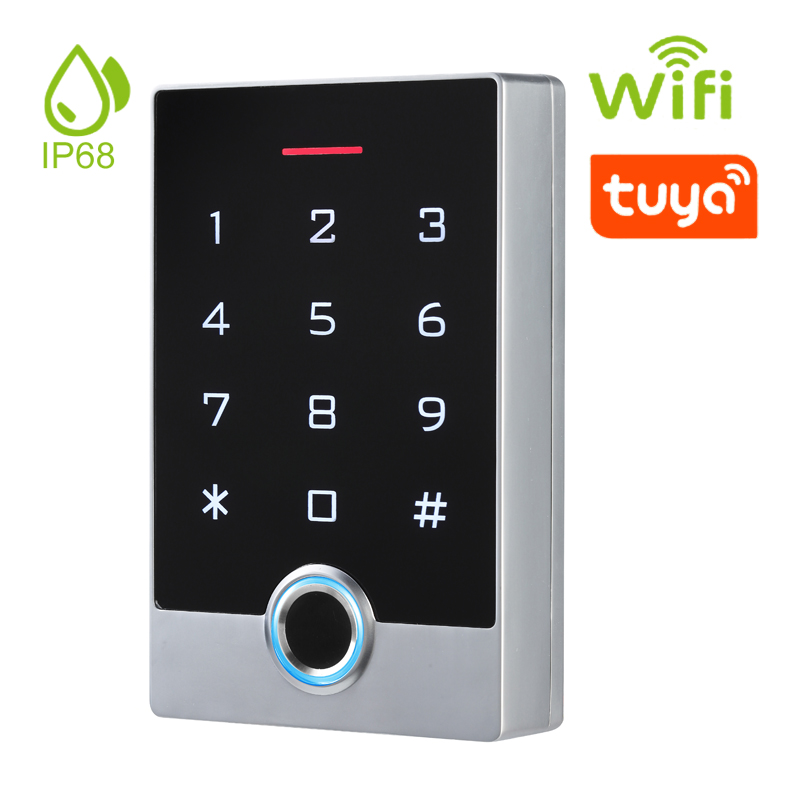

TF301Tuya Wifi Access Control System Fingerprint And RFID
Model No.:TF301
This is a new generation of multi-function standalone access control.
It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc..
Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..
Product Parameter | Parameter Description |
S4A Model | TF301 |
Product Name | Metal Fingerprint Access Control |
Card type | EM / HID / MF / CPU |
User Capacity | 10,000 users |
Fingerprint Capacity | 256 |
Keypad Characteristic | Metal backlight keypad |
Operating Voltage | DC 12-24V |
Standby Current | <=35ma |
Operating Current | <=100ma |
Operating Temperature | -40℃ ~ 60℃ |
Operating Humidity | 0%~95% |

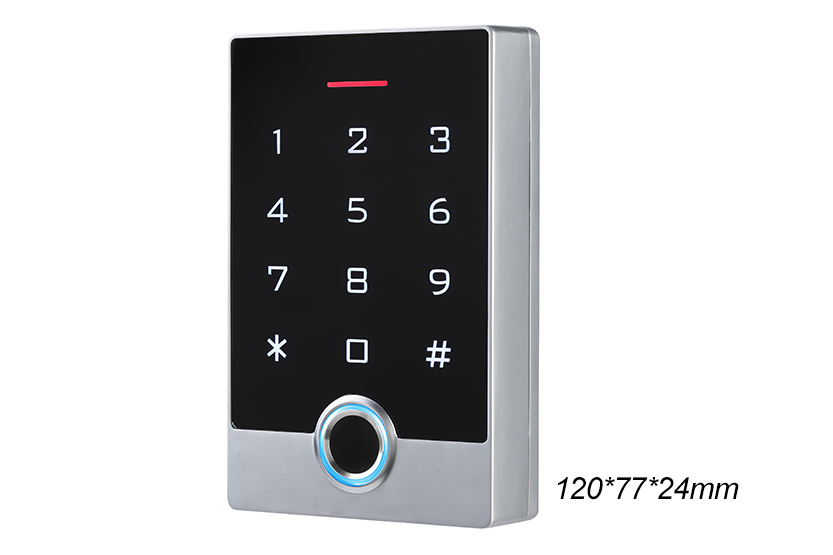

Dimensions | 120x77x24mm |
Access ways | Fingerprint, card, code, or multiple |
combination methods |
S4A Datasheet_Tuya Wifi Access Control System Fingerprint And RFID
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
