> Card type: EM, HID, MF, CPU Card
(Factory default: EM 125KHz)
> Metal backlight keypad
> User capacity: 10,000 users
> Dimensions: 139x70x22mm
> Waterproof IP68
Brand:
S4AItem NO.:

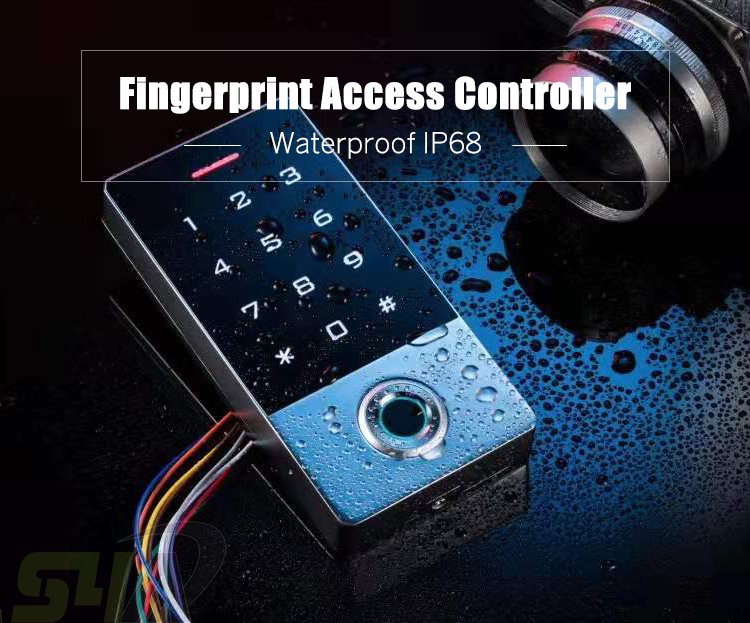

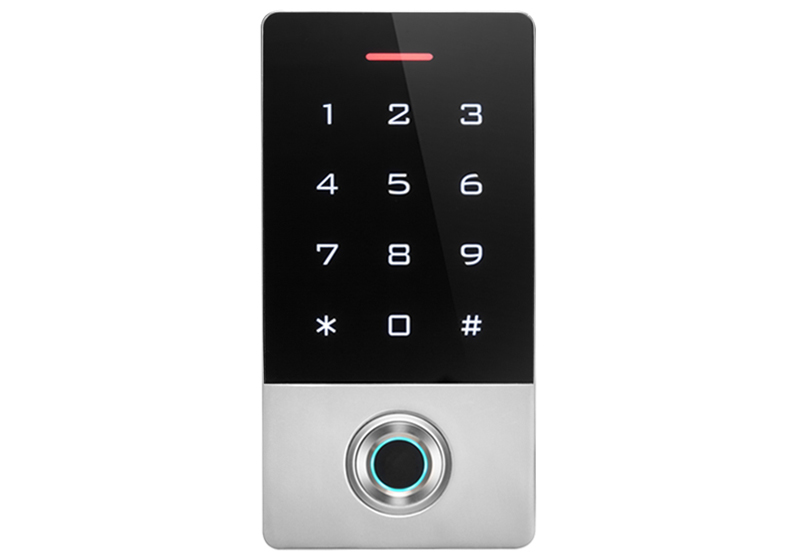

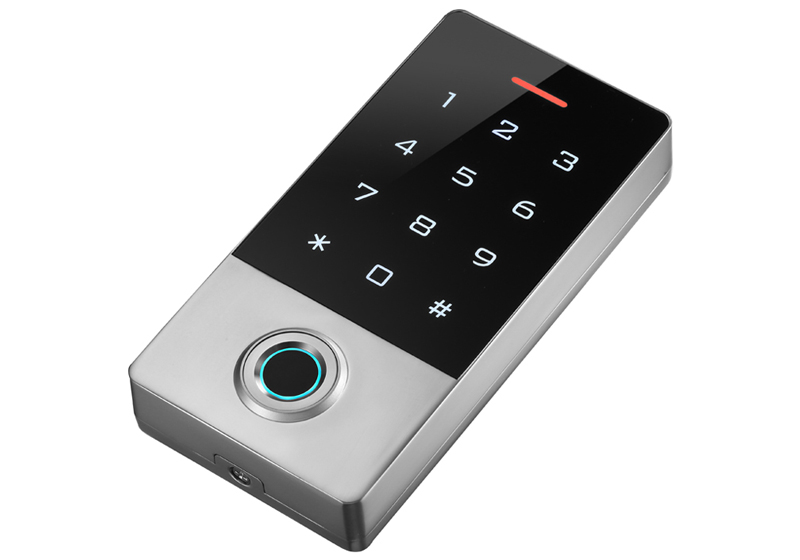

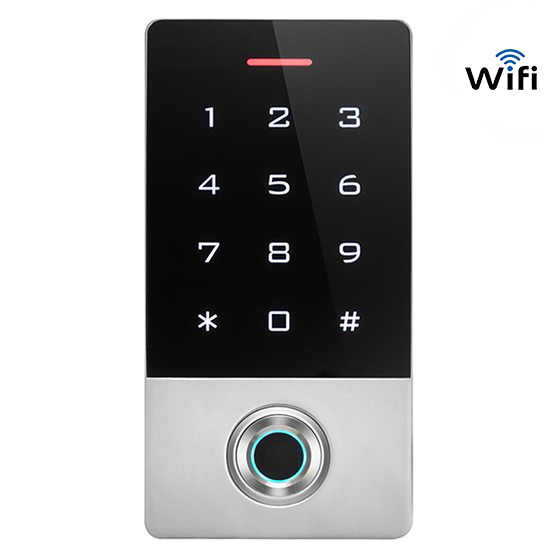

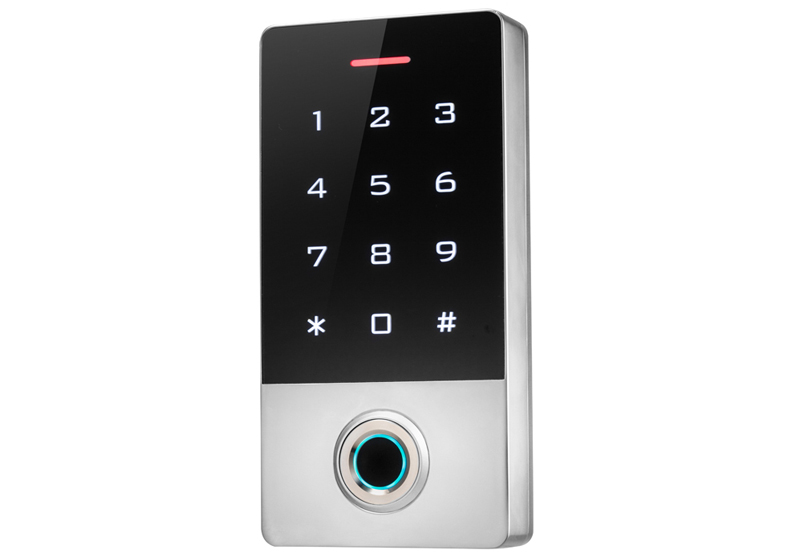

TF1Fingerprint Touch-Screen Standalone Access Control
Model No.: TF1 EM, HID, MF, CPU
This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is robust, stable, and reliable.
It includes card reader mode and standalone touchscreen access control mode etc. Its widely applied to different occasions, such as offices, residential communities, villas, banks, prisons, etc.
Features:
> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
> Metal backlight keypad
> Contains card reader mode. The user could adjust the transmission format.
> Supports different access ways: Entry by Card + Code or Entry by multi cards
> Support master added a card and deleted the card
> User capacity: 10,000 users
Card type | EM / HID / MF / CPU |
User Capacity | 10,000 users |
Fingerprint Capacity | 200 |
Operating Voltage | DC 12-24V |
Standby Current | ≤35mA |
Operation Current | ≤100mA |
Operating Temperature | -40℃～60℃ |
Operating Humidity | 0%～95% |
Waterproof | IP68 |

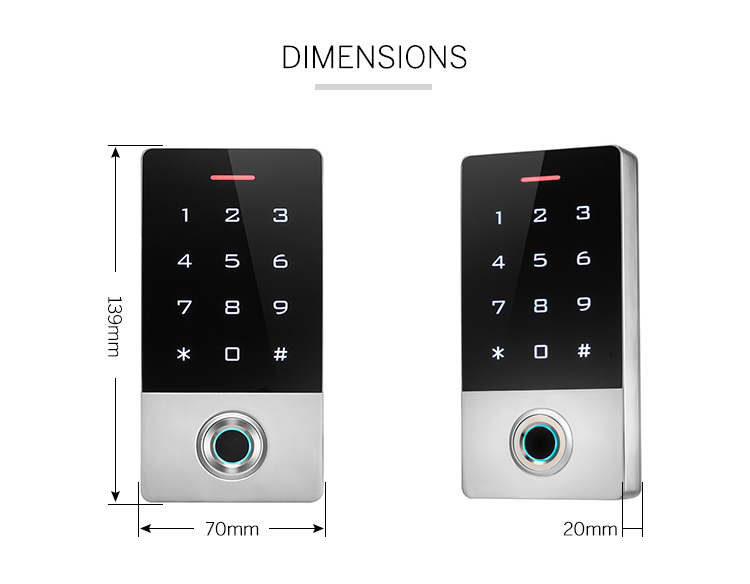

Dimensions | 139x70x22mm |
Access ways | Fingerprint, card, code, or multiple combination method to access |
Touch Screen Fingerprint Door Lock, Password Card Reader Waterproof Smart Digital Access Controller | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
TF1EM-W | 139x70x22mm | 54pcs | 31.2KG | 55.5x40x39.9cm |
TF1MF-W | 54pcs | 31.2KG | ||
S4A User Manual TF1_Fingerprint Touch-Screen Standalone Access Control
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
