> Display: OLED
> Card Type: MF Card
> Material: Aluminum alloy
Brand:
S4AItem NO.:

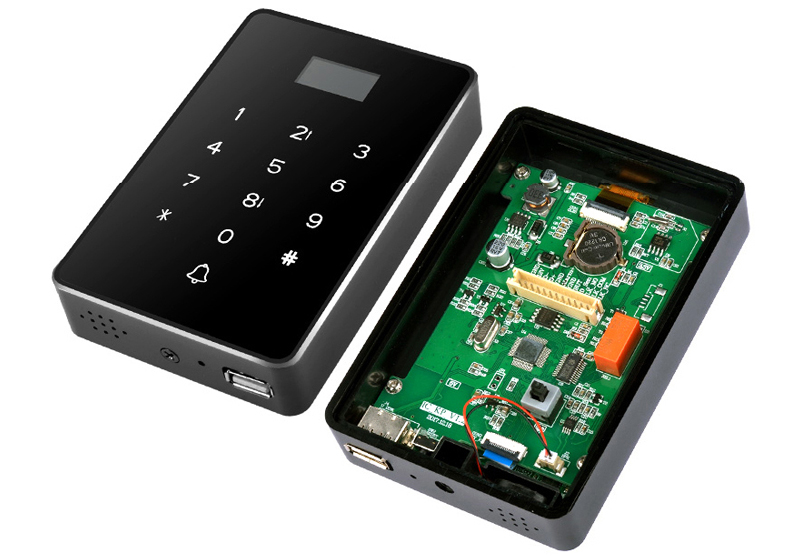

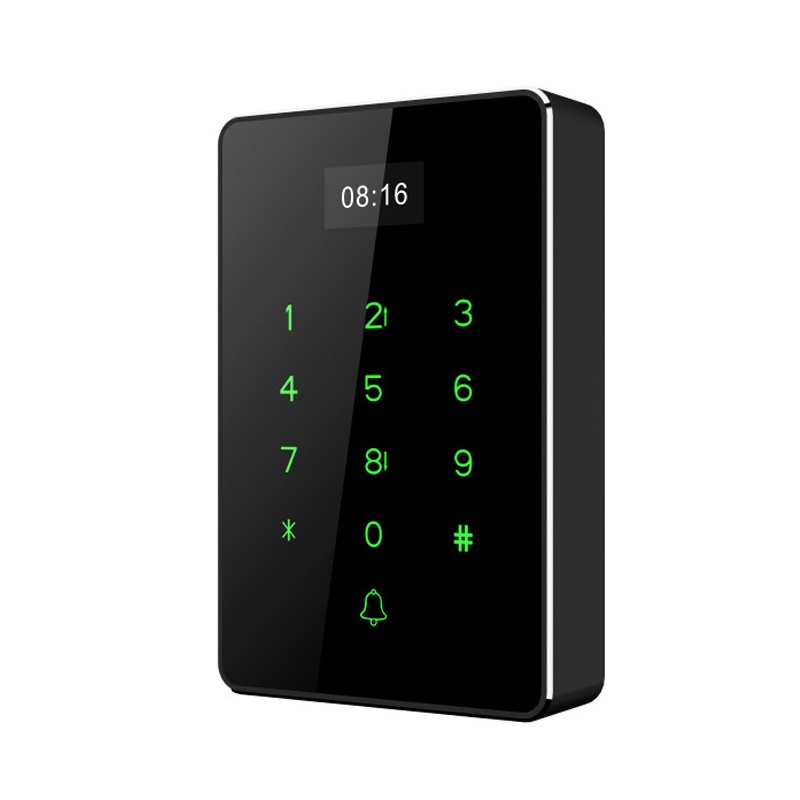

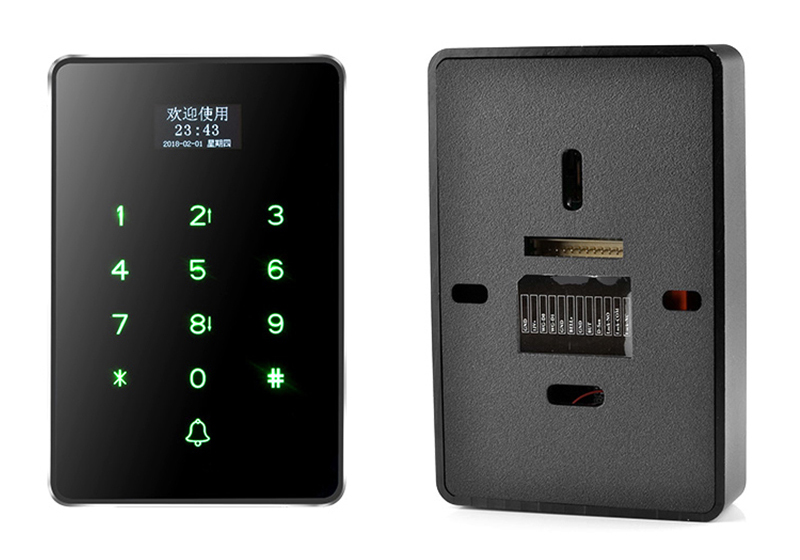

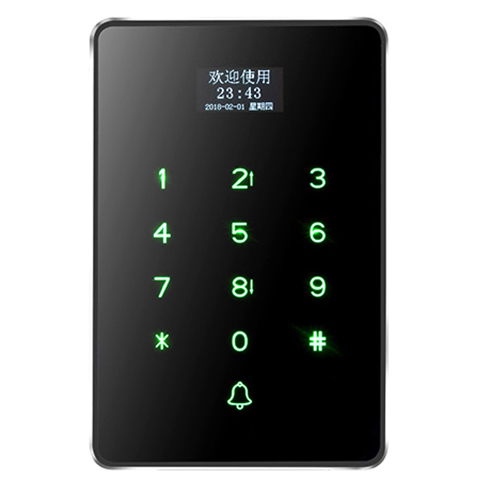

C800-BTouch Screen Door Lock System Security Access Controller Keypad
Model No.: C800-B MF
Card capacity: 1000
Password capacity: 1000
Storage capacity:100000
Display: OLED
Access card reader mode no card capacity limit
Comes with an independent backlight doorbell button
U-disk to download and upload user information
V-Self-service excel report for attendance
TXT form original attendance record
Communication way: U-disk
Voice: Yes
Material | Aluminum alloy |
User card Capacity | 1000 |
Record Capacity | 100000 |
Card frequency | Mifare-13.56MHz |
Display | OLED low power consumption |
Waterproof Rate | Non-Waterproof |
User Password Capacity | 1000 groups |
Wiegand Protocol | Standard WG26/WG34 |
Voice Prompt function | Chinese and English language support |
Anti-tamper alarm | Support |

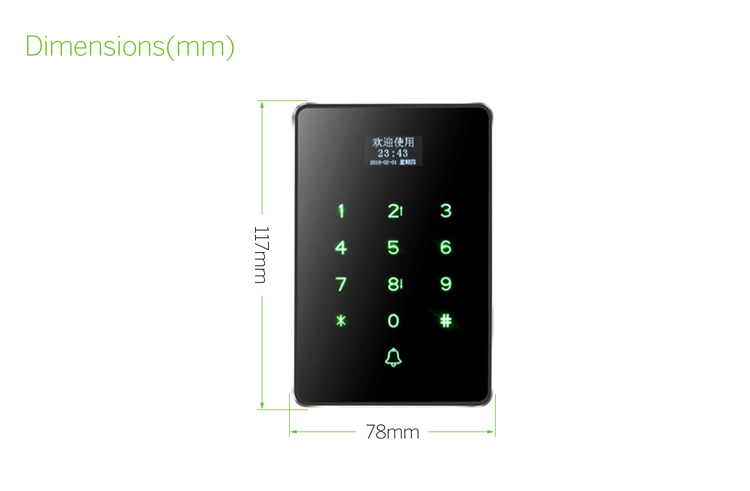

Dimension | 117 X 78 X 22mm |
S4A Datasheet_Touch Screen Door Lock System Security Access Controller Keypad
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
