Categories
> Card type: EM Card
> Plastic case
> Digital backlit touch keypad
> Multi-function standalone access controller and reader,
> WG interface: WG26 Input / output
> Capacity: 2000 cards / codes
Brand:
S4AItem NO.:

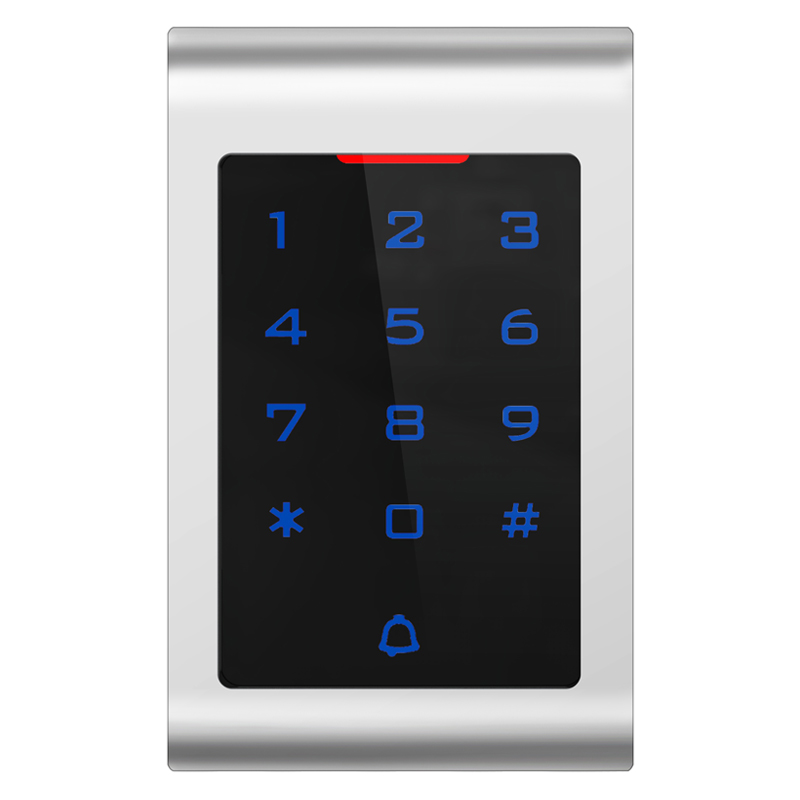

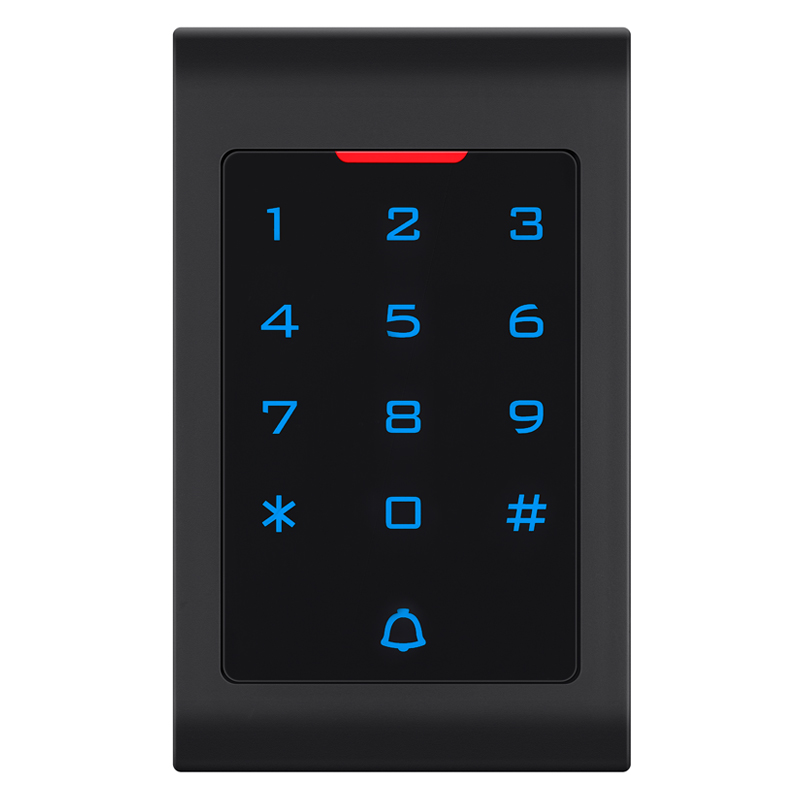

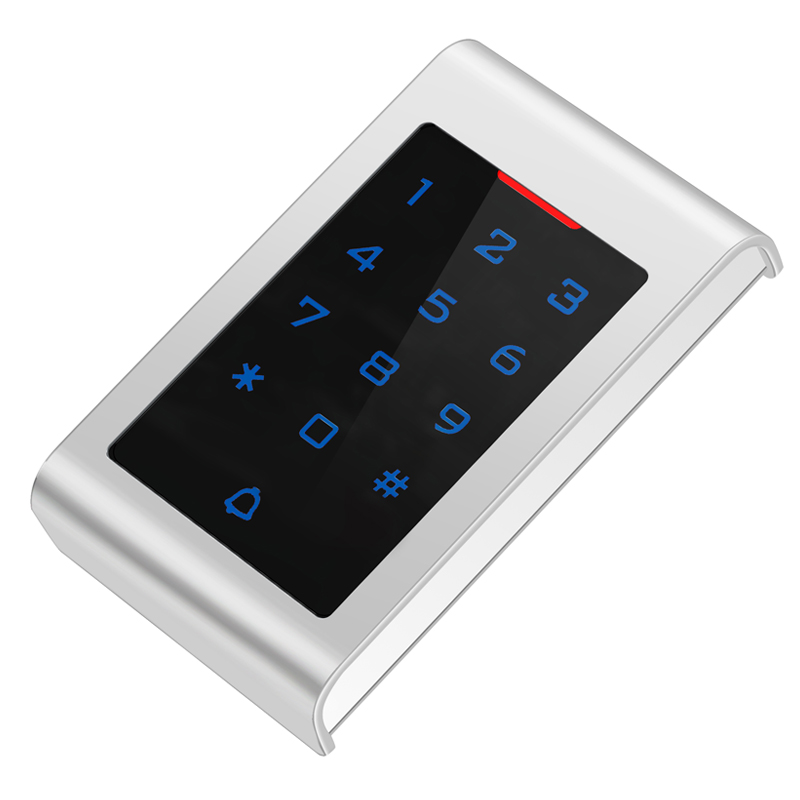

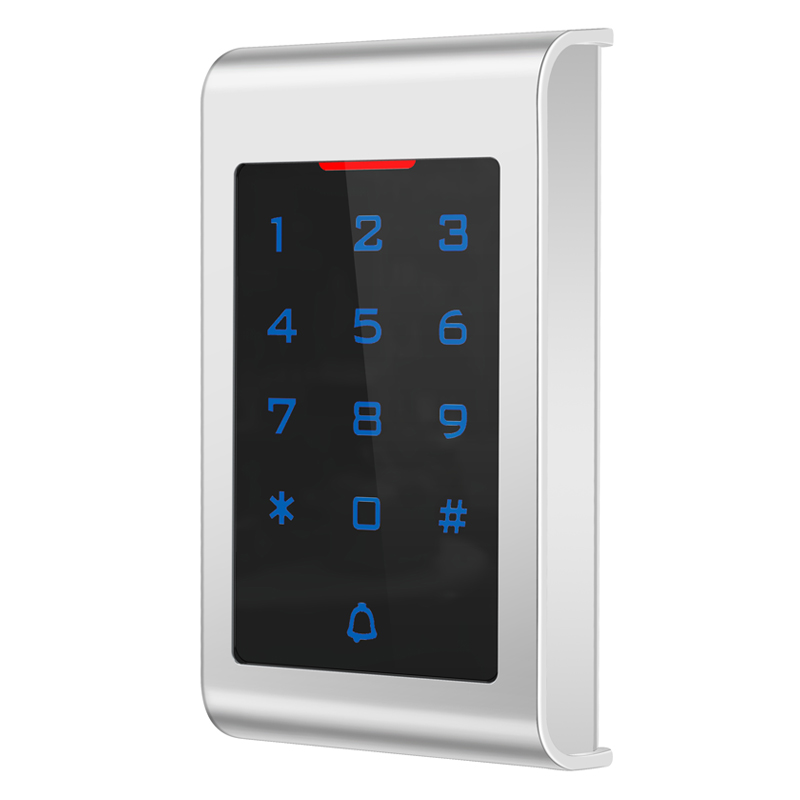

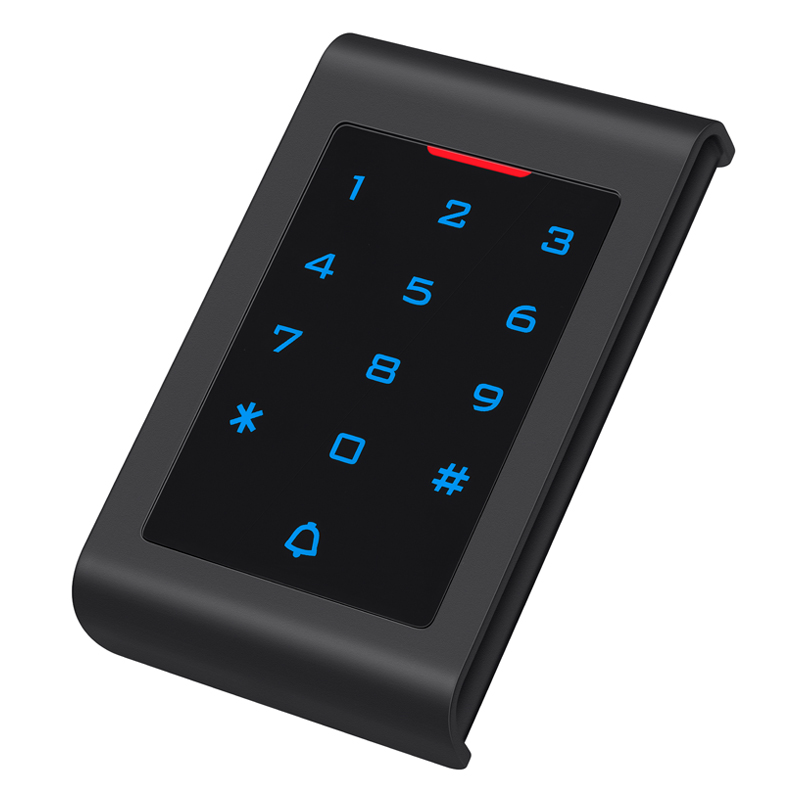

T10 PlasticTouch Screen Standalone Access Controller
Model No.: T10 EM Plastic
Product feature:
> Plastic case
> Digital backlit touch keypad
> Multi-function standalone access controller and reader,
> WG interface: WG26 Input / output
> Capacity: 2000 cards / codes
> Three accesses: card, pin, card+pin
Card type | EM |
Working voltage | DC12V±10% |
Reading Range | 3-6cm |
Humidity | 10%~90% RH |
Door Opening Time | 0~99s(Adjustable) |
Sleep electricity | ≤30mA |
Ambient temperature | -45℃~60℃ |
Electric lock output | ≤3A |
Short-circuit Protect | ≤100μS |

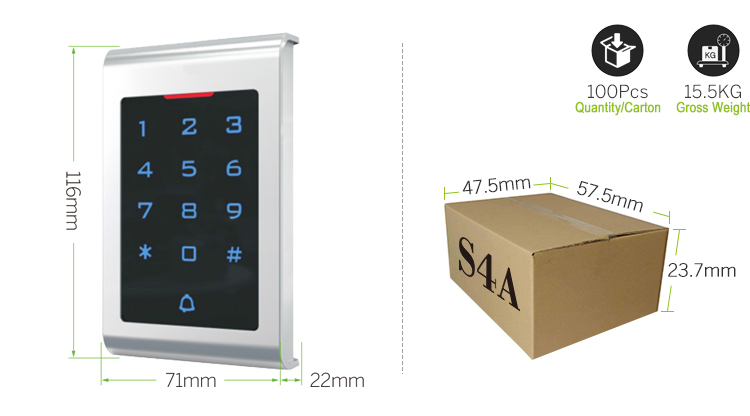

Dimensions | 116x71x22mm |
Touch Screen Access Controller | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
T10EM Plastic | 100pcs | 15.5KG | 57.5x47.5x23.7cm |
T10MF Plastic | 100pcs | 15.5KG | |
S4A User Manual T10_Touch Screen Access Controller
> Card Type: EM Card> Storage: 4000 users> Working frequency: 125KHz> Operating voltage: DC12V> Wiegand 26 Input and Output
> Card Type: EM Card> Storage: 4000 users> Working frequency: 125KHz> Operating voltage: DC12V> Wiegand 26 Input and Output
> Card Type: MF or MF Card> Waterproof degree: IP65> Capacity: 1000 user> Working frequency: 125KHz or 13.56MHz> Wiegand Input and Output
> Card Type: MF or MF Card> Operating voltage: DC12V±10% > Capacity: 1000users > Card Type: EM or MF> Wiegand input
> Card Type: MF or MF Card> Support RFID+Pincode> Built-in doorbell> Touch-screen keypad> With WG 26input
> Card Type: MF or MF Card> 1000user capacity (Support RFID+Pincode)> Voltage: DC12V> Touch-screen keypad
> Card Type: MF or MF Card> Voltage: DC12V> User Capacity: 1000users> Wiegand input
> Card Type: MF Card> Material: Aluminum alloy> Waterproof Rate: Non-Waterproof> Dimension: 117 X 78 X 22mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
