> Card type: EM Card
> User Capacity: 2000
> Card Reading Distance: 2-5 cm
> Size: 133 x 59 x 21mm
> Waterproof: IP68 (Optional)
Brand:
S4AItem NO.:

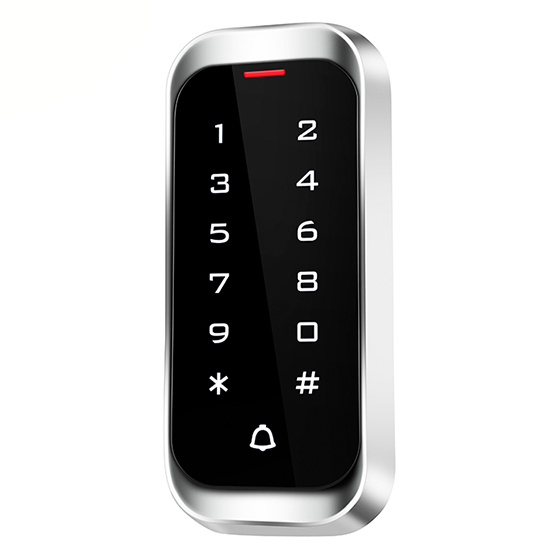

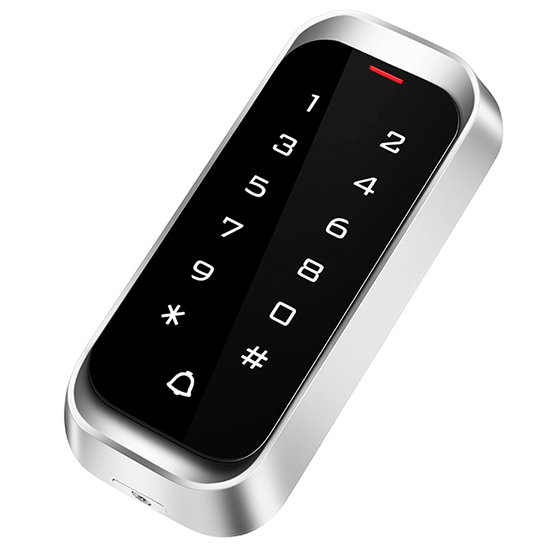

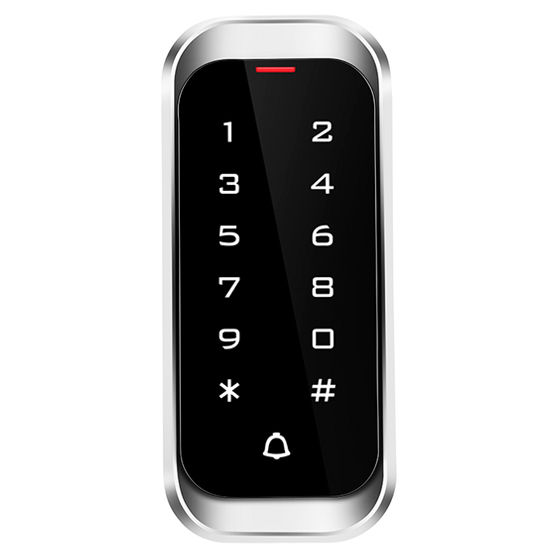

T1301Touch Screen Standalone Access Controller
Model No.: T1301 EM
Card type | EM |
Waterproof | IP68 (Optional) |
Working voltage | DC12V |
Reading Range | 2-5cm |
Humidity | 10%-90% RH |
Door Opening time | 0-99s(Adjustable) |
Sleep electricity | ≤30mA |
Ambient temperature | -45℃~60℃ |
Electric lock output | ≤3A |
Short-circuit protect | ≤100μS |

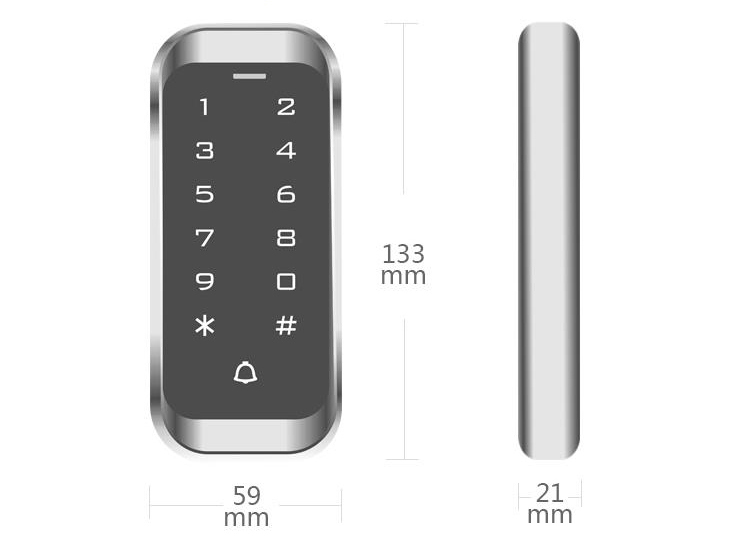

Dimensions | 133 x 59 x 21mm |
S4A User Manual T1301_Standalone_Touch_Keypad_RFID_Reader_with_Wiegand26_IP68
