> Card type: EM Card
> User Capacity: 2,000
> Communication: USB/U Disk
>Screen size: 2.4 inch LCD color screen
Brand:
S4AItem NO.:

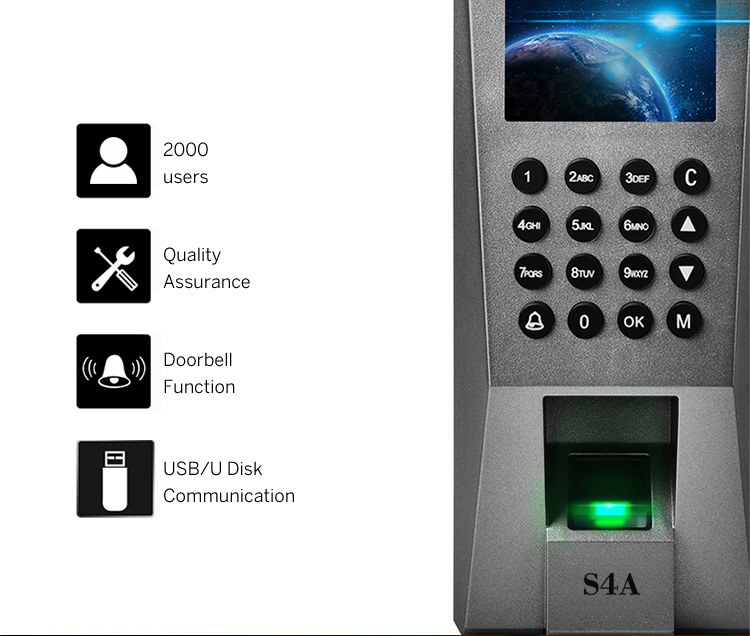

S4A-F18Standalone Fingerprint Access Controller With LCD
Model No.: S4A-F18 EM
What is Fingerprint Access Control?
Fingerprint Access Control is an intelligent management system that installs a fingerprint access control at the entrance and exits and performs operations such as release, rejection, It is used as gate access control, intelligent building system, high-security entrance, and exit management and other places, The purpose of safe access control is to effectively control the access of personnel and realize the safety management of entrances and exits. The fingerprint access control machine uses human biometric fingerprints for identity security identification and has the characteristics of irreplaceability, non-copying, and uniqueness.
User Capacity | 2000 users |
Card type | ID EM 125KHz |

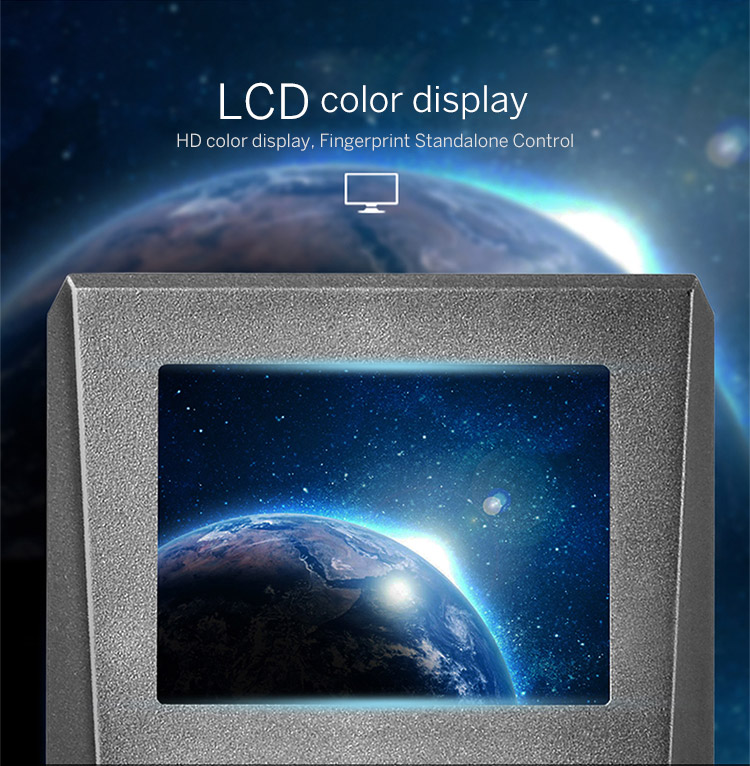

Screen size | 2.4 inch LCD color screen |
Door opening method | Fingerprint, Password, Cards |
Memory record | 50000 items |
Material | ABS flame retardant material |
Communication | USB/U disk upload and download |

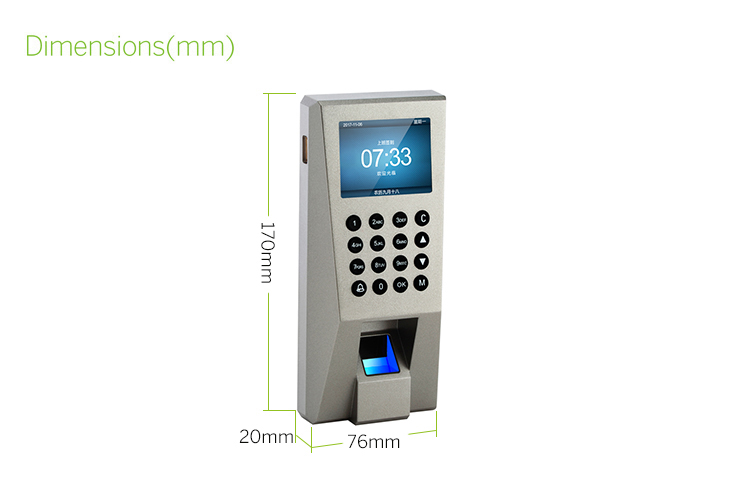

Dimensions | 170x76x20mm |
Weight | 0.5kg |
S4A Datasheet_Standalone Fingerprint Access Controller With LCD
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
