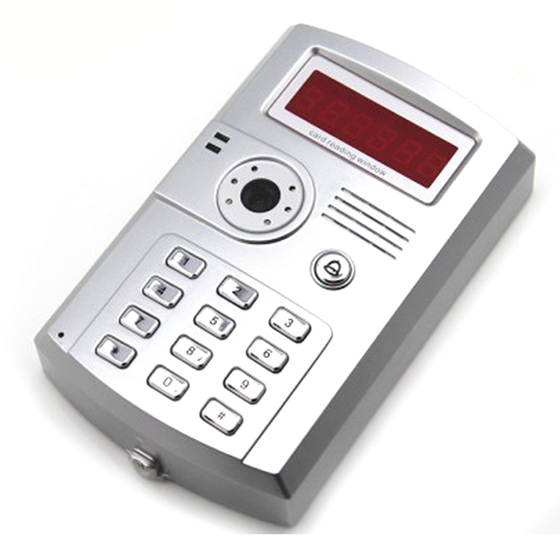

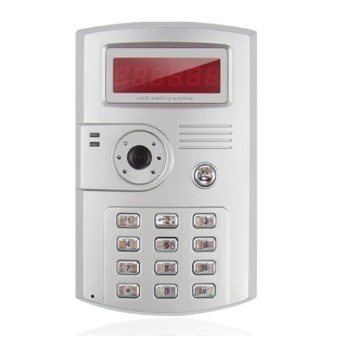

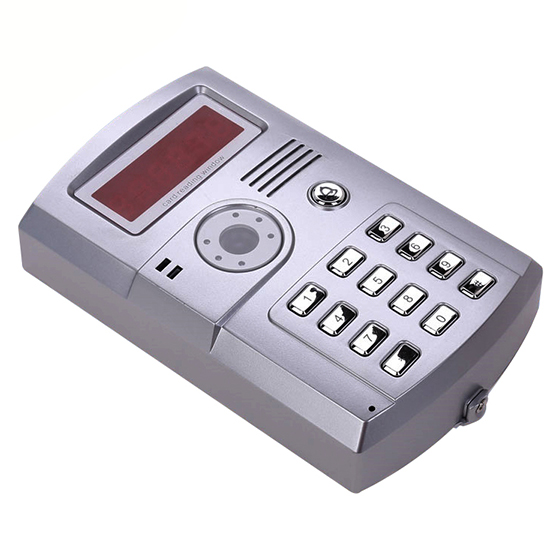

Standalone Access Controller Install Video Door Phone

> Card type: EM or MF Card

> User Capacity: 1000users

> Voltage: DC12V

> Support RFID/Pincode

> Standalone access controller built-in CCD camera

  • Brand:

    S4A
  • Item NO.:

    SA-K7
  • Specifications

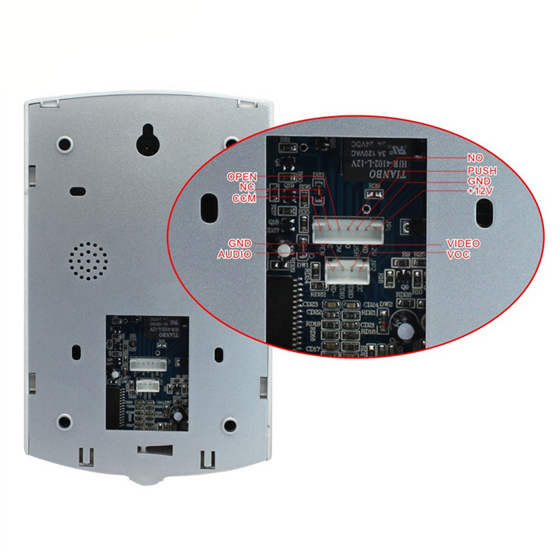

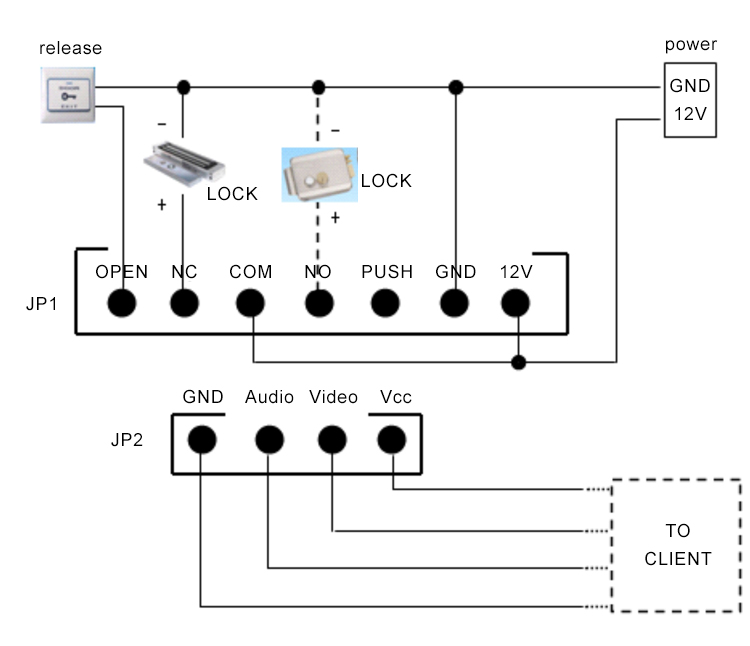

  • Wiring Diagram
  • Package
  • Download

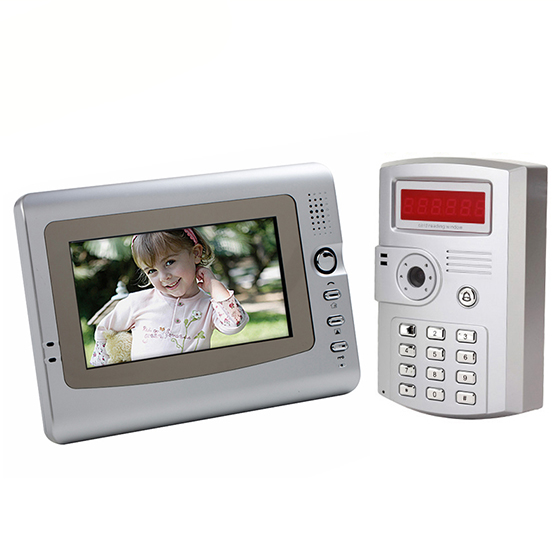

Standalone access control with video door phone

Model No.: SA-K7 EM, MF


Card type

EM or MF

Working frequency

125KHz or 13.56MHz

Capacity

1000 users

Card reading distance

EM: 1-15cm

MF: 1-7cm

Operating voltage

DC12V ±10%

Operating current

<100mA

Ambient temperature

-20℃~70℃

Relative humidity

20%~80%

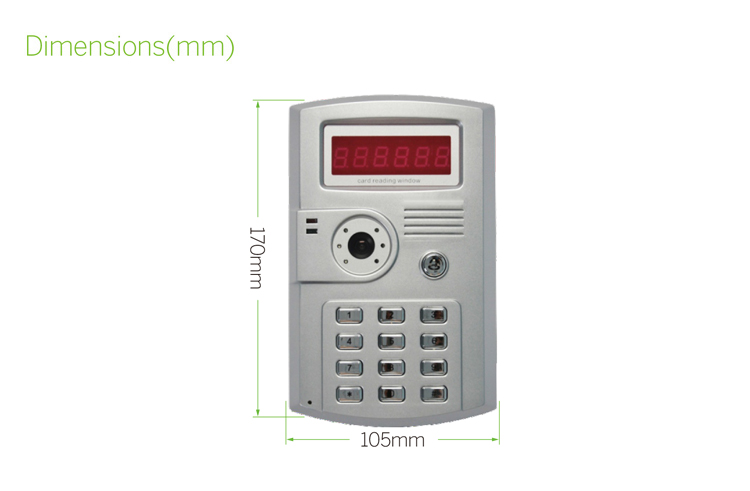

Dimensions

170 * 105 * 38mm

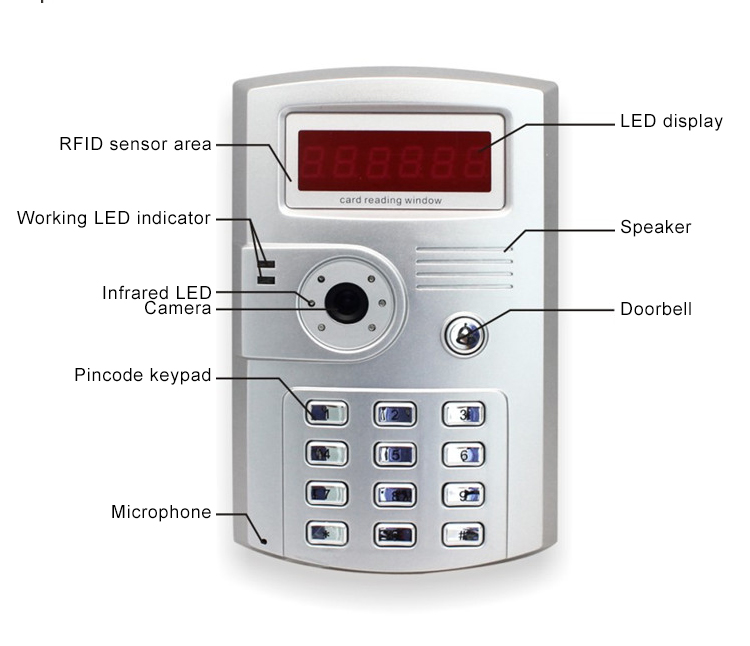

Standalone Access Controller

Standalone Access Controller

Standalone Access Controller

Standalone Access Controller

S4A User Manual SA-K7_Standalone Access Controller Install Video Door Phone
