Stainless Steel Security Long-Type Electric Strike Door Lock

ES-110A: Fail-secure type (Power to unlock)

ES-110B: Fail-safe type (Power to lock)


  • Brand:

    S4A
  • Item NO.:

    ES-110
  • Specifications

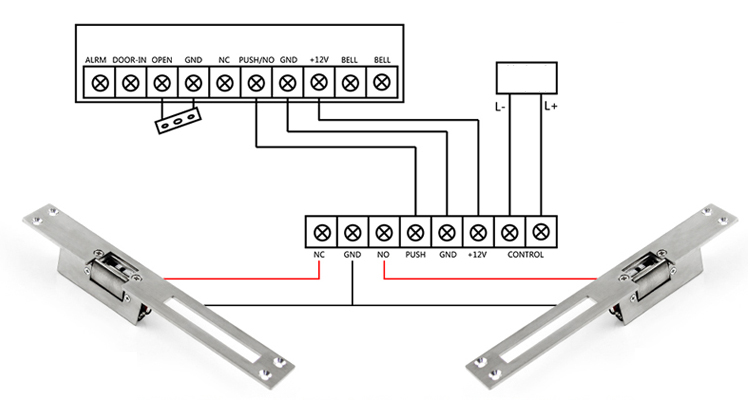

  • Wiring Diagram

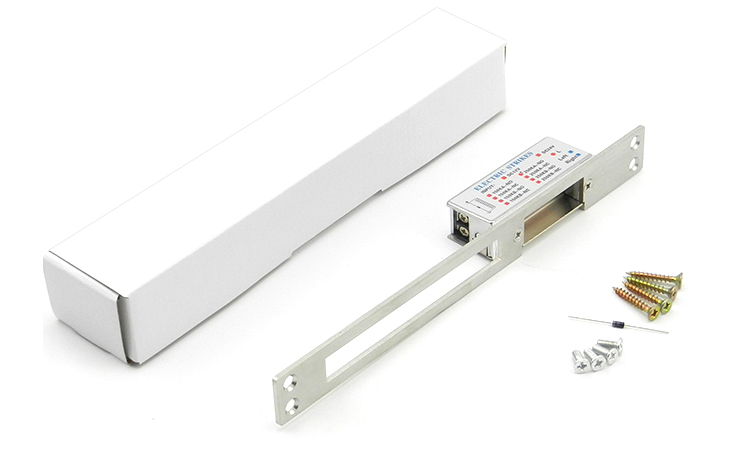

  • Package
  • Download

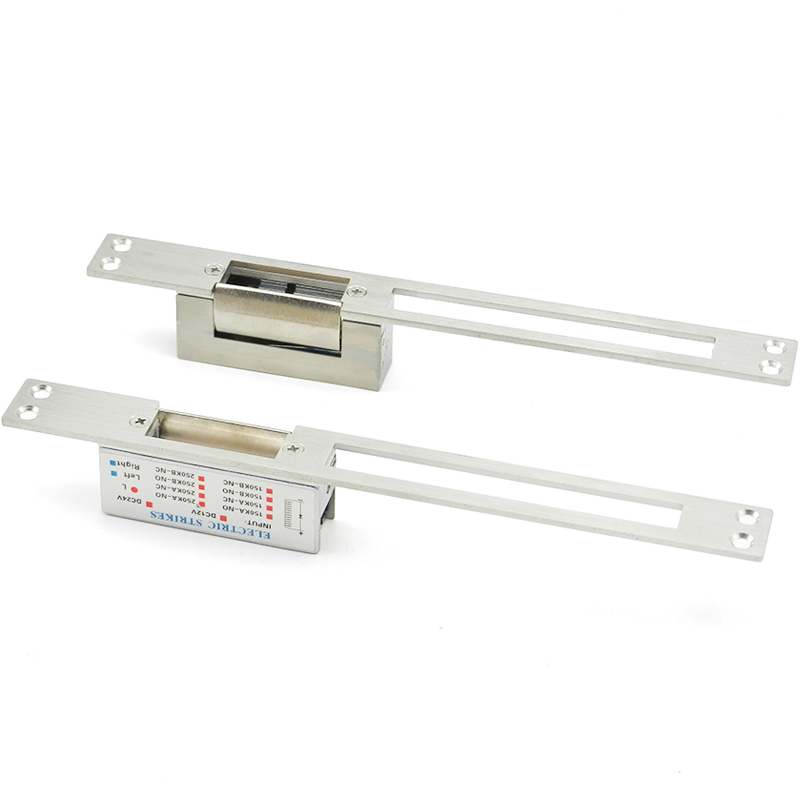

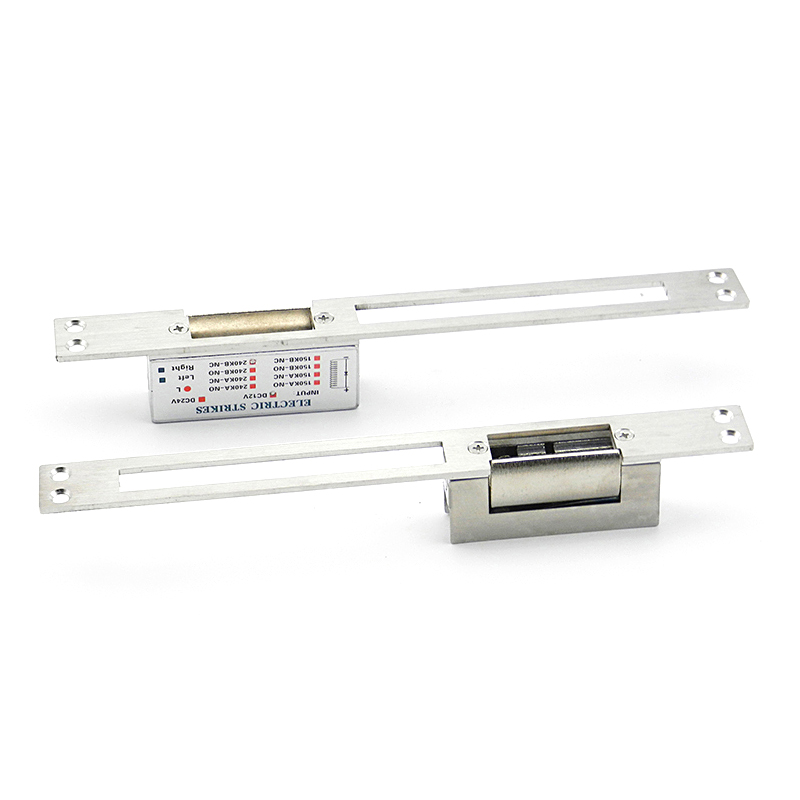

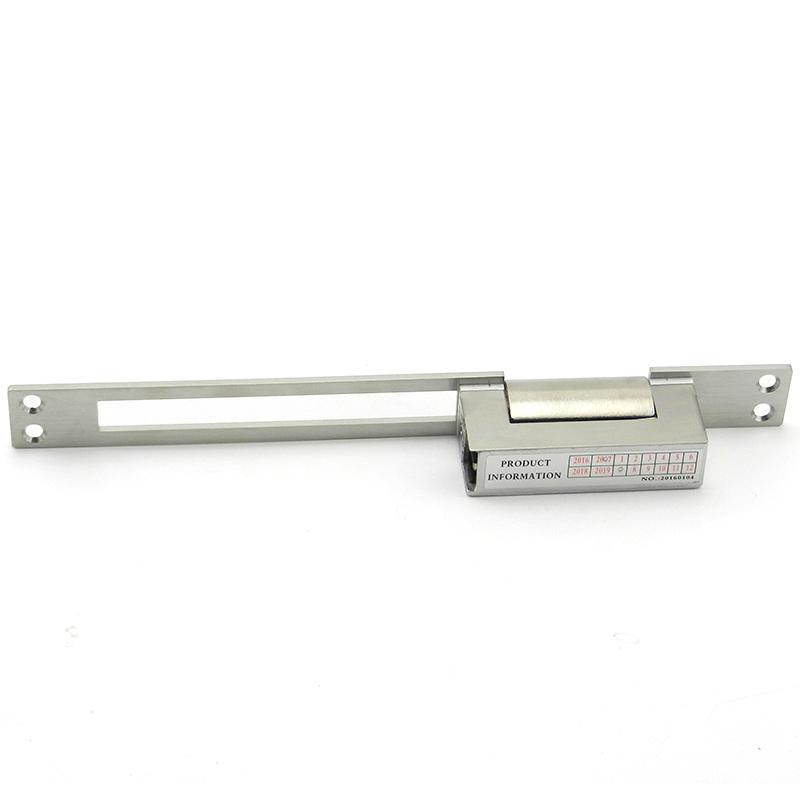

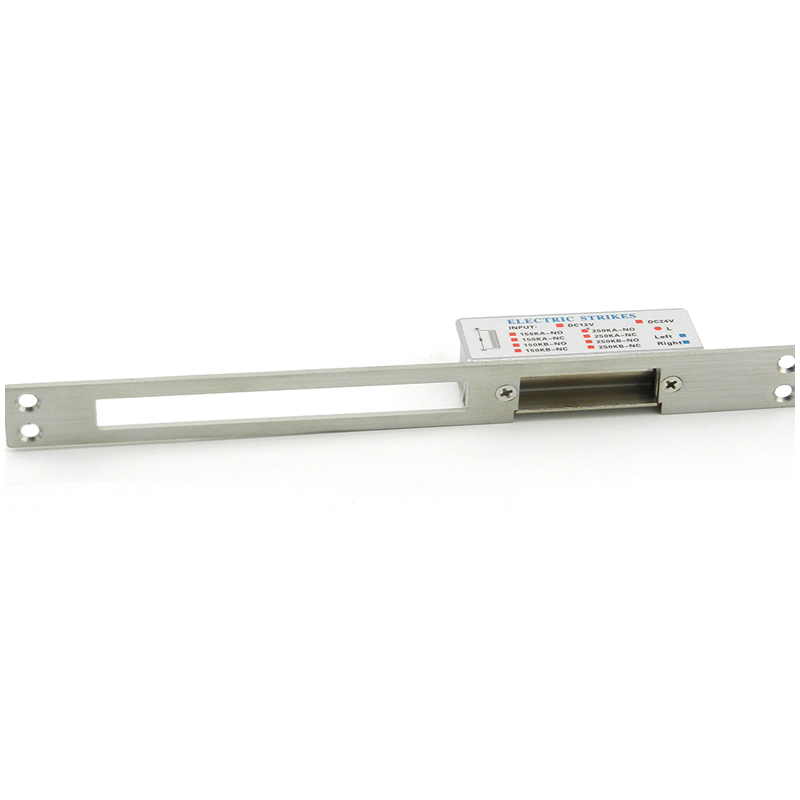

Stainless Steel Security Long-Type Electric Strike Door Lock

Model No.: ES-110A, 110B


ES-110A: Fail-secure type (Power to unlock)

ES-110B: Fail-safe type (Power to lock)


Lock Size

250Lx25Wx34H(mm)

Strike Structure

Stainless Steel

Holding Force

400kg

Voltage

DC12V

Current

240mA(ES-110A) / 120mA(ES-110B)

Surface Temperature

Within +20°C

Suitable Temperature

-10°C~25°C(14°F-131°F)

Face plate Housing

Painted Steel

Function

Built-out MOV

Suitable For

Wooden Door, Metal Door, PVC Door

Opening Mode

90 Degree Swinging Door

Weight

0.4kg

Standard Packing

30pcs/box


Electric Strike Door Lock


Electric Strike Door Lock

Electric Strike Door Lock

S4A Datasheet_Stainless Steel Security Long-Type Electric Strike Door Lock
