> Door open: Finger/Pincode/MechancialKey
> Door thickness: 40mm-120mm available
> Working Voltage: 4pcs lithium battery
> Finger Capacity: 300pcs
> Lock body: SUS 304 stainless steel
> Built in USB
> Working temperature: -30°~ 50°range
Brand:
S4AItem NO.:

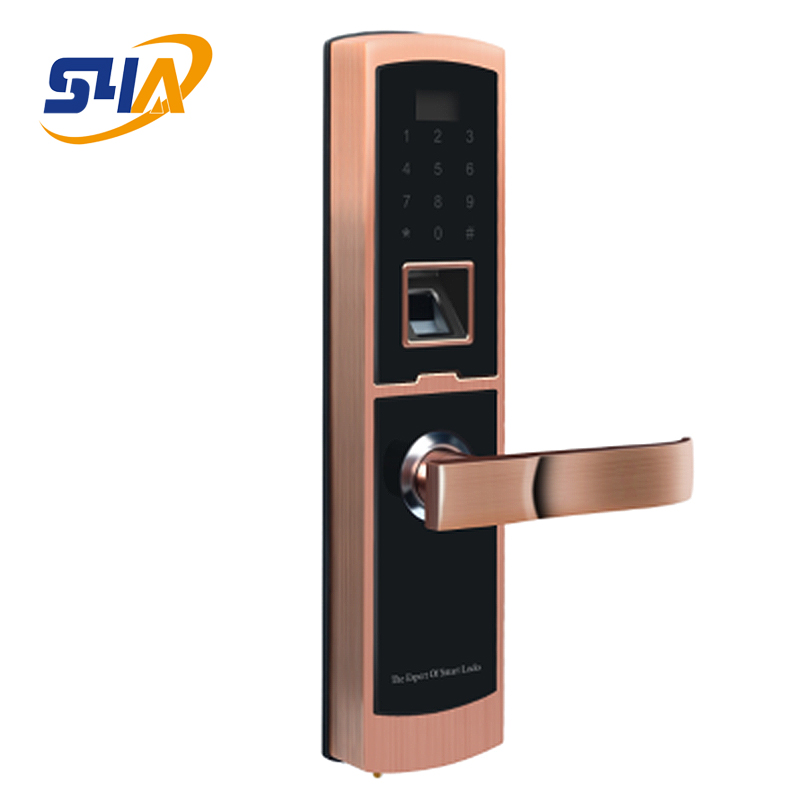

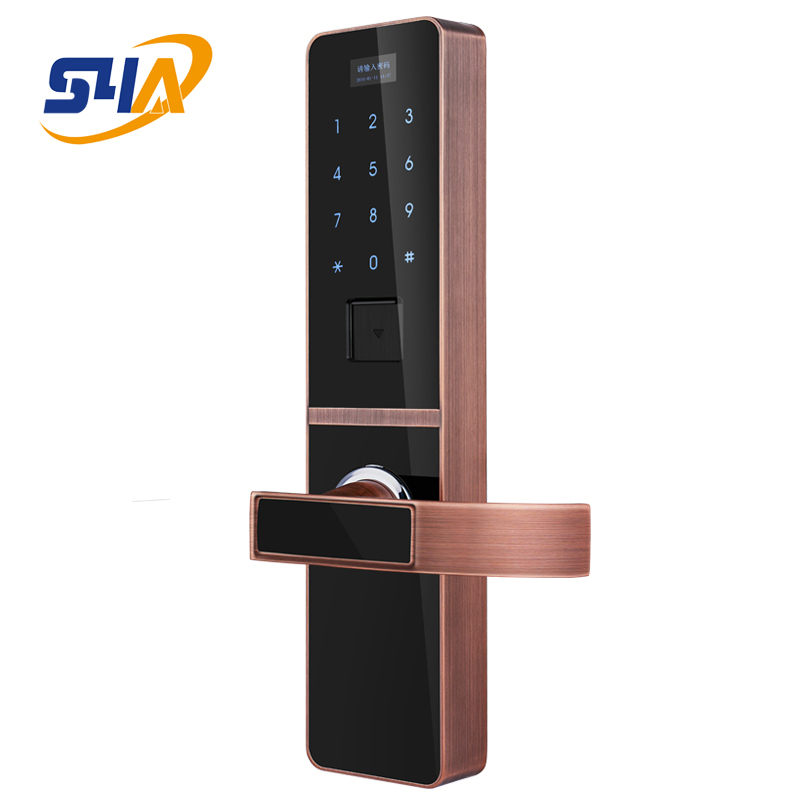

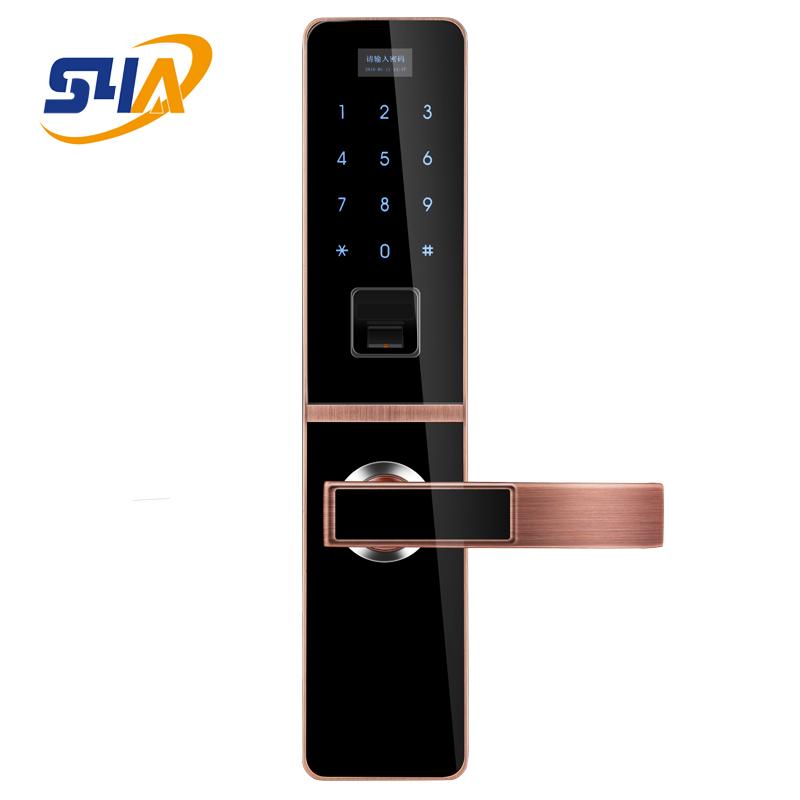

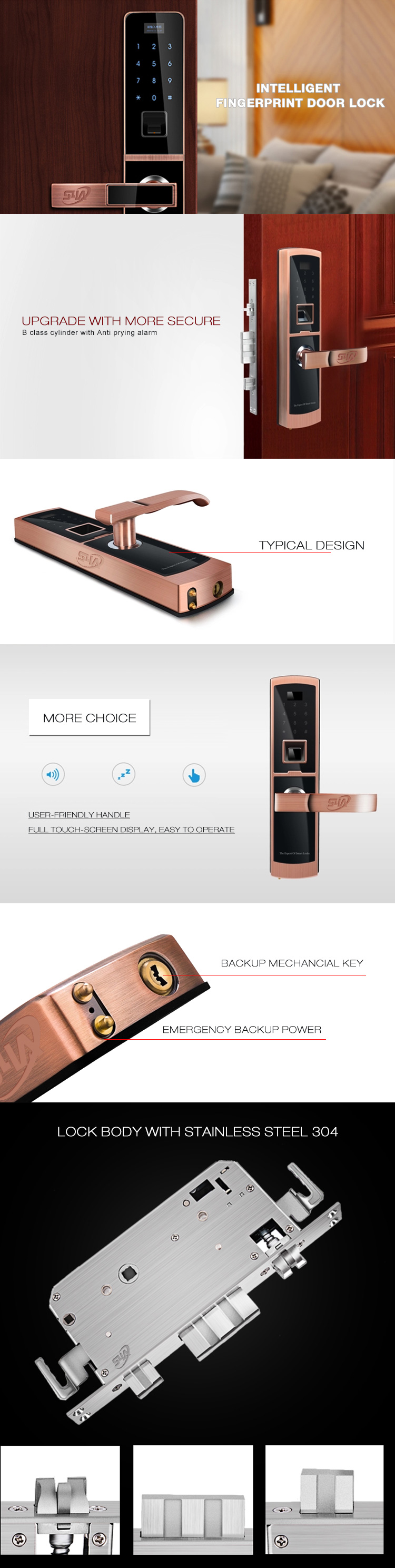

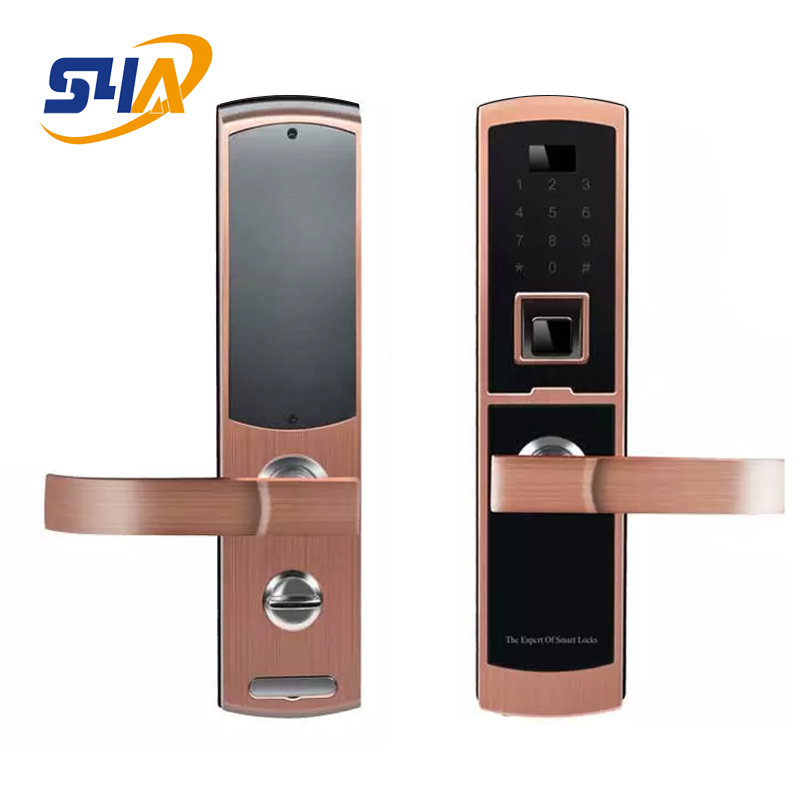

FP-306Biometric Fingerprint Door Lock
Model No: FP-306
Function characteristics:

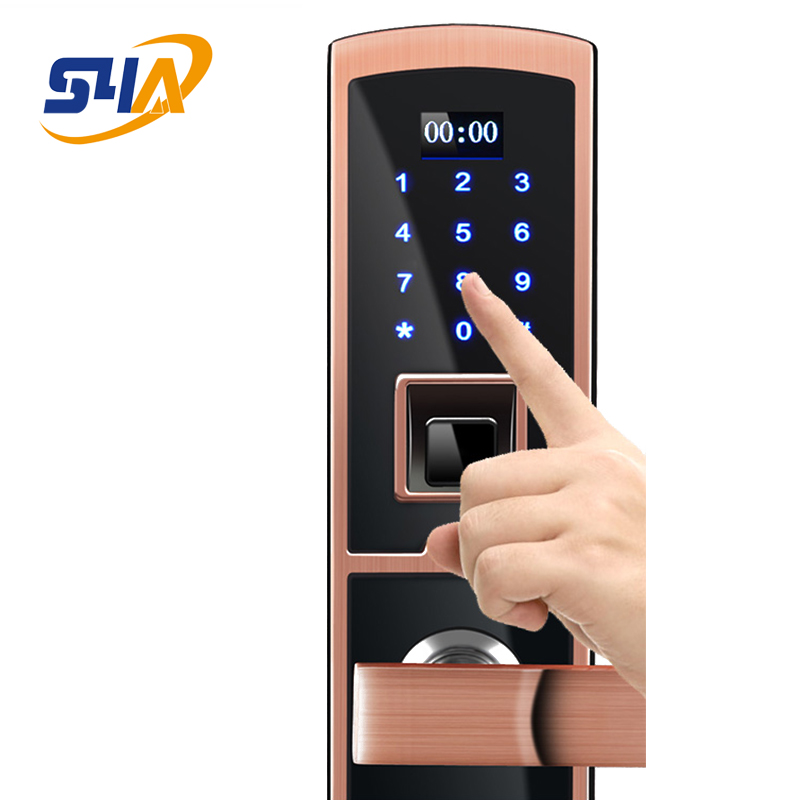

1. One-touch Fingerprint Verification Method
2. Automatic Locking
3. Voice Guide Feature
4. Smart Touchpad
5. Virtual password
6. Easy registration of keys
7. Missing key invalidation
8. Emergency Mechanical Key
9. Anti-panic egress with Safe handle
10. Automatic Alarm (Break-in/Damage)
11. Low-battery alarm&emergency power supply terminal
12. Four Mode Operation(Fingerprint, Password, Key, Card)
13. Can Store up to 250 Finger Prints
14. LED Display For Easy Access
15. Application: Office Apartment, Private House, Villa.
Item No. | FP-306 fingerprint digital door lock |
Color | Silver, gold, antique copper |
Material | Zinc Alloy lock body and stainless steel 304 with cylinder |
Suitable for | Family, office, financial room, government |
Power supply | (4pcs AA Alkaline Battery) |
Typical quiescent current | <40 A (battery life can be more than one year) |
Operating current | <250 MA (driving ability) |
Fingerprint capacity | 300pcs |

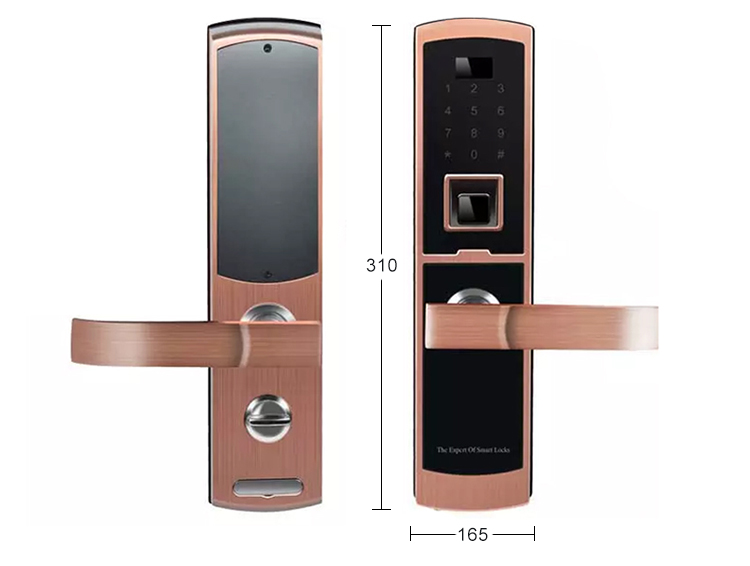

Lock size | 310 x 165mm |
Working temperature | -30° ~ 50° range |
S4A Datesheet_Biometric Fingerprint Door Lock
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
