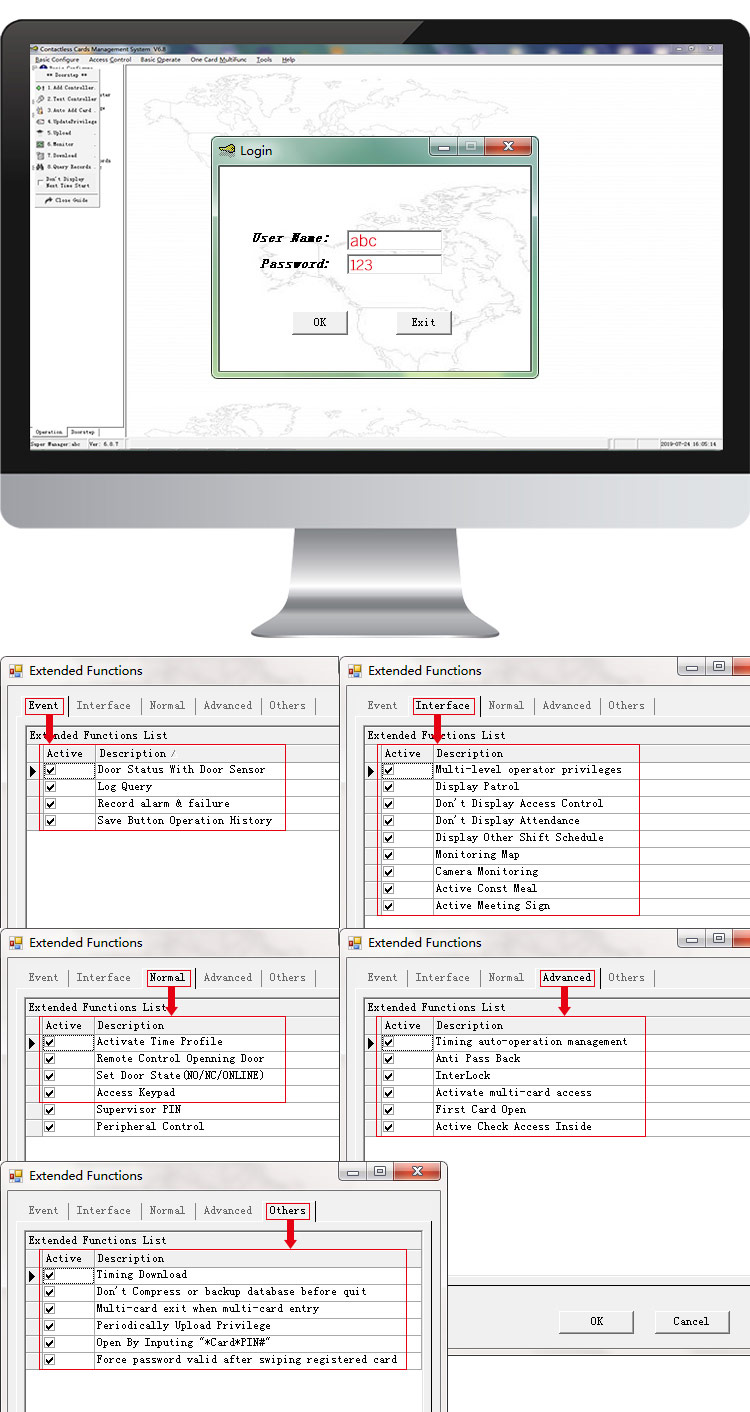

Double door RS485 access Control board with free software to manage users

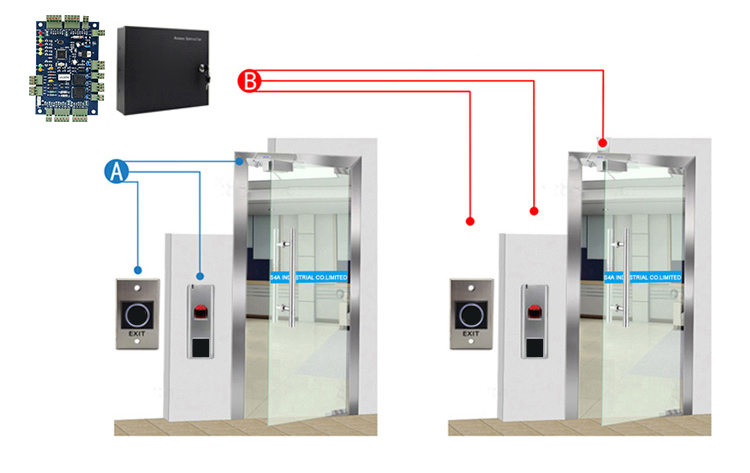

control 2doors, support 2pcs RFID access reader and 2pcs exit button or 4pcs reader for in and out
Brand:
S4AItem NO.:

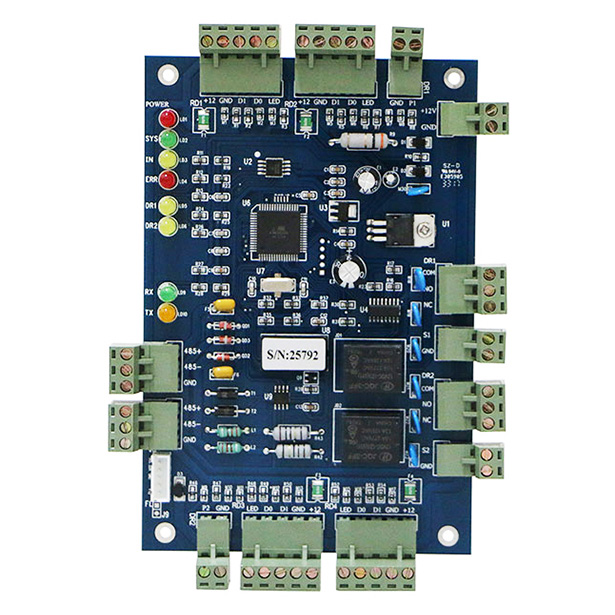

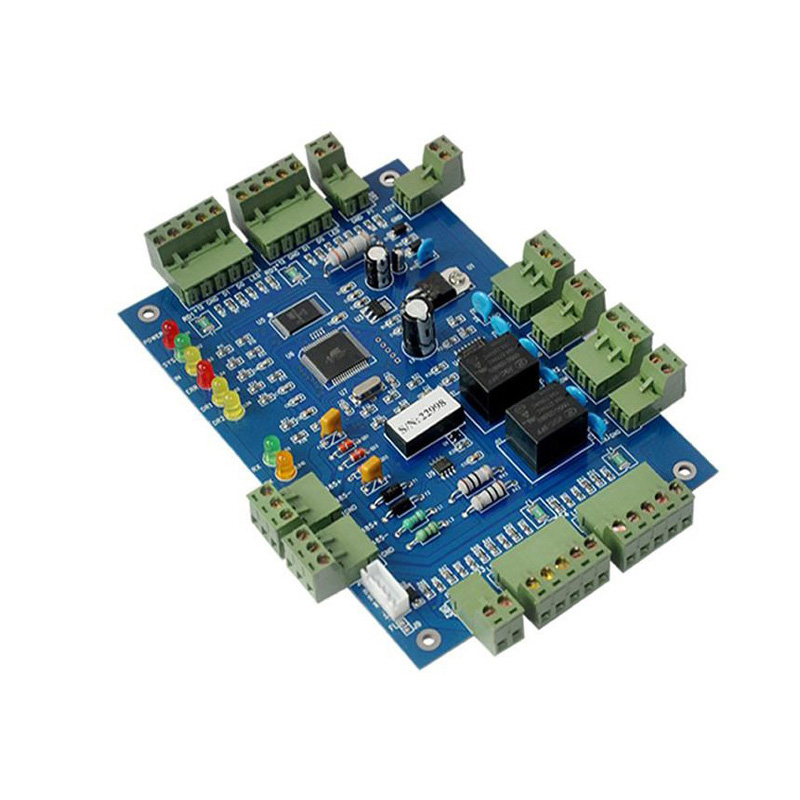

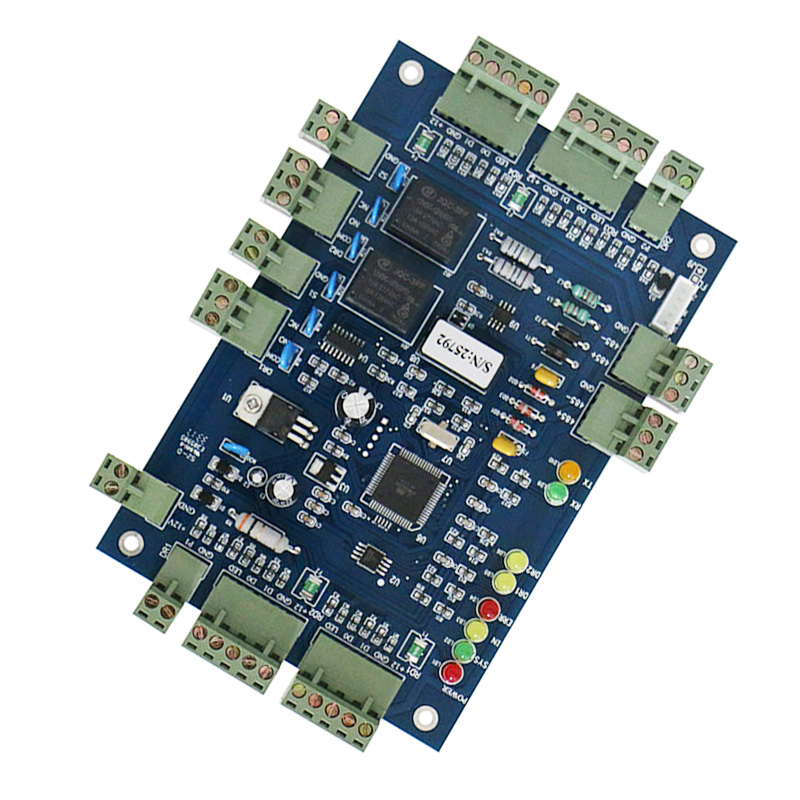

ACB-R02RS485 Access Control Board Panel Controller for Two Door Use Access Control System
Model No.: ACB-R02
What is Access Control?
Access control is focussed on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.

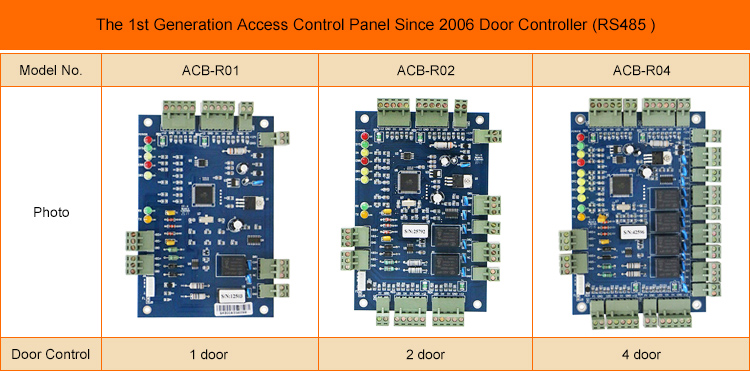

Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-R01 | ACB-R02 | ACB-R04 |
Communication | RS485 | RS485 | RS485 |
Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 4 doors, get in the door by swiping card, and get out door by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID ,EM,Mifare one etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pccs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-R01 | ACB-R02 | ACB-R04 |
Communication | RS485 | RS485 | RS485 |
Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button | Control 4 doors, get in the door by swiping card, and get out door by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola ,HID,EM,Mifare one etc) | ||
Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
Door Controled | 1 door | 2 doors | 4 doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
Operation Temperature | -40℃~70℃ | ||
Operation Humidity | 10-90 ％ RH ， No Condensation | ||
Q ' ty of users | 20,000 Users | ||
Q ' ty of Event Buffers(offline) | 100,000 event buffers | ||
Power interruption protection measure | High Speed Memory, Records never lose | ||
Max Distance from Reader to Controller | 100m (suggestion distance 80m) | ||
Max Distance between Controllers | TCP/IP: Depends on net coverage area | ||
Package included: | PCB board, software, manual, certificate. carton | ||
Alarm for long time door open, ilegal break in, intimidate | Yes | ||
Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 | ||
Complsive open and close door at long time | Yes | ||
Open door in remote distance | Yes | ||
Interlock | No | Yes | Yes |
Anti pass back and tail | Yes | Yes | Yes |
Multi-card open door | Yes | ||
Open long time at specified time | Yes | ||
Electronic map | Yes | ||
Urgency locking | Yes | ||
First card unlocking | Yes | ||
Unlock based on internal and external validation | Yes | ||
Keypad (card+passwor, supper password) | Yes | ||
Here are all available powerful functions for our ACB-R01, ACB-R02 and ACB-R04

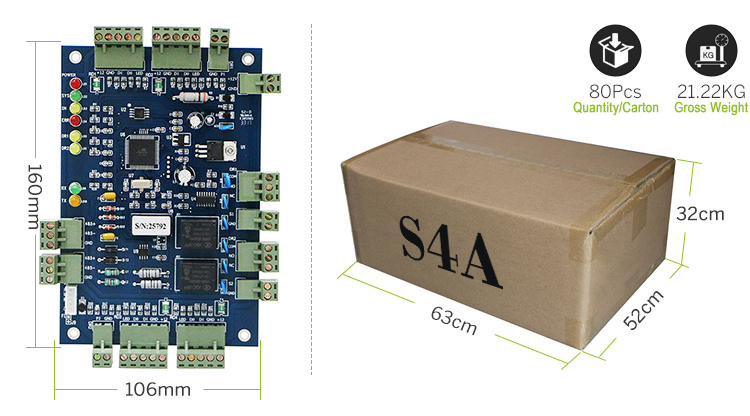

RS485 Access Control Board Panel Controller for Two Door Use | |||||
Model No. | Dimension | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
ACB-R02 | 160x106mm | 80pcs | 20.9KG | 21.22KG | 63x52x32cm |

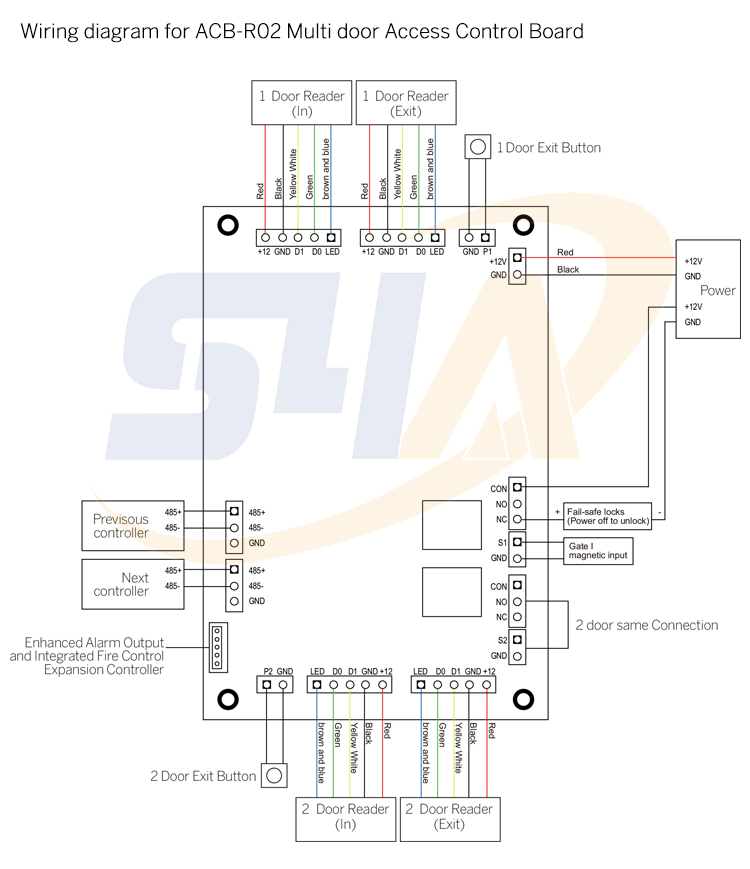

S4A User Manual_ACB-R02 RS485 Access Control Board Panel Controller for Two Door Use Access Control System
ACB-R01 RS485 Single door access Control Board with free software Control 1 door and 2pcs RFID reader

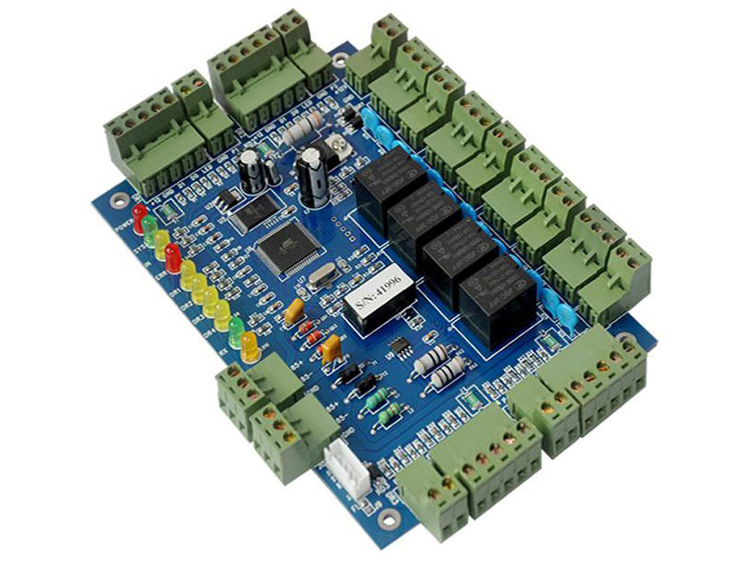

Four-door RS485 access Control board with free software to manage userscontrol 4doors, support 4pcs RFID access reader and a 4pcs exit button for In and Out
Work with ACB-R01, ACB-R02, ACB-R04 control board only
>Operating Voltage:DC9-DC12V>Relay:NO/NC/COM>Reading Distance:1 ~ 10cm
>Emergency Power Supply: USB powered>Applicable door thickness: 40-120mm>Storage capacity: Card/password/fingerprint a total of 300 groups
>Shell size:61x36x25mm>Wireless working frequency band:433-473Mhz>Number of supported channels:Use USB to set 50

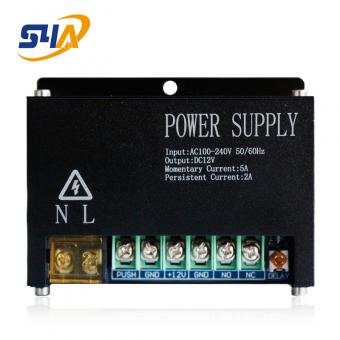

>SC-35-12: 12V3A>SC-35-24: 24V1.5A>SC-60-12: 12V5A>SC-60-24: 24V2.5A>SC-120-12: 12V10A>SC-120-24: 24V5A
