Categories
> Card type: EM Card
> Metal case, anti-vandal
> Digital backlit touch keypad
> Multi-function standalone access controller and reader,
> WG interface: WG26 Input / output
> Capacity: 2000 cards / codes
> Three accesses: card, pin, card + pin
Brand:
S4AItem NO.:
H4-WWaterproof Metal Access Control
Model No.: H4-W EM

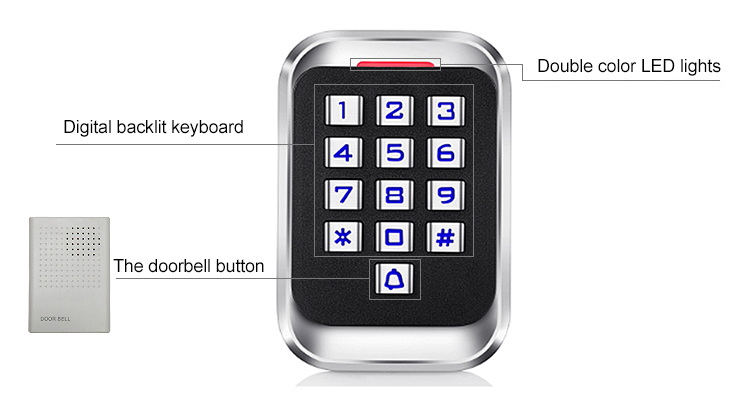

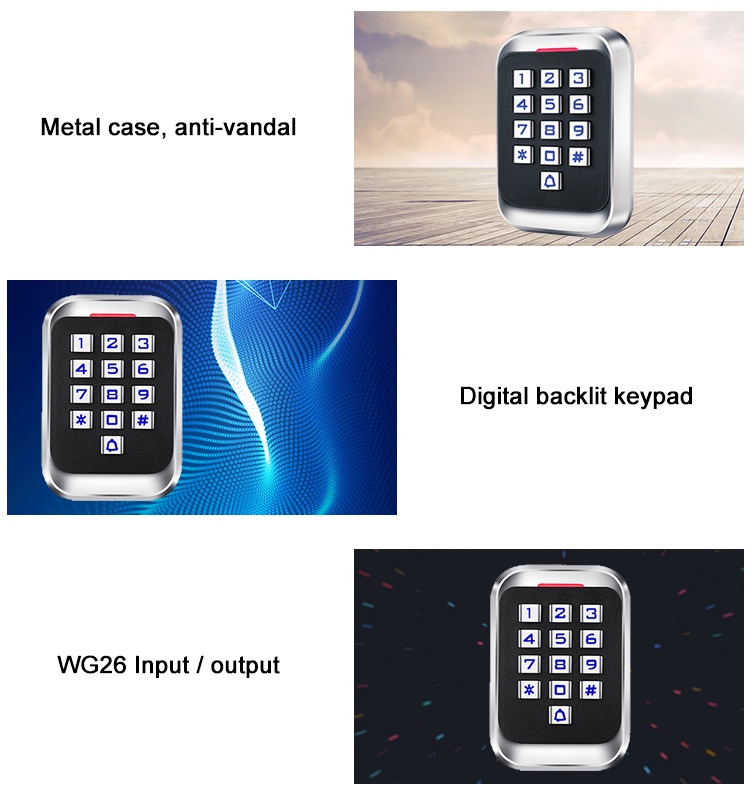

> Metal case, anti-vandal
> Digital backlit touch keypad
> Multi-function standalone access controller and reader,
> WG interface: WG26 Input / output
> Capacity: 2000 cards / codes
> Three accesses: card, pin, card + pin
Card type | EM |
Working voltage | DC12V±10% |
Reading Range | 3 ~ 6cm |
Humidity | 10% ~ 90% RH |
Door Opening Time | 0 ~ 99s(Adjustable) |
Sleep electricity | ≤30mA |
Ambient temperature | -45℃ ~ 60℃ |
Electric lock output | ≤3A |
Short-circuit Protect | ≤100μS |

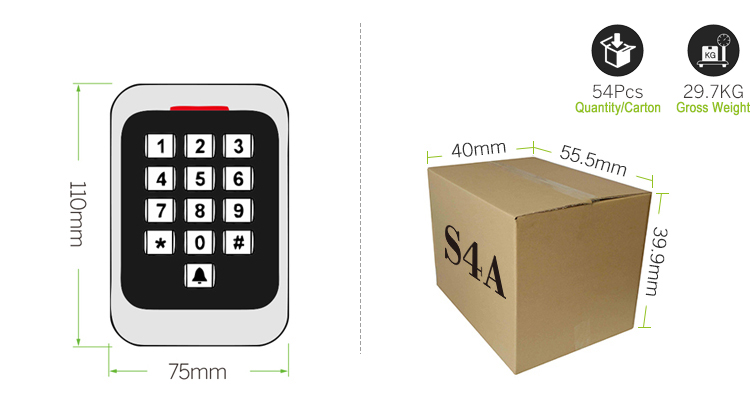

Dimensions | 118*81*26mm |
RFID Unlock Waterproof Standalone Metal Access Control | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
H4EM | 54pcs | 29.7KG | 55.5x39.9x40cm |
H4MF | |||
H4EM-W | 54pcs | 32.8KG | |
H4MF-W | |||
S4A User Manual H4_RFID Unlock Waterproof Standalone Metal Access Control
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
