> Card type: EM Card
> Multi-function standalone device can be used as the WG26 card reader
> Capacity: 2000 card users, 2000 PIN users
> Three-door open methods: card, code, card+code
> Backlit keypad: Can operate keyboard in dark nigh
Brand:
S4AItem NO.:

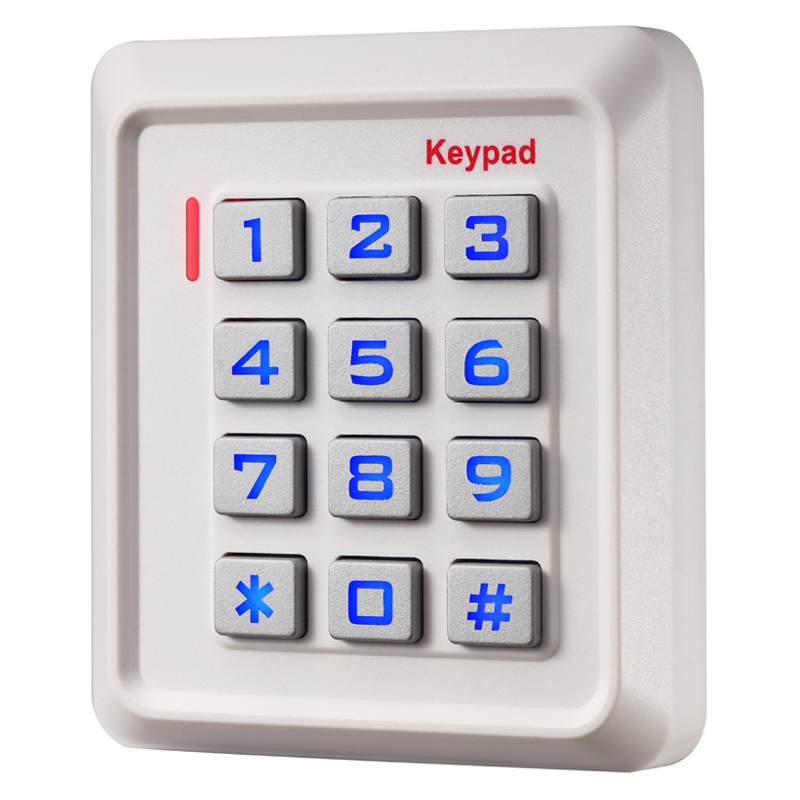

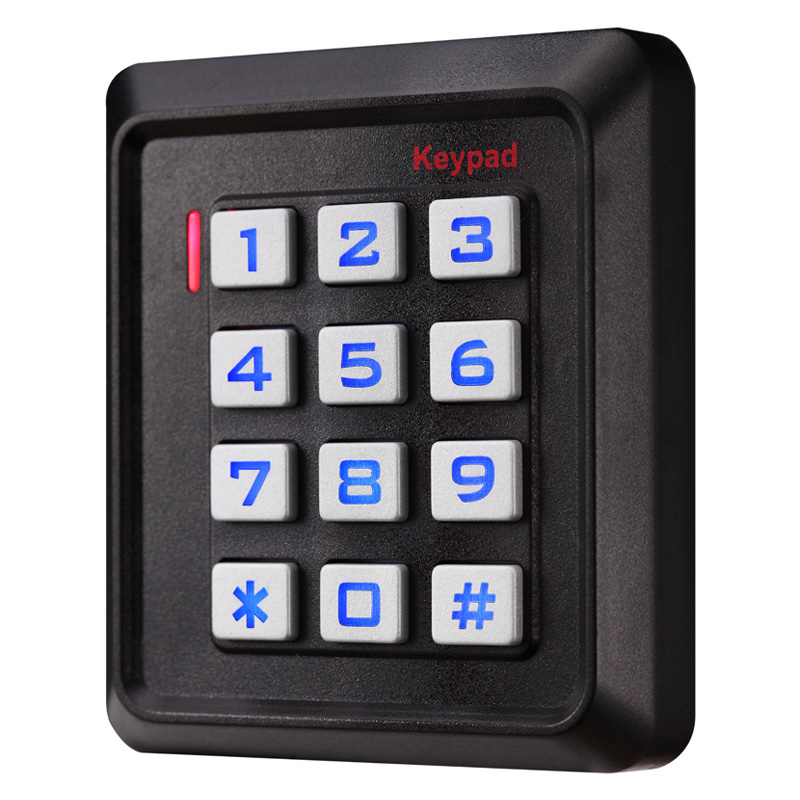

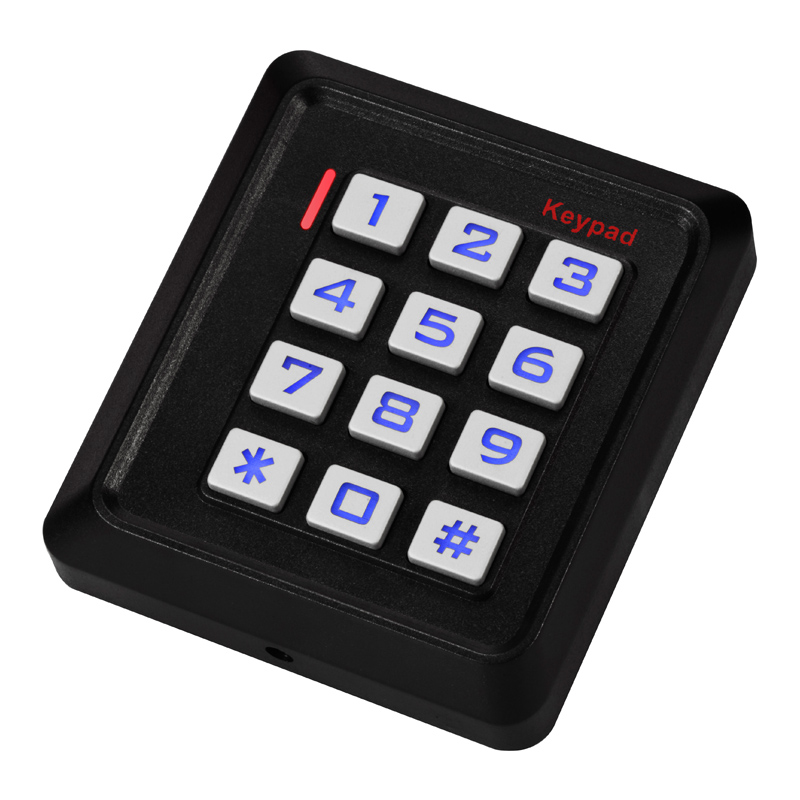

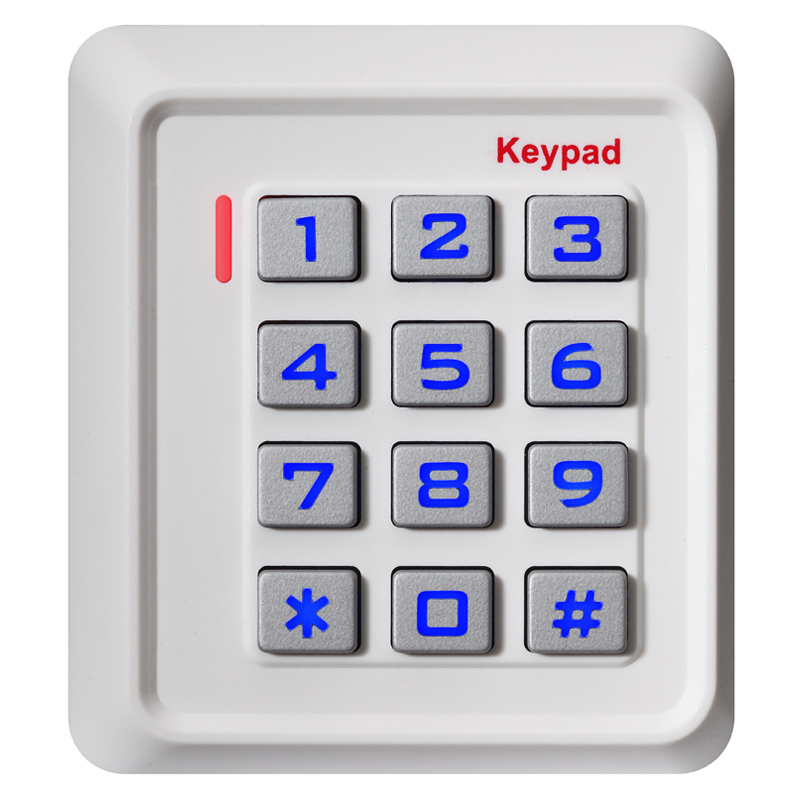

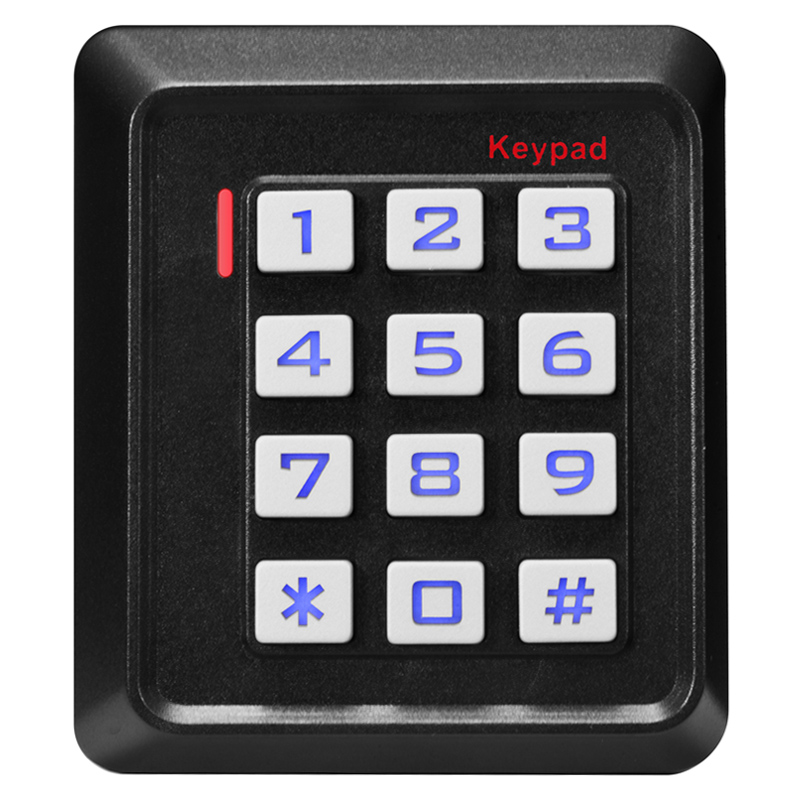

K30RFID 125KHz EM card reader keypad access control
Model No.: K30 EM
> Multi-function standalone device, can be used as a WG26 card reader
> Capacity: 2000 card users, 2000 PIN users
> Three-door open methods: card, code, card+code
> Backlit keypad: Can operate keyboard in the dark night
Card type | EM |
Capacity | 2000 |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

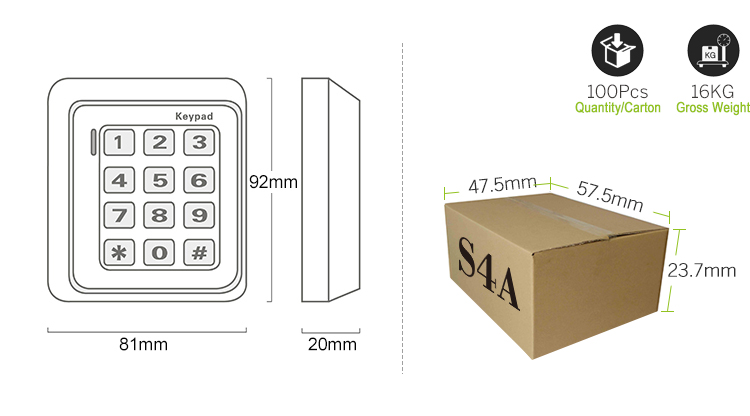

Dimension | 92*81*20mm |
Rfid 125khz Em Card Reader Keypad Access Control | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
K30EM | 100pcs | 16KG | 57.5x47.5x23.7cm |
K30MF | 100pcs | 16KG | |
S4A User Manual K30_Rfid 125khz Em Card Reader Keypad Access Control
> Waterproof conforms to IP66 (Wireless Keypad)> Communication frequency: 433MHz> 600 PIN/card users> Communication distance: 50m Max> Tri-color LED status display
> Card type: EM Card> Access Control Keypad Containing 800 users > 800 cards, a 'Personal PIN' goes alone with each card> Card Reading Distance: 5~15cm> Voltage: 12VDC
> Card type: EM Card> Capacity: 2000 users> Working Voltage: DC12-24V> Card Reading Distance: 1~3cm> Dimension: 114x75x16mm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~5cm> Open Mode: Card or Access PIN
> Card type: EM Card> User Capacity: 1000 users (Standard)> User Capacity: 6000 users (Optional)> Read 125KHz EM Card (Standard)> Read 13.56MHz Mifare Card (Optional)> Open Mode: Card or PIN> Card reading distance: 1~5cm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~15cm> Open Mode: Card or Access PIN
> Card type: EM Card> ABS single door access control
> Card type: EM Card > Multi-function standalone device can be used as a WG26 card reader > Capacity: 2000 card users, 2000 PIN users > Three-door open methods: card, code, card+code > Backlit keypad: Can operate keyboard in the dark night
