Plastic Exit Button

/Plastic Access Exit Button with Back Box

New Products

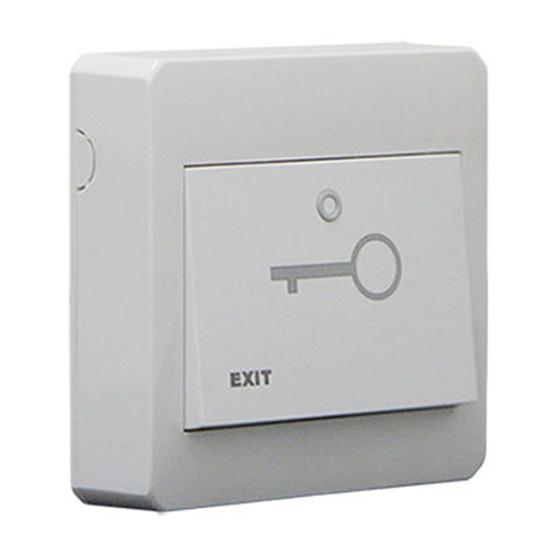

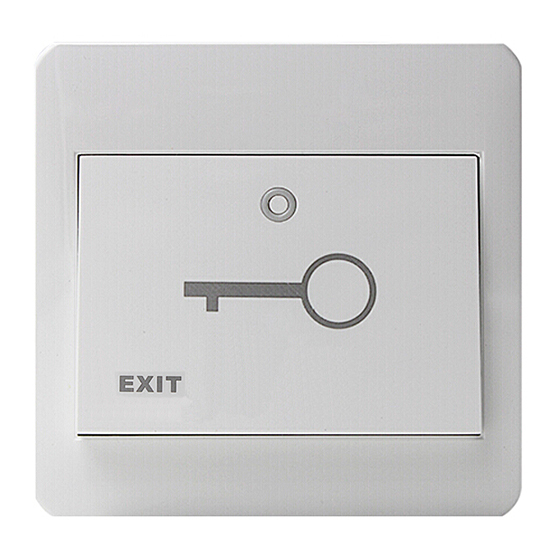

Plastic Access Exit Button with Back Box

Dimensions: 86x86x25mm

Brand:
S4A
Item NO.:
EB-18D

Inquire Now

Specifications

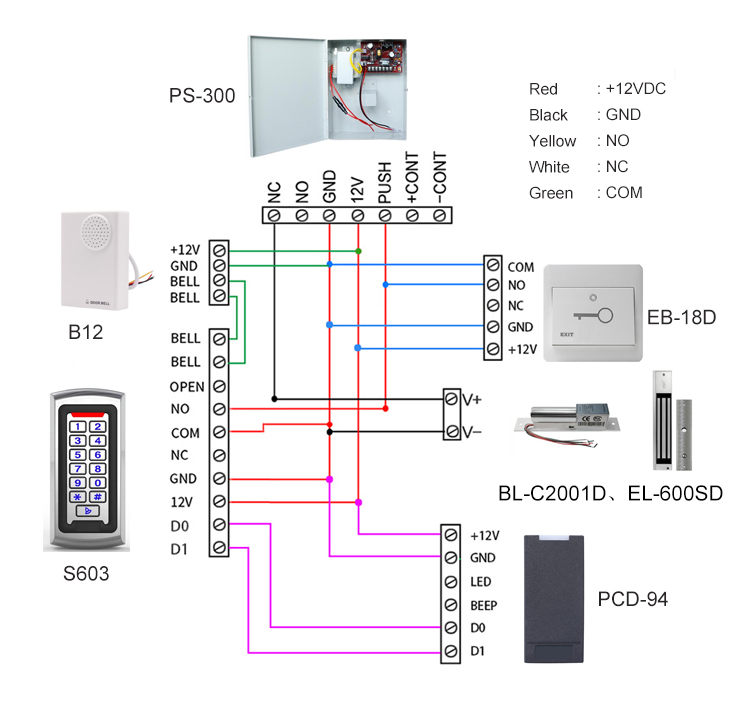

Wiring Diagram
Download

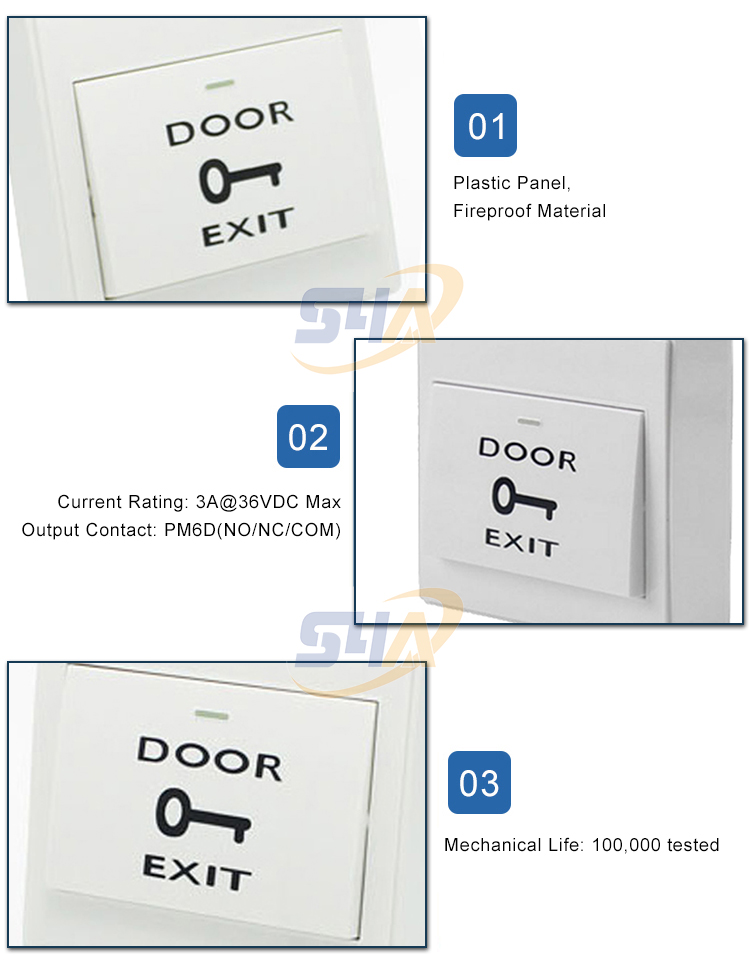

Plastic Access Exit Button with Back Box

Model No: EB-18D

Dimension	86L86W25H (mm)
Standard Structure	Plastic
Panel Material	Plastic Panel, Fireproof Material
Current	3A@36VDC Max
Output Contact	PM6D(NO/NC/COM)
Mechanical Life	100,000 tested
Operating Temperature	-10℃ ~ 55°C (14°F-131°F)
Operating Humidity	0-95% (non-condensing)
Weight	0.085kg
Packing Quantity (PCS/CTN)	200pcs/ctn
Package Size	514625cm
Gross Weight	17kg

Plastic access Exit Button with backbox-EB-18D

Back Button

S4A_Datesheet_Plastic Access Exit Button with Back Box

Download

Related Tags : Back Button Exit Buttons Plastic Buttons Push To Exit Button
