Outswinging Waterproof Door RFID Access Control System with Keypad ID Card for Card Access System

> Card type: EM Card

> Metal case, backlit keypad

> Waterproof,conforms to IP66

> One relay, 1000 users (990 Normal Users + 10 Visitor Users)

> 3 access modes: Card, PIN, Card + PIN

> Remote Control for optional

  • Brand:

    S4A
  • Item NO.:

    K10-R
  • Specifications

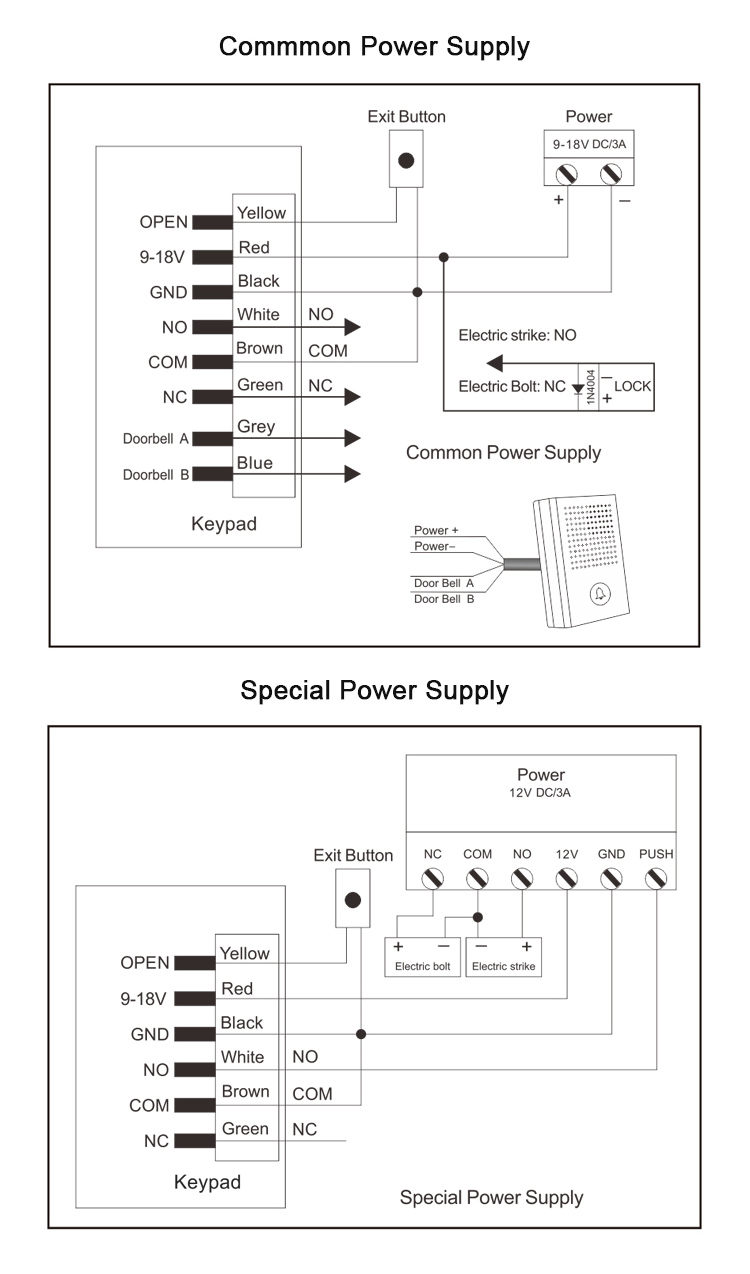

  • Wiring Diagram
  • Package
  • Download

Outswinging Waterproof Door RFID Access Control System with Keypad ID Card for Card Access System

Model No.: K10-R EM


What is access control keypad?

Access control keypad locks offer basic access control capabilities. Typically programmed by visiting the door, these locks provide security using keypad only. Keypad locks come in a variety of forms, including the Yale nexTouch lock, which has a digital touch screen similar to a smartphone.


K10-R is a single entry standalone Access Control with integrated keypad and card reader.

It is an easy to install and operate device, with doorbell and support remote control for open the door.

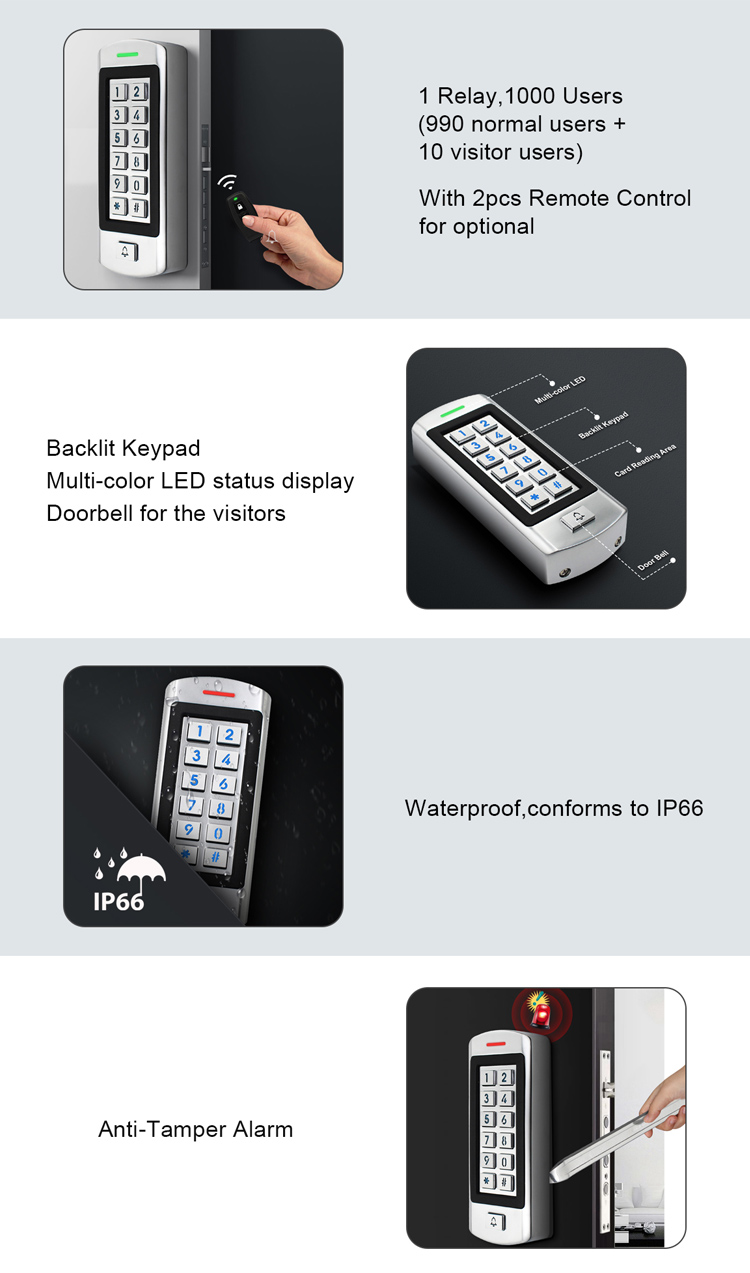

Features:

> Metal case, backlit keypad

> Waterproof,conforms to IP66

> One relay, 1000 users (990 Normal Users + 10 Visitor Users)

> 3 access modes: Card, PIN, Card + PIN

> Card type: 125KHz EM card

> PIN length: 4~6 digits

> Anti-tamper alarm

> With Doorbell for visitors

> Remote Control for optional


User Capacity

1000 Cards/PINS (990 Normal Users + 10 Visitor Users)

Operating Voltage

9~18V DC

Idle Current

50mA

Active Current

80mA

Keypad

12 Key (2*6)

Proximity Card Reader

EM

Radio Technology

125 KHz Industry Standard Proximity Card

Read Range

2-6 cm

Wiring Connections

Relay Output, Exit Button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0-99 Seconds (5 seconds default)

Lock Output Load

3 Amp Maximum

Environment

Outdoor

Operating Temperature

-40℃~ 60℃ (-40°F ~ 140°F)

Operating Humidity

10%RH-90%RH Non-Condensing

Physical

Zinc-Alloy Enclosure

Surface Finish

Powder Coat

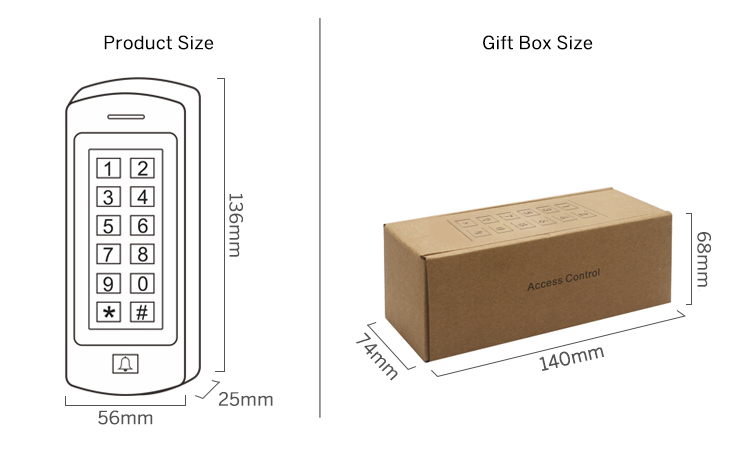

Dimensions

136L x 56W x 25H (mm)

Unit Weight

490g

Shipping Weight

550g


card access system

card access system

card access system

S4A Datesheet_Outswinging Waterproof Door RFID Access Control System With Keypad ID Card For Card Access System
