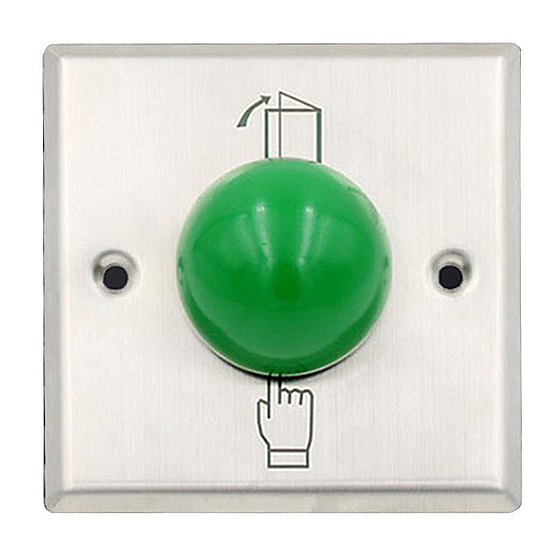

Mushroom Stainless Steel Exit Button
Model No: EB-86M
EB-40M | 115 X 40 X 25mm |
EB-70M | 115 X 70 X 25mm |
EB-86M | 86 X 86 X 25mm |
Standard Structure | Stainless Steel Panel, Steel Button |
Panel Material | 304 Stainless Steel, Wire Drawing Finished |
Current | 3A@36VDC Max |
Output Contact | NO/COM |
Optional Accessories | EB-50 |
Mechanical Life | 500,000 tested |
Operating Temperature | -10℃ ~ 55°C (14°F-131°F) |
Operating Humidity | 0-95% (non-condensing) |
Packing Quantity (PCS/CTN) | 100pcs/ctn |
Carton Package Size | 51*46*25cm |
Dimension: 115x40mm
Dimension: 115x70mm
Dimension: 80x30x25mm
Dimension: 80x30x25mm
Dimension: 53x53x25mm
Dimension: 53x53x25mm
>115*70mm; NO/NC/COM>Power Supply: DC12V>Output Contact : NO/NC/COM
>86*86mm; NO/NC/COM>Power Supply: DC12V>Panel Material:0.8mm Thick Stainless Steel
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
