M40 Mortise Button Box
> Dimension: 115x40mm, suit the 40 plate.
ZF-800RFID Metal Access Control
> Card type: EM Card
> Embedded design with mini size
> User capacity: 3000 cards.
Brand:
S4AItem NO.:

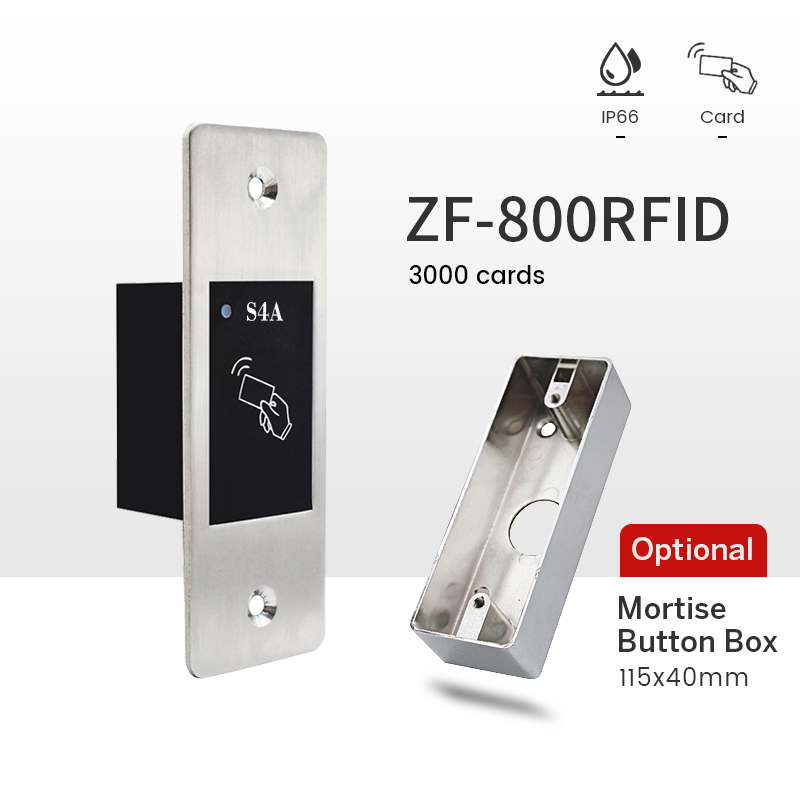

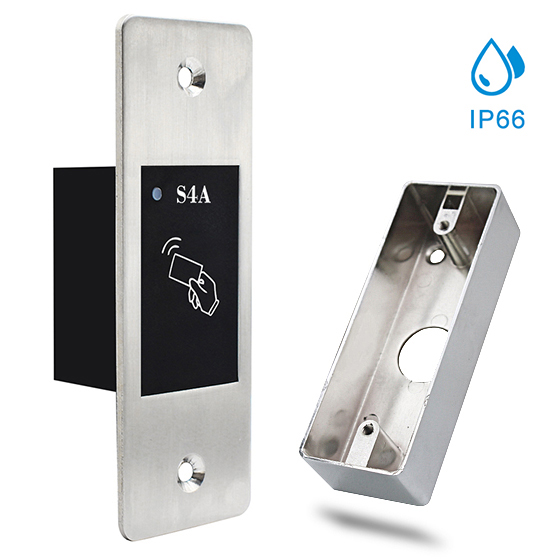

ZF-800RFID+M40Metal Access Control with Mortise Button Box
Model No: ZF-800RFID+M40

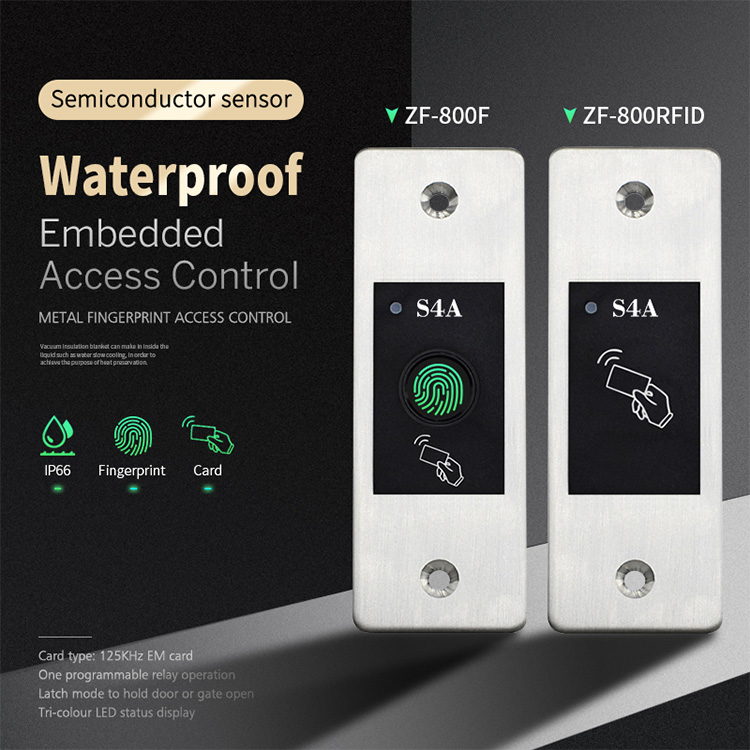

ZF-800RFID Metal Access Control

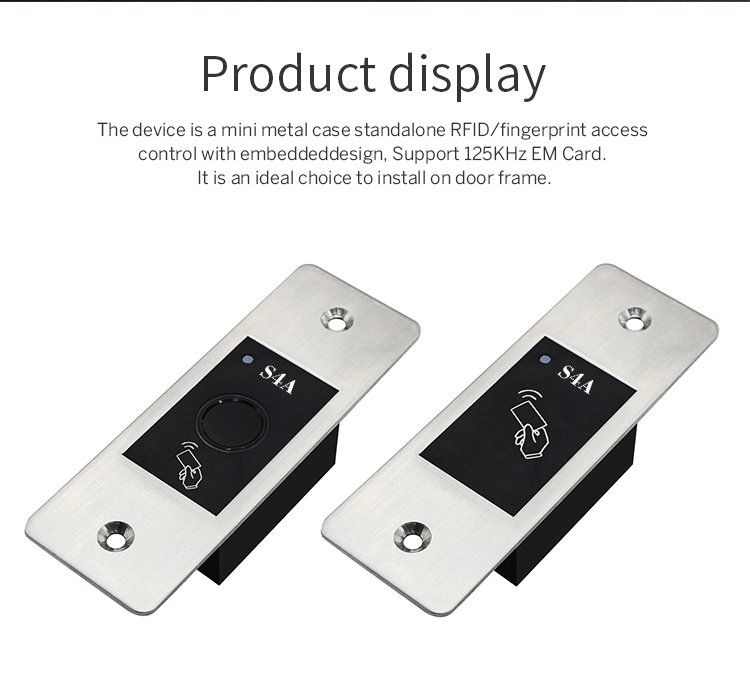

The device is a mini metal case standalone RFID/fingerprint access control with embedded design, Support 125KHz EM Card. It is an ideal choice to install on door frame.

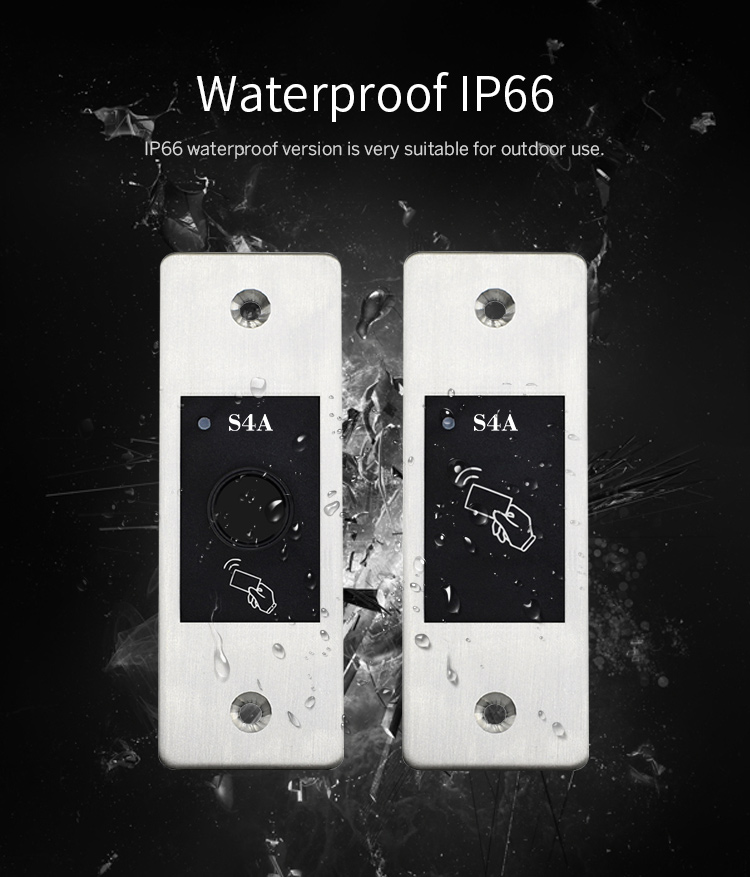

lP66 waterproof is very suitable for outdoor use. It supports master card and master fingerprint for easy operation.
Features:
> Embedded design with mini size
> Metal case and waterproof, conform to lP66
> User capacity: 3000 Cards.
> Card type: 125KHz EM Card
> One programmable relay operation
> Latch mode to hold door or gate open
> Tri-colour LED status display
User Capacity | 3000 Cards |
Operating Voltage | DC9~24V |
Idle Current | ≤25mA |
Active Current | ≤100 |
Proximity Card Reader | EM |
Radio Technology | 125KHz Proximity Card |
Read Range | 2cm |

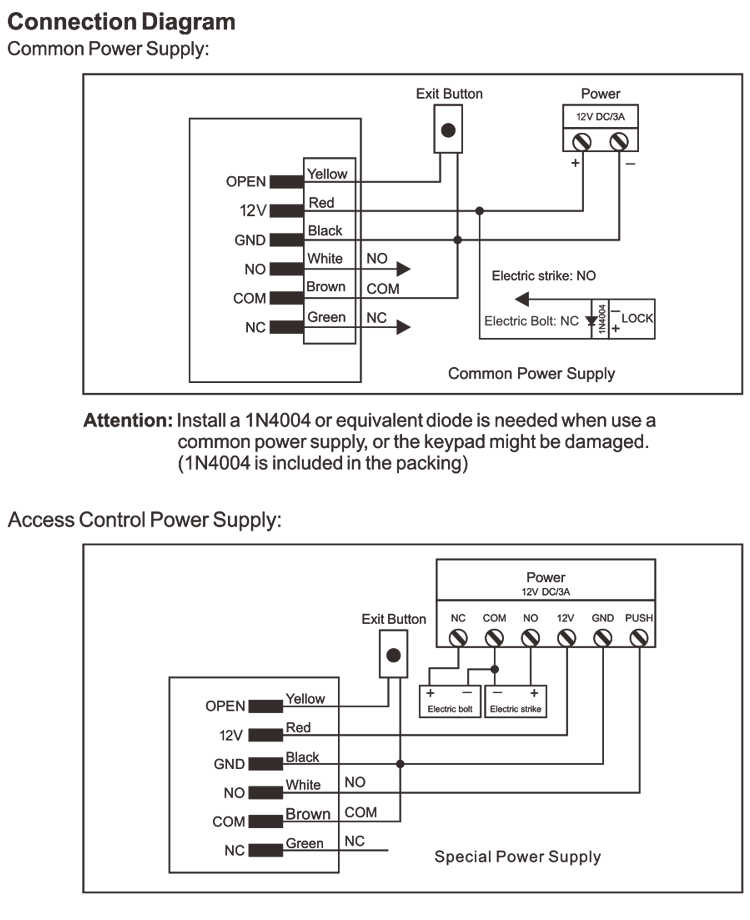

Wiring Connections | Relay Output, Exit Button |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Environment | Meets lP66 |
Operating Temperature | -25℃~60℃ (-13°F ~140°F) |
Operating Humidity | 20%RH-98%RH |

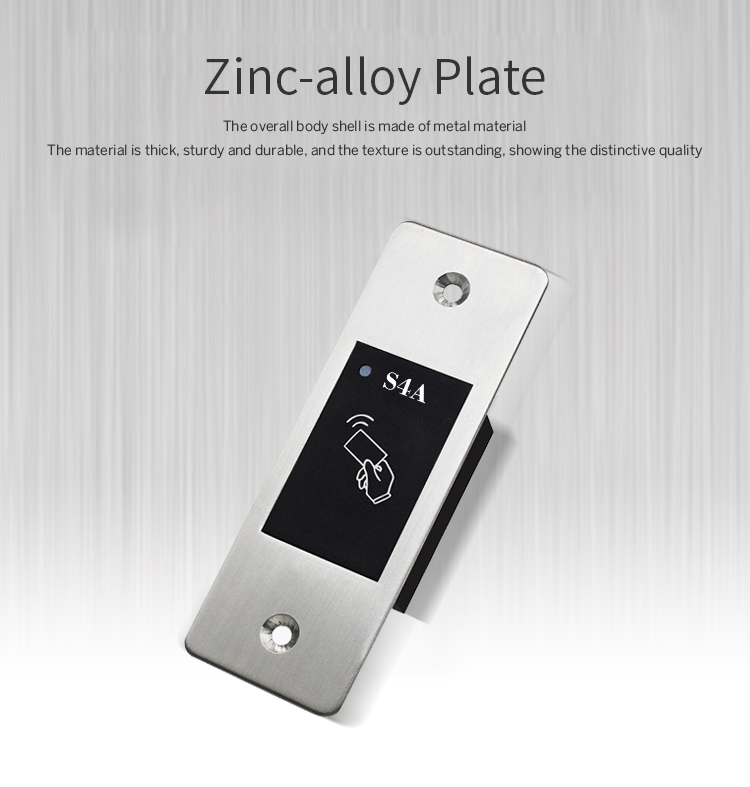

Physical | Zinc-alloy plate |
Colour | Silver & Black |

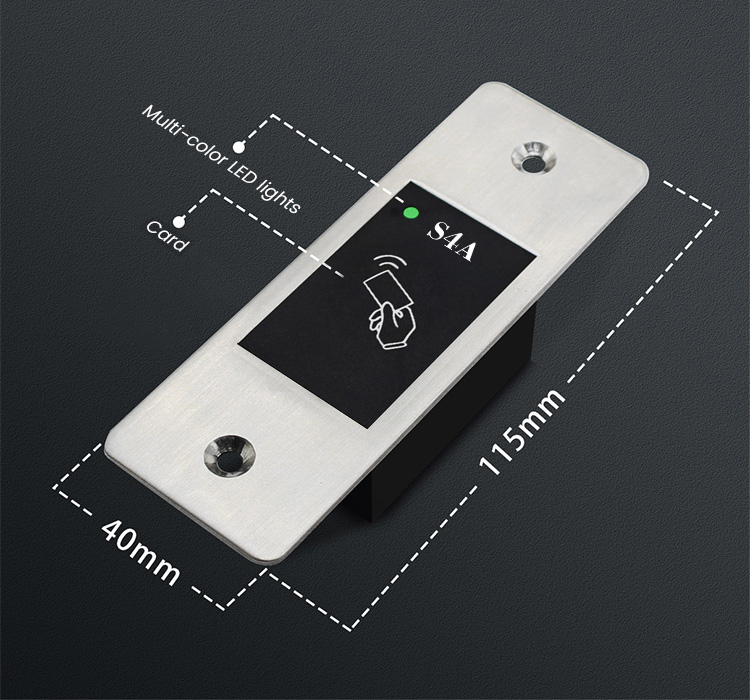

Dimensions | L115xW40xH30mm |
Unit Weight | 105g |
Shipping Weight | 185g |

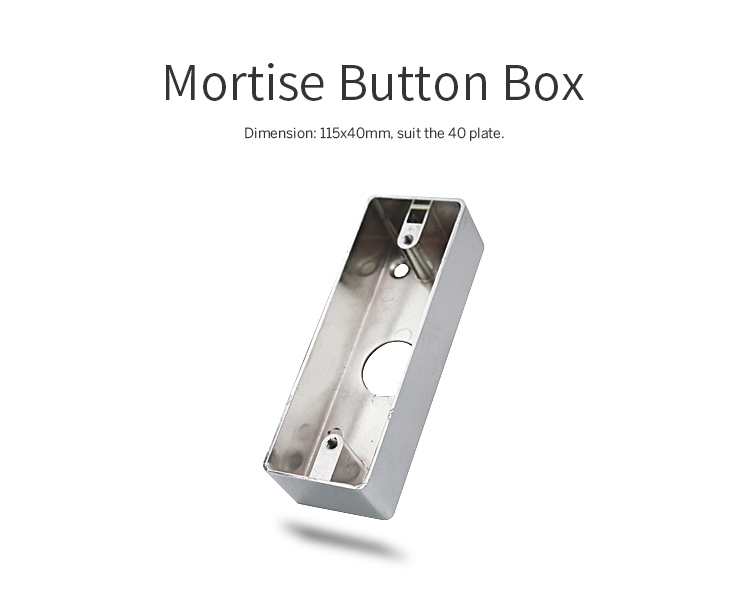

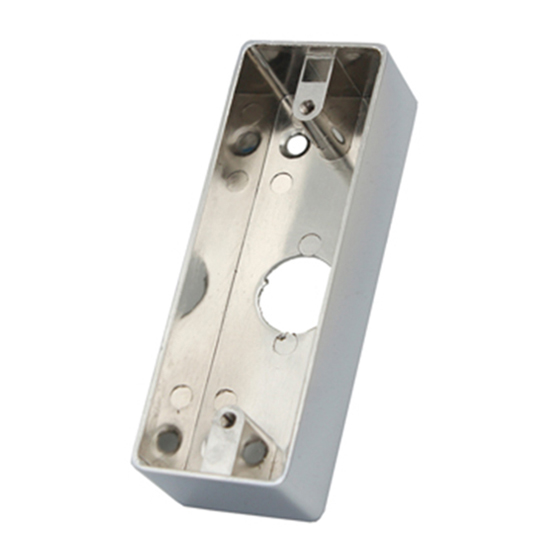

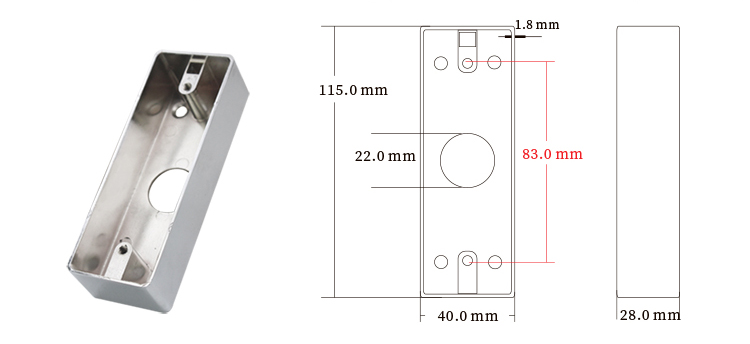

M40 Mortise Button Box
Dimensions | 115*40mm |
Standard Instruction | zinc alloy material and surface is coated with chrome |
