> Material Selection: High Strength Aluminum, Sandblast Finished
> Suitable for Door: In-swing Door
> Opening Mode: 90° Degress Door
> Finished for Shell: Anodized aluninum
Brand:
S4AItem NO.:

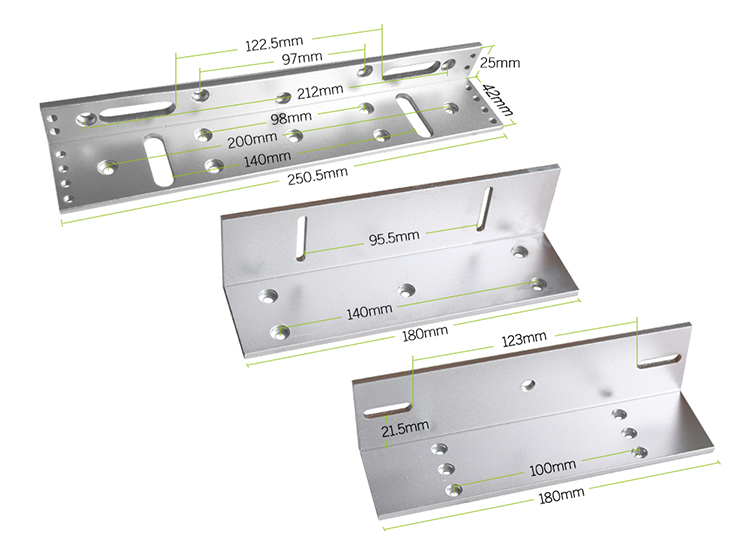

LB-800 + ZB-800LZ Bracket is for Inward Door
Model No.: LB-800 + ZB-800

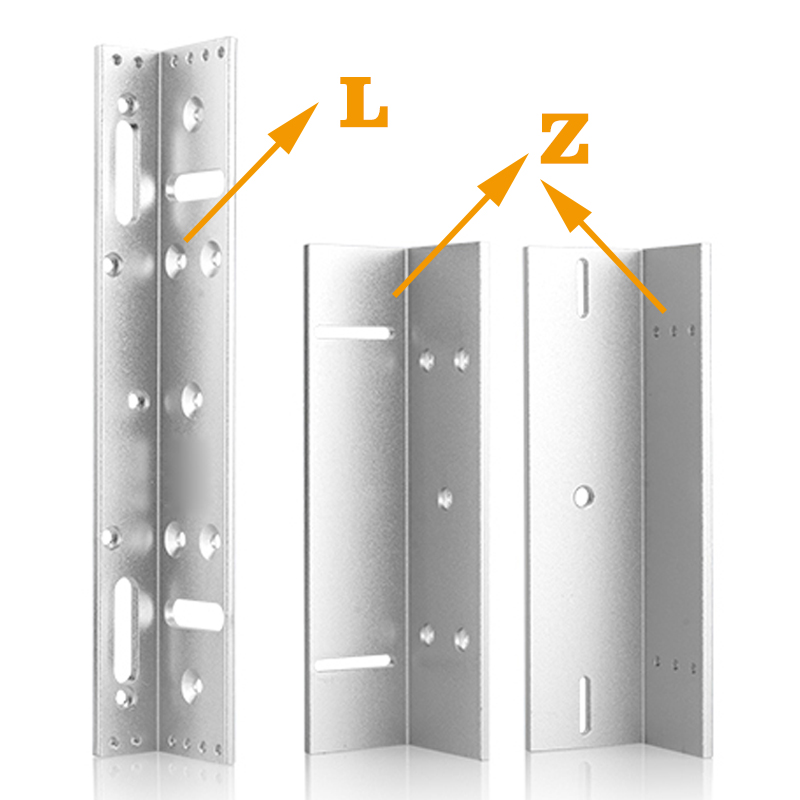

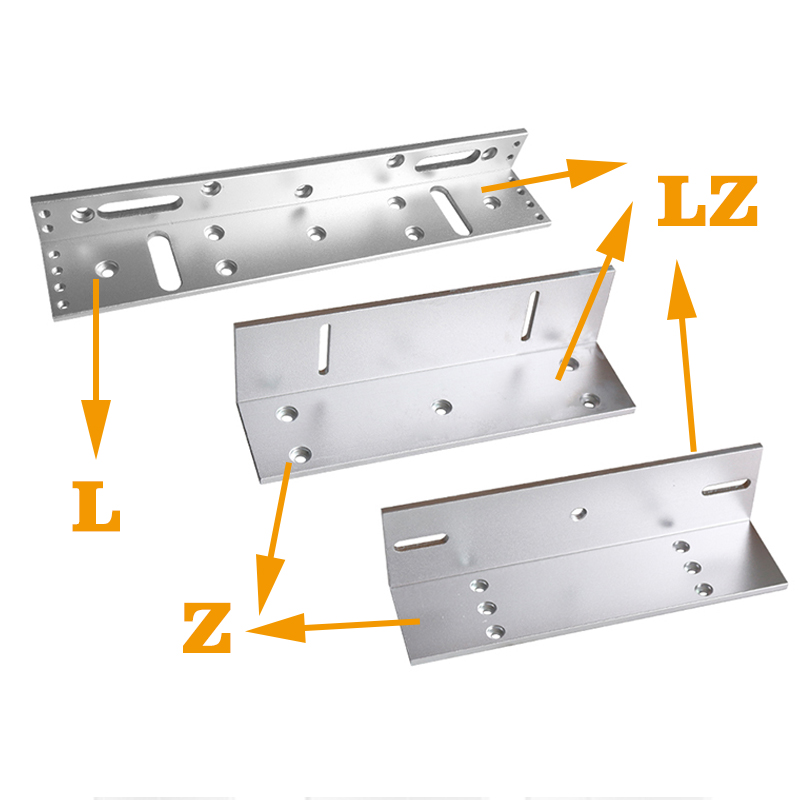

What is LZ Bracket?

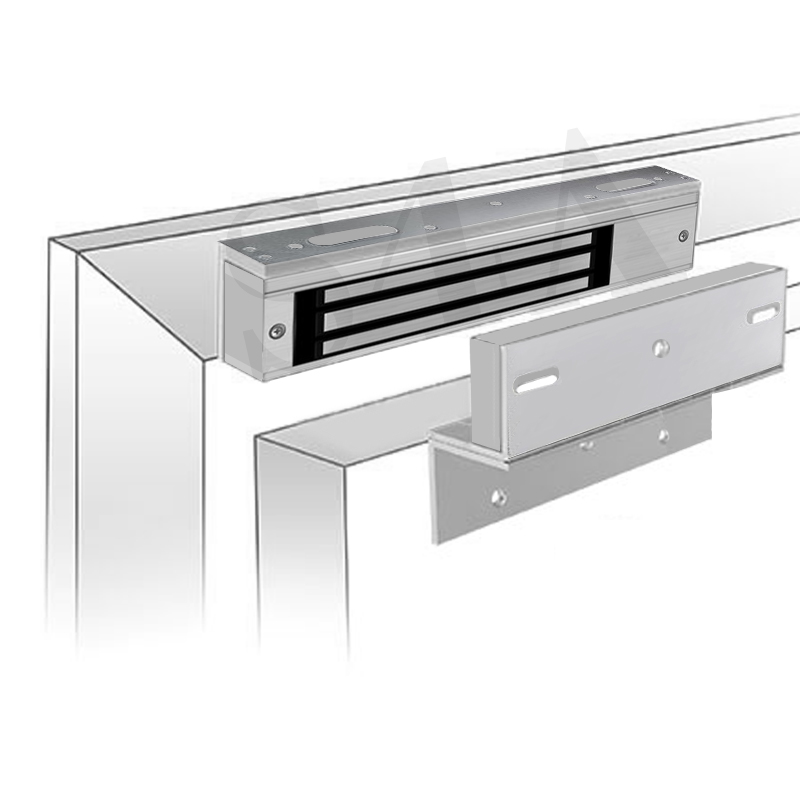

An LZ bracket is an accessory used to mount electromagnetic locks for access control door security. LZ brackets comprise of a combination of 3 brackets used to mount different types of electromagnetic locks and its armature plate.

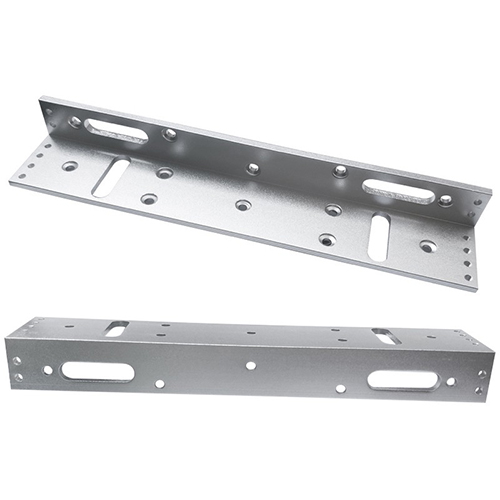

Model No. | LB-350, LB-600, LB-800, LB-1200 |
Material Selection | High Strength Aluminum, Sandblast Finished |
Suitable for Door | In-swing Door |
Opening Mode | 90° Degrees Door |
Finished for Shell | Anodized aluminum |

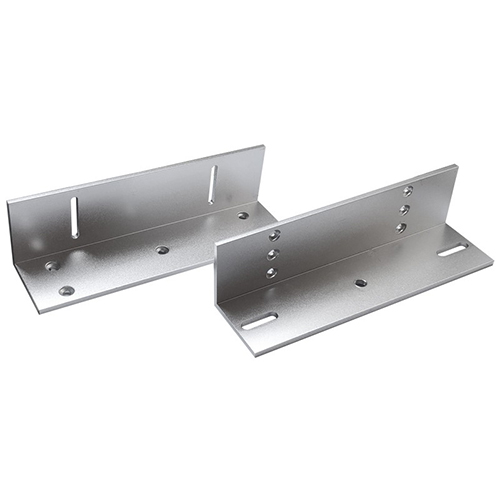

Model No. | ZB-350, ZB-600, ZB-800, ZB-1200 |
Material Selection | High Strength Aluminum, Sandblast Finished |
Suitable for Door | In-swing Door |
Opening Mode | 90° Degrees Door |
Finished for Shell | Anodized aluminum |
LZ Bracket is for Inward Door | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
LB-800 + ZB-800 | 30 PC | 10.02 KG | 43×30×20 CM |
S4A Datesheet_LZ Bracket is for Inward Door
> LED, Lock sensor and Buzzer> 100% Copper Single door 350KG=800lbs > Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Lock Size: 285Lx55Wx27.5H(mm)
> Without Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> With Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> Without indicator lights> Voltage: DC12V or DC24V> Current Draw: 12V/480mAx2 24V/240mAx2> Holding force: 350KGx2 (800LBSx2)
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> With LED (Red only)> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED and Lock sensor> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED, Lock sensor and time delay> Single door 350KG=800lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Current Draw: 12V/500mA 24V/250mA
> LED, Lock sensor and Buzzer> 100% Copper Single door 350KG=800lbs > Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Lock Size: 285Lx55Wx27.5H(mm)
> Without Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> With Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)
> Without indicator lights> Voltage: DC12V or DC24V> Current Draw: 12V/480mAx2 24V/240mAx2> Holding force: 350KGx2 (800LBSx2)
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> With LED (Red only)> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED and Lock sensor> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)
> Built in LED, Lock sensor and time delay> Single door 350KG=800lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 380KG(800Lbs)> Current Draw: 12V/500mA 24V/250mA
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
