> Metal structure design, anti-vandal
> Digital backlit keyboard
> All-in-one, WG26 output/input
Brand:
S4AItem NO.:

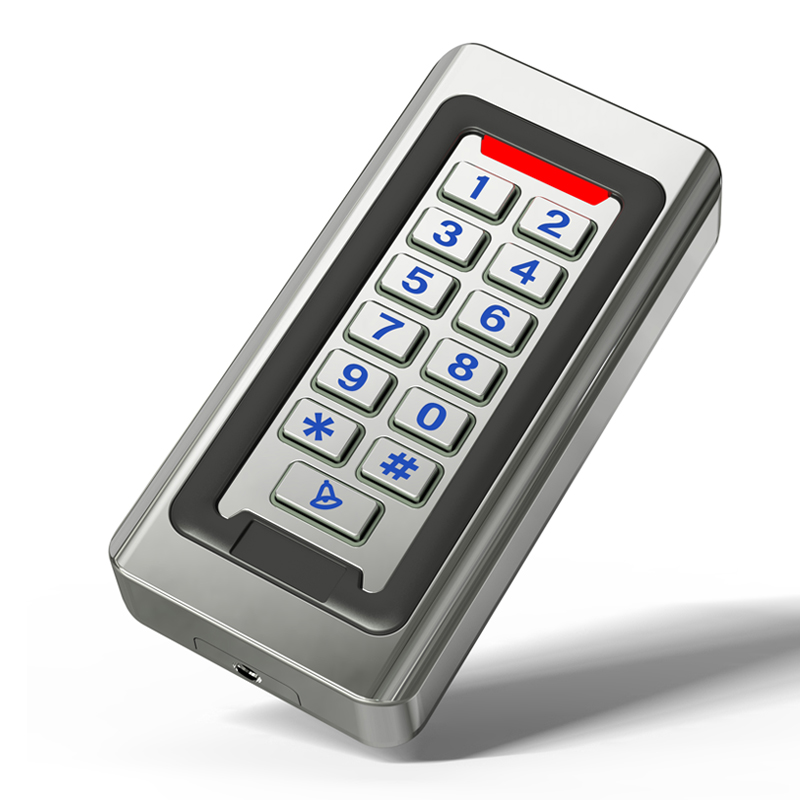

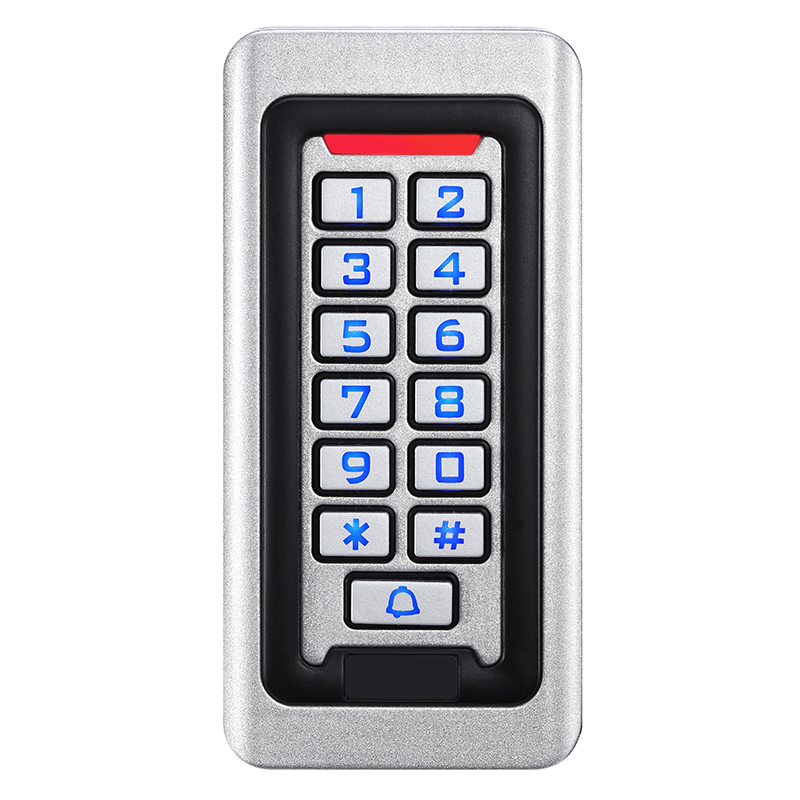

S602-WIP68 Standalone Metal Keypad Access Controller System
Model No.: S602-W EM, MF
Card type | EM or MF |

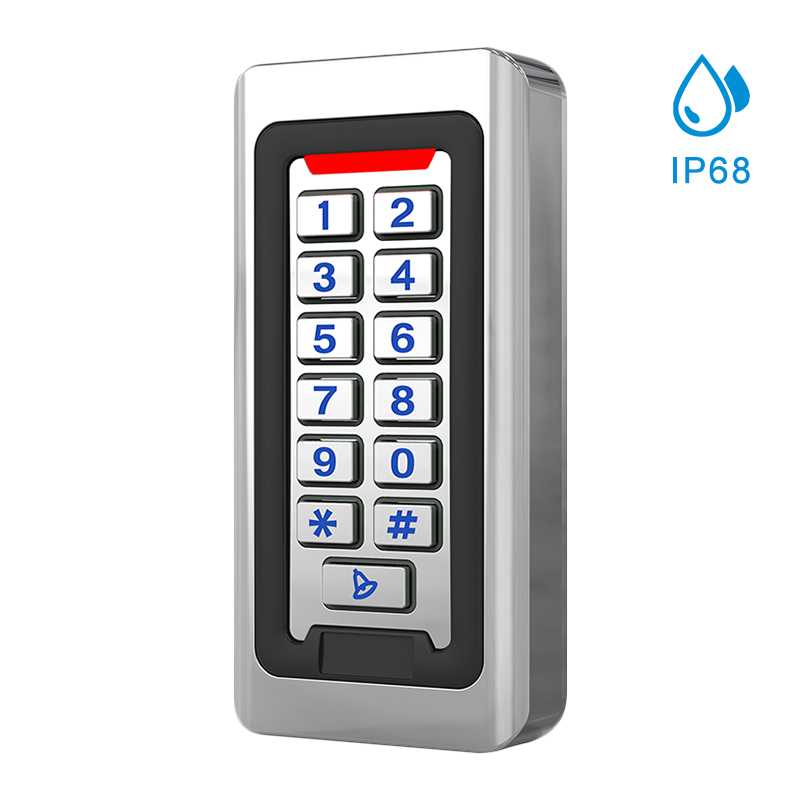

Waterproof degree | Non-Waterproof(S602) / IP68(S602-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%~90% |
Lock output | ≤3A |
Working voltage | DC12V±10% |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5~8cm |
Ambient temperature | -45℃~60℃ |
Door Opening Time | 0~99s(Adjustable) |

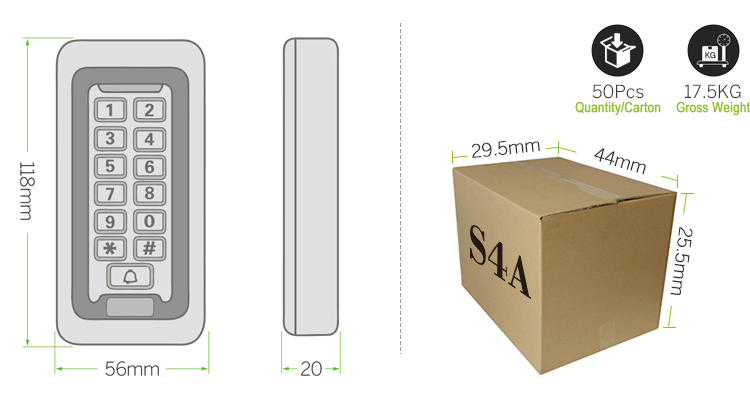

Dimension | 118*56*20mm |
S4A Datasheet_IP68 Standalone Metal Keypad Access Controller System
