> Dimensions: 69x60x15mm
> Operating temp: 5A/24V
> Material: High quality elements with superb design
> Suitable for Door: Fail-safe electric locks with signal output
> Output Capability: Applied to double-door interlocking
Brand:
S4AItem NO.:

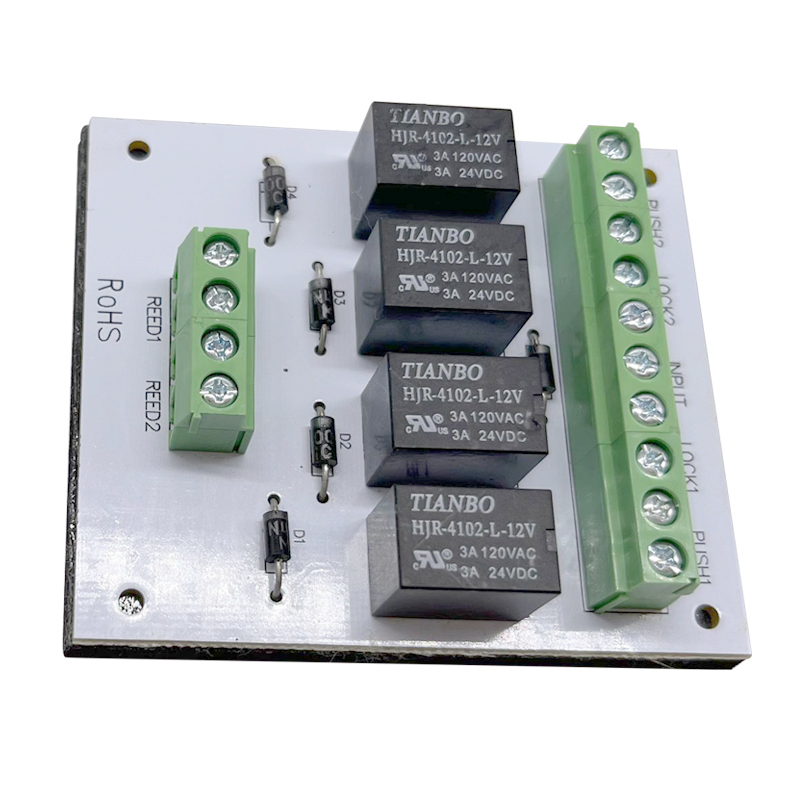

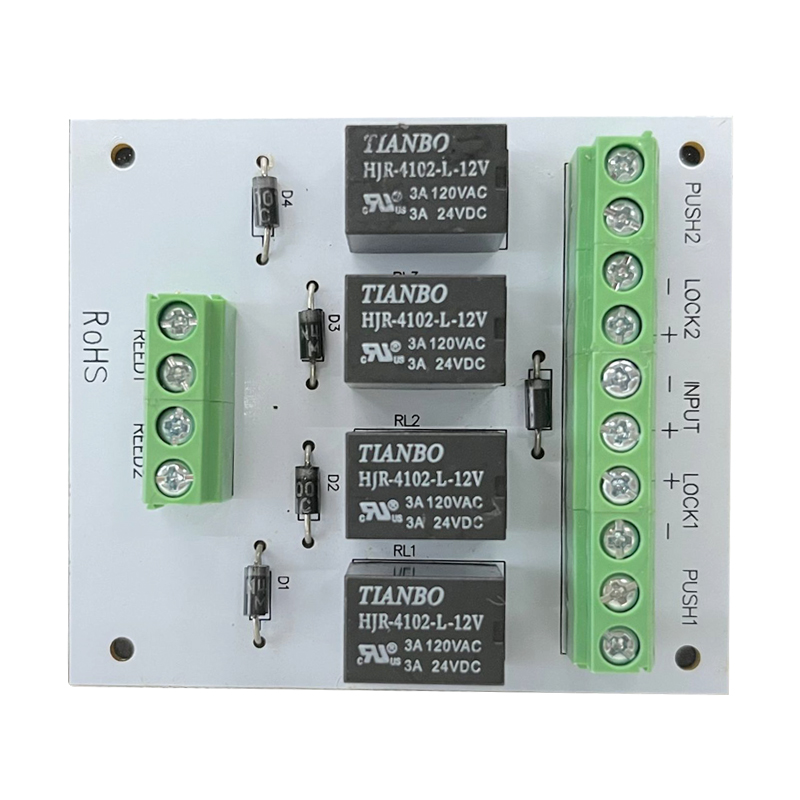

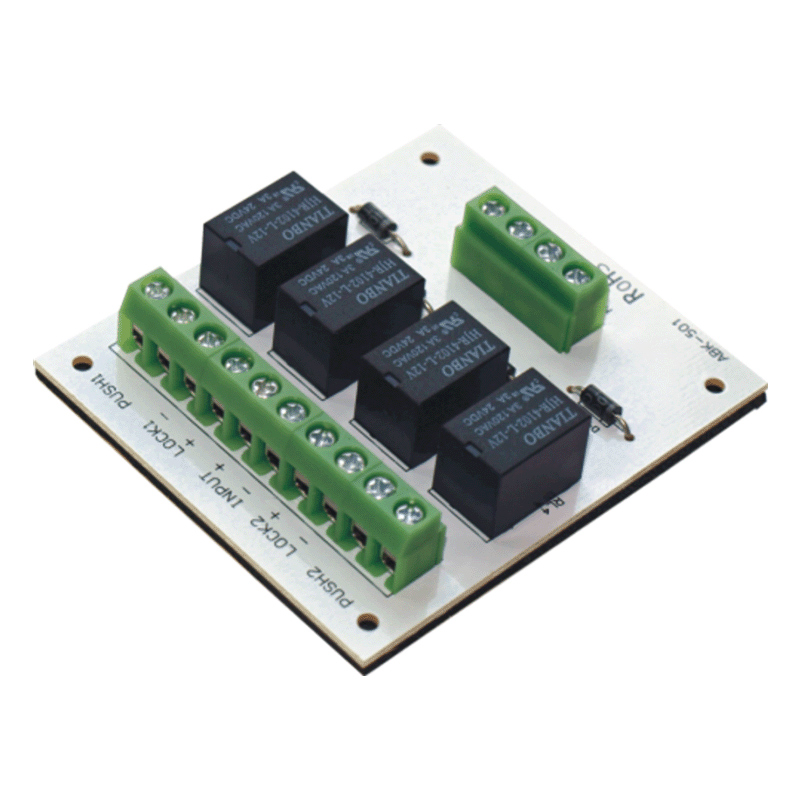

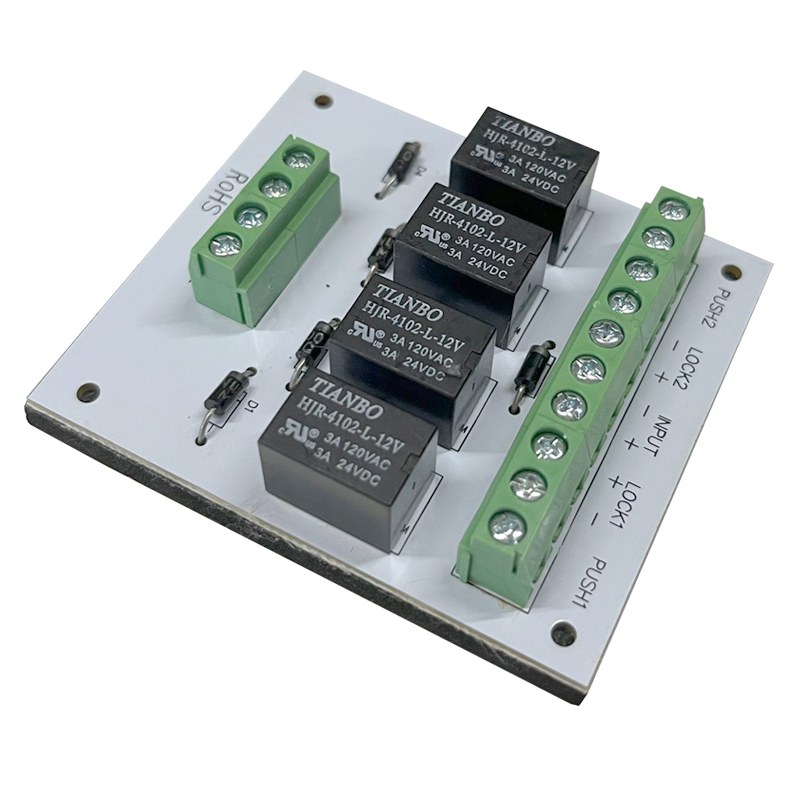

S4A-501Interlock Access Control Relay Module for 2 Doors
Model No.: S4A-501
What is Interlocking relay module?
Interlocking relay module is an implement for two doors egress controlling ,such as bank, prison ect. When the first door opens and close properly, the second door will open. Interlocking relay module is the ideal choice for the purpose of interlocking door control project, which is easy to be installed, professional and durable and create a more safe occasion for you.
Dimensions | 69Lx60Wx15H(mm) |
Material | High quality elements with superb design |
Suitable for Door | Fail-safe electric locks with signal output |
Output Capability | Applied to double-door interlocking |
Operating temp | -20℃～70℃ |
Max. overload | 5A/24V |
Weight | 0.07kg |
Interlock Access Control Relay Module for 2 Doors | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
S4A-501 | 100pcs | 7KG | 54.3x13.5x19.3cm |
S4A User Manual S4A-501_Interlock Access Control Relay Module for 2 Doors
