>Working voltage: DC9V 1*6F22 battery
>Standby current: less than 10uA
>Alarm current: ≤15mA
Brand:
S4AItem NO.:

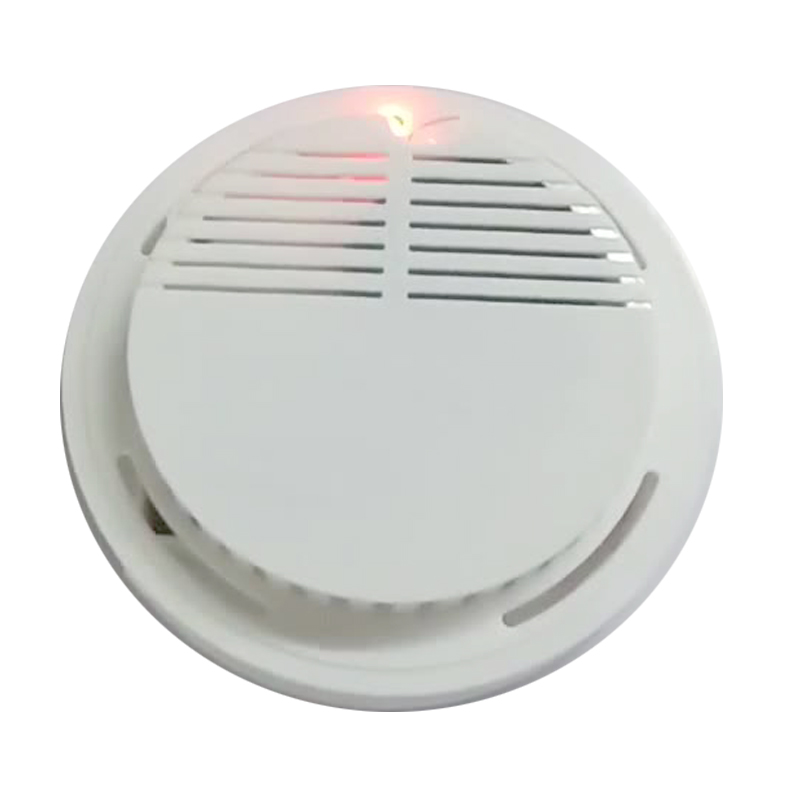

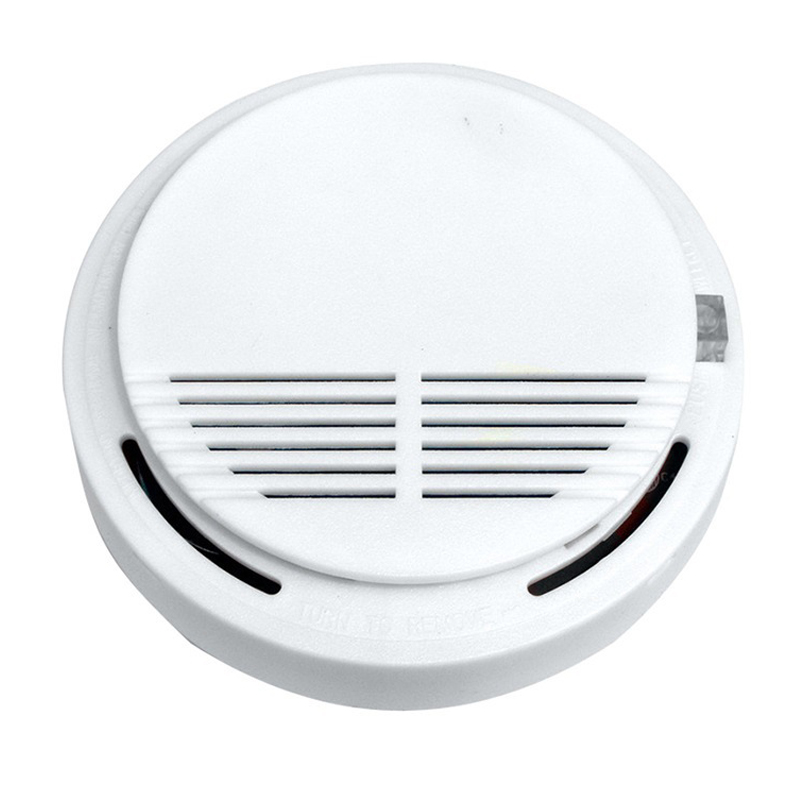

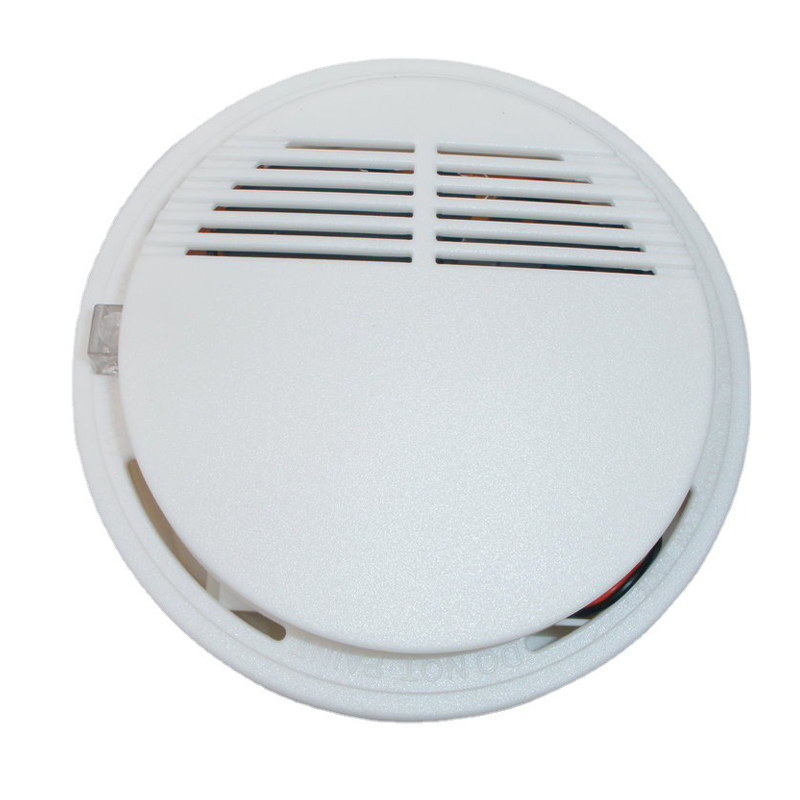

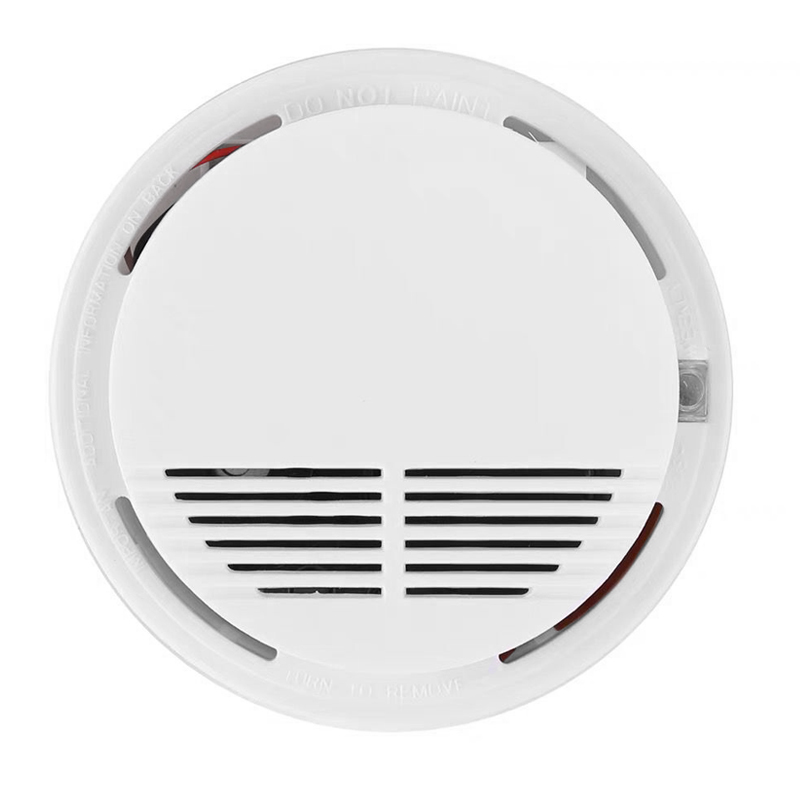

SS-168Independent DC9V Smog Detector Alarm-Smoke Detector Fire Alarm Systems
Model No.: SS-168
Standard configuration with battery: 1 smoke alarm + 1 battery + two screws + a manual
1. Manual test, automatic reset
2. LED indication and alarm, strong environmental adaptability
3. Manufactured by SMT process, strong stability
The test method is as follows:

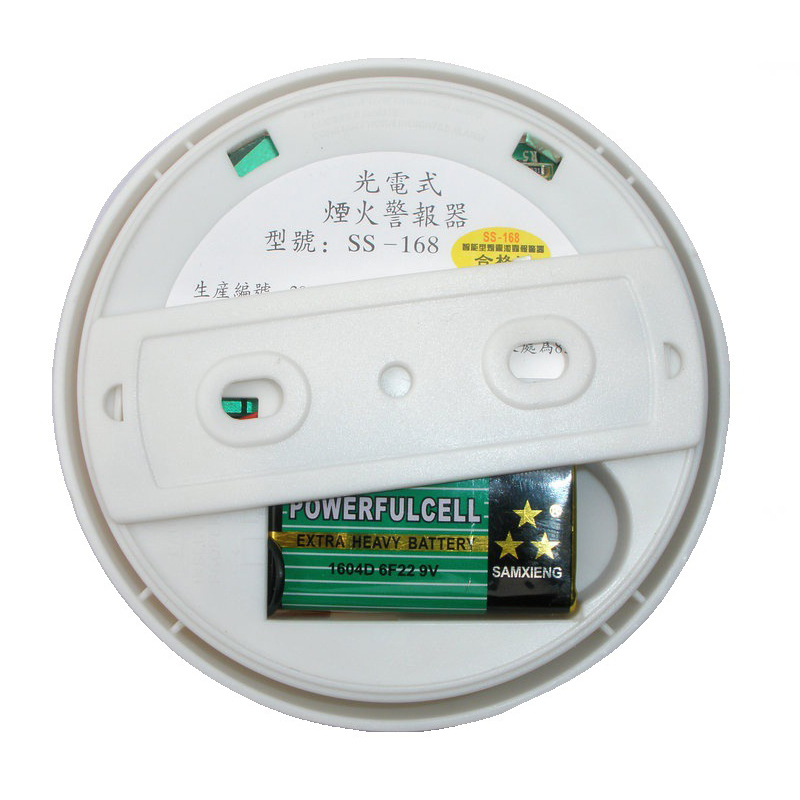

Install the battery after unpacking
One: button test method, directly press the test button on the smoke detector, and the alarm will sound directly
Two: Smoke test, take a mouthful of smoke and spray it on the smoke detector, the indicator light of the smoke detector will flash and an alarm will sound at the same time.
This product is not suitable for use in the following places:
Under normal circumstances, there is a place where smoke stays. Places with large dust, water mist, steam, oil mist pollution, and corrosive gases.
Working voltage | DC9V 1*6F22 battery |
Standby current | less than 10uA |
Alarm current | ≤15mA |
Working temperature | -10℃~+50℃ |
Working humidity | ≤95%RH |
Alarm mode | sound and light alarm |
Sound loudness | ≥85 DB |
Dimensions | Φ107*35mm |
S4A Datesheet_Independent DC9V Smog Detector Alarm-Smoke Detector Fire Alarm Systems
