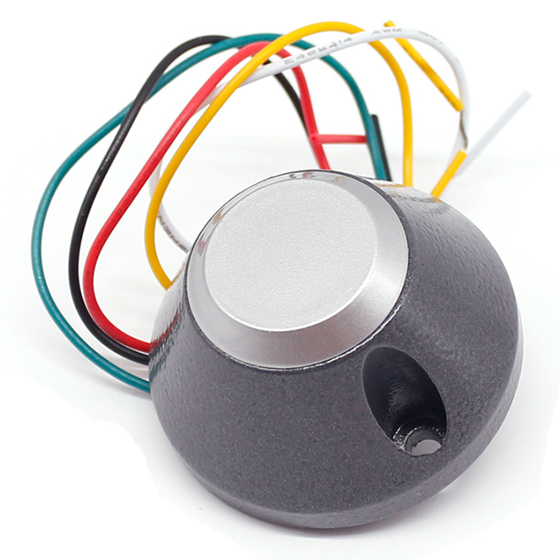

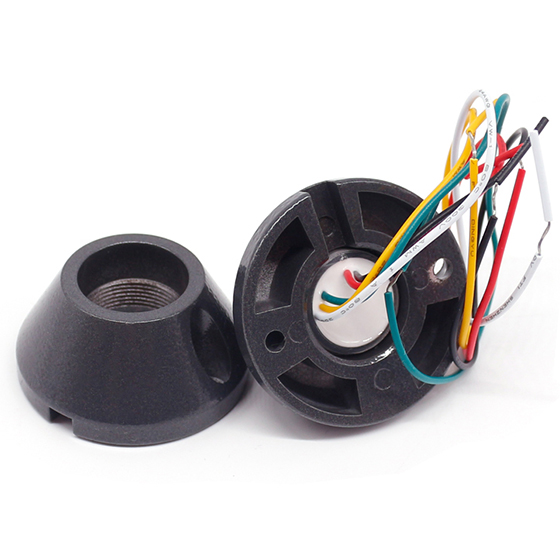

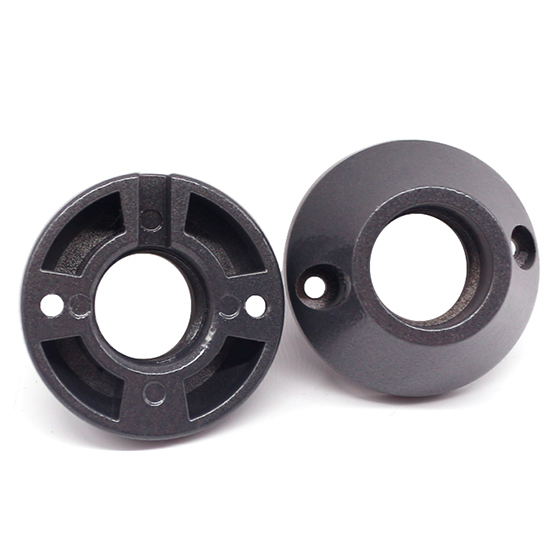

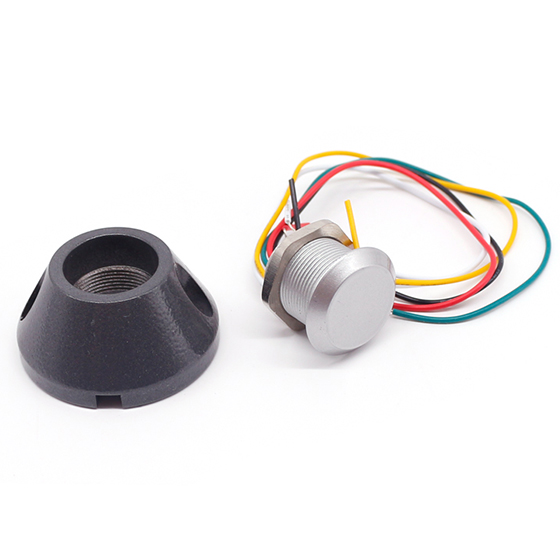

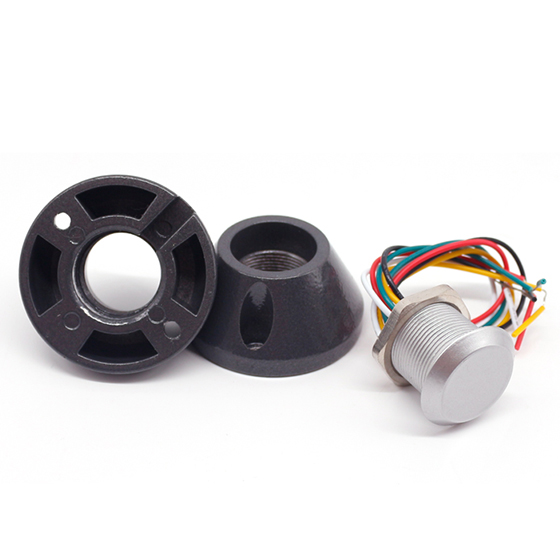

iButton EM 125KHz iButton Card Reader RFID Access Card Reader

> Operating frequency: 125KHz or 13.56 MHz

> Reader protocol: Wiegand-26, Wiegand-34

> Dimensions: 25 x 22mm

  • Brand:

    S4A
  • Item NO.:

    iButton
  • Specifications
  • Wiring Diagram
  • Package
  • Download

iButton EM 125KHz iButton Card Reader RFID Access Card Reader

Model No.: iButton EM, MF


iButton RFID embedded reader is designed for using in the network and standalone access control systems. iButton embedded reader supports 125KHz or 13.56MHz keys and connects to the controllers via  Wiegand-26/34 protocol.


Model No.

iButton EM

iButton MF

Purpose

ACS reader

Operating frequency

125KHz

13.56 MHz

Key types

RFID (Proximity)

Reader standard

TK4100

M1, Mifare Classic 1K, Mifare Classic 4K,

Reader protocol

Wiegand-26, Wiegand-34

RFID reading range (cm)

0-3

Keypad

No

Anti-vandal case

Yes

Waterproof and dustproof case

Yes

Keys copying protection

Yes

Current consumption (mA)

35mA

Visual indication

1 x Red LED

External control of LEDs and buzzer

No

Operating temperature (°C)

-30...+40

Case material

Polyamide

Dimensions (mm)

D25 x 22

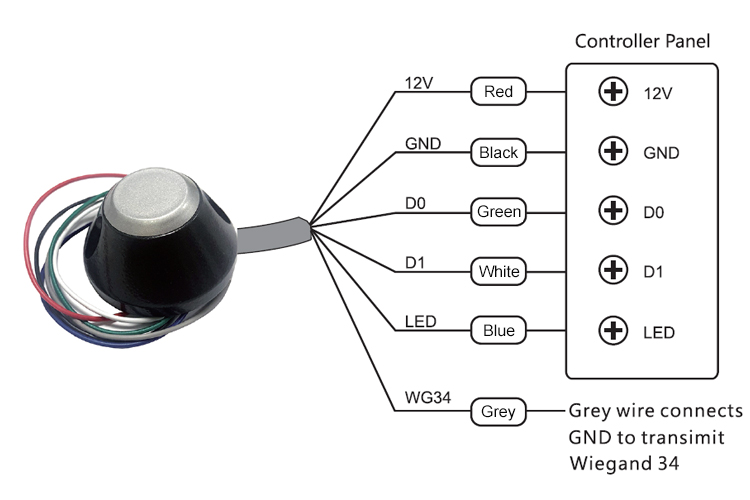

iButton Reader

 iButton Card Reade

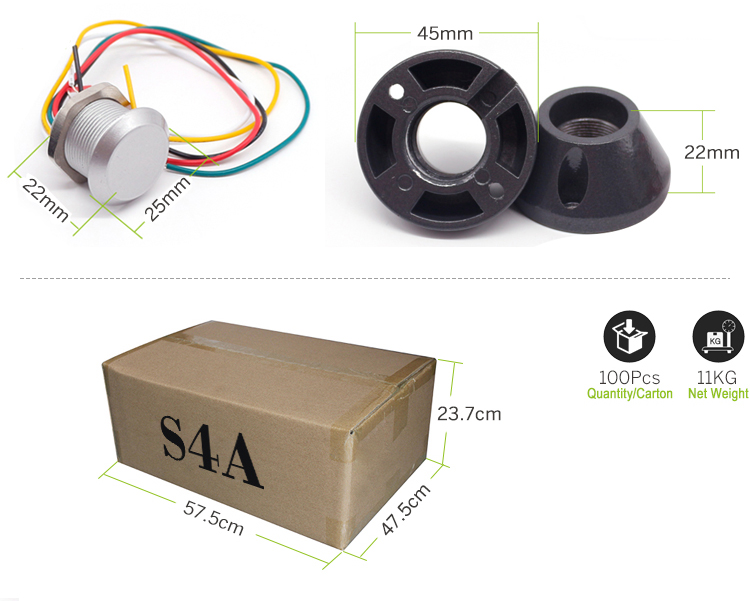

iButton EM 125KHz iButton Card Reader RFID Access Card Reader

Model No.

Dimension

Quantity/Carton

Net Weight

Gross Weight

Carton Size

iButton EM

25x22mm

100pcs

11KG

15.6KG

57.5x47.5x23.7cm

iButton MF

11KG

15.6KG

 iButton Card Reade

S4A Datesheet_IButton EM 125KHz IButton Card Reader RFID Access Card Reader
