> PCD series is available for OEM and ODM. KR series is not allowed
> Delivery terms: EXW factory
> This is an RFID card reader only, need to work with ACB series Control board
> Delivery time: If under 500pcs/model, within 2-3working days once confirmed
Brand:
S4AItem NO.:
MCI-109Desktop RFID Reader 125kHz Proximity Card Reader issuing with USB Interface
Model No.: MCI-109
Material | ABS+Epoxy |

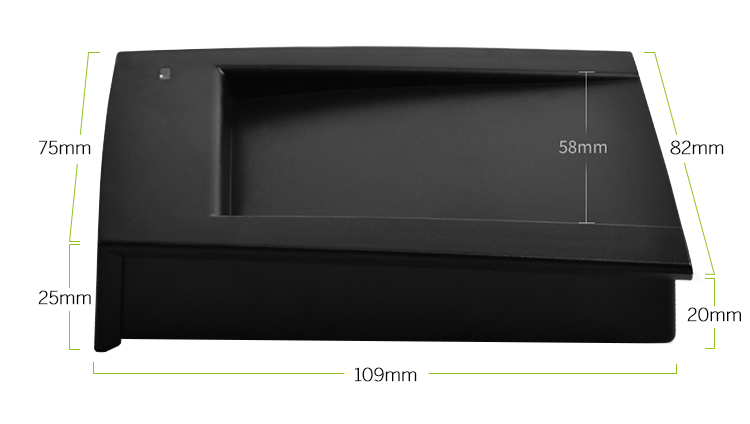

Size | 109x75x25mm |
Item | 13.56mhz Rift USB Card Reader |
Voltage | DC12V |
Static Current | less than 50mA |
Colour | Black and another colour |
Reading Distance | ID: 3~15cm / IC: 2~8cm |
Temperature | -25℃~85℃ |
Reader speed | less than 0.2sec |
Humidity | 10%~90% |
Support | 125KHz EM ID/13.56MHz MF IC/ Dual-frequency at the same time |
Card Type | EM-ID card, Middle distance ID card, General ID card, Dual-frequency card |
Frequency | 125KHz/13.56MHz / Dual frequency |
Interface | USB |
Built-in | Antenna,speaker,buzzer,red(blue)green color LED |
Transmission | USB |
Supporting System | compatible with Windows98/2000/XP |
Special Provide | Logo printing,long cable,Reader module,Dual-frequency(ID&IC) |
Application | For access control, attendance, fees, patrol, card, building on say, parking systems, highways and RFID outdoor application. |
Hot Selling Desktop RFID Reader Access Control | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
MCI-109 | 200PCS | 15.38KG | 15.5KG | 38x46x44cm |
Hot Selling Desktop RFID Reader Access Control | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
MCI-109 | 200PCS | 15.38KG | 15.5KG | 38x46x44cm |
S4A Datesheet_Desktop Rfid Reader 125khz Proximity Card Reader Issuing with Usb Interface
