> Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag
> 860~868MHz, 902~928MHz frequency band(frequency customization optional)
Brand:
S4AItem NO.:

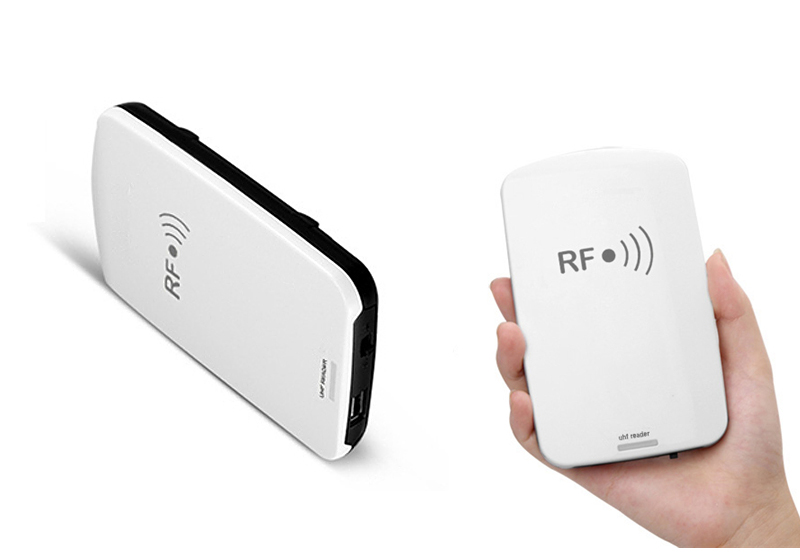

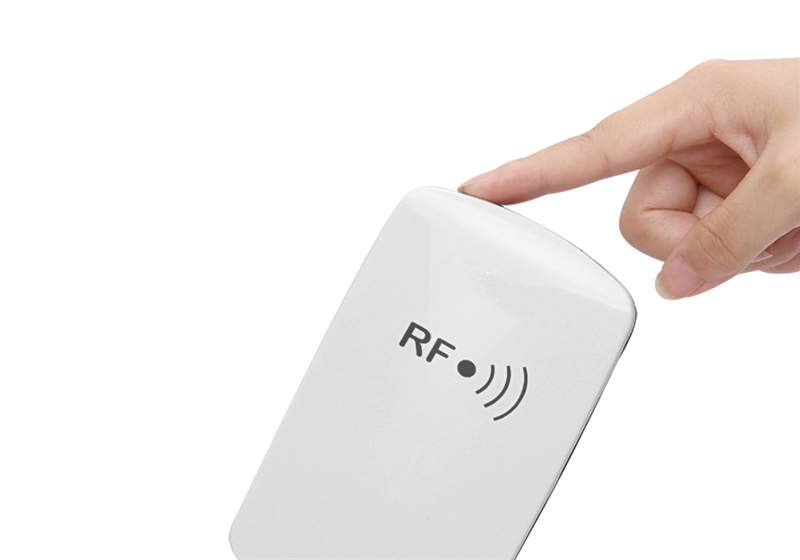

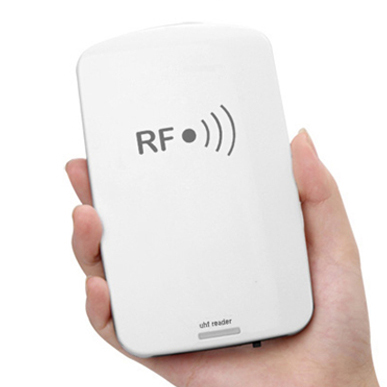

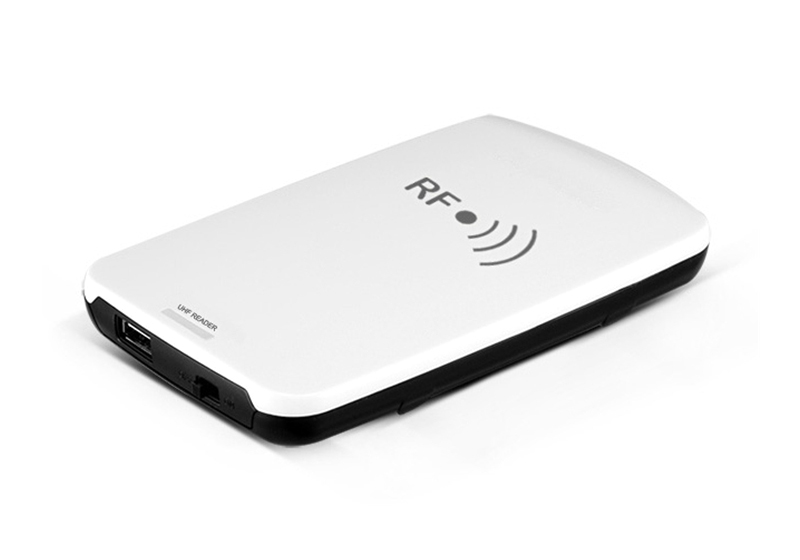

UHF-05High Receive Sensitivity USB Interface UHF RFID Desktop Reader
Model No.: UHF-05
Description:
UHF-05 is a high performance UHF RFID desktop Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Features:
> Self-intellectual property
> Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag
> 860~868MHz, 902~928MHz frequency band(frequency customization optional)
> FHSS or Fix Frequency transmission
> RF output power up to 13dbm(adjustable)
> No external power source needed
> Built-in antenna with effect distance up to 200mm*
> Support USB2.0 interface with VSP(Virtual Serial Port) or HID mode

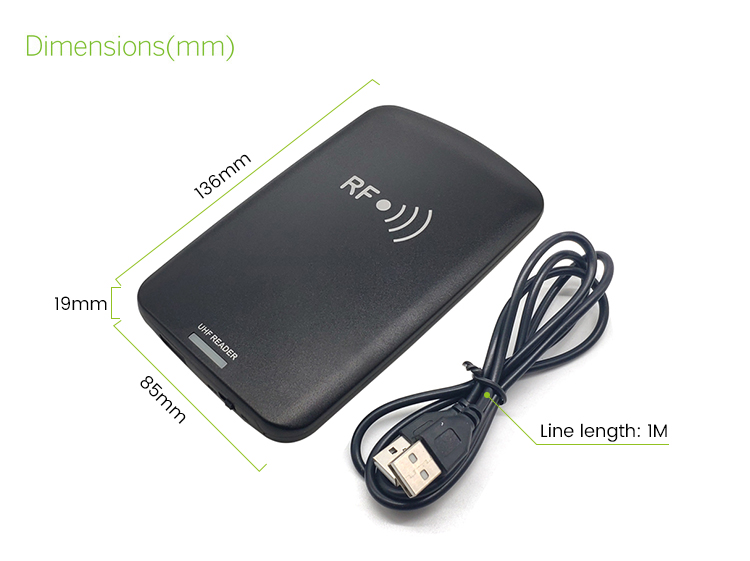

> Slim outline
> Provide SDK and demo software to facilitate further development
* Effective distance depends on protocol, tag and environmen
S4A Datasheet_High Receive Sensitivity USB Interface UHF RFID Desktop Reader
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
