>Switch type: NO-Normally Open / NC-Normally Close / NO+NC
Brand:
S4AItem NO.:

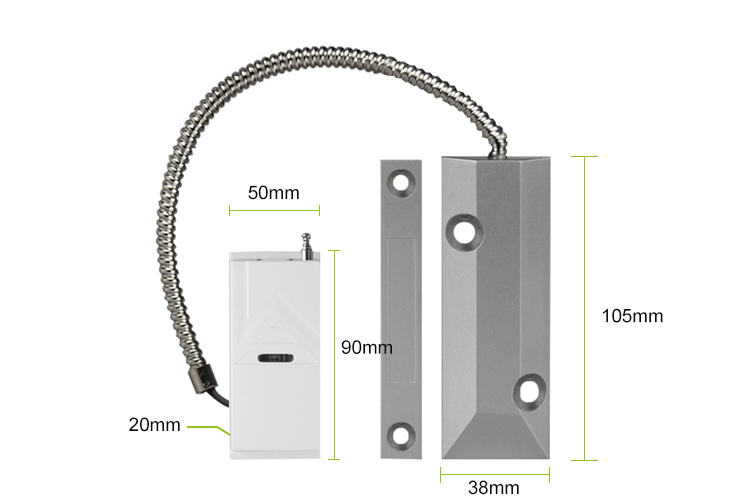

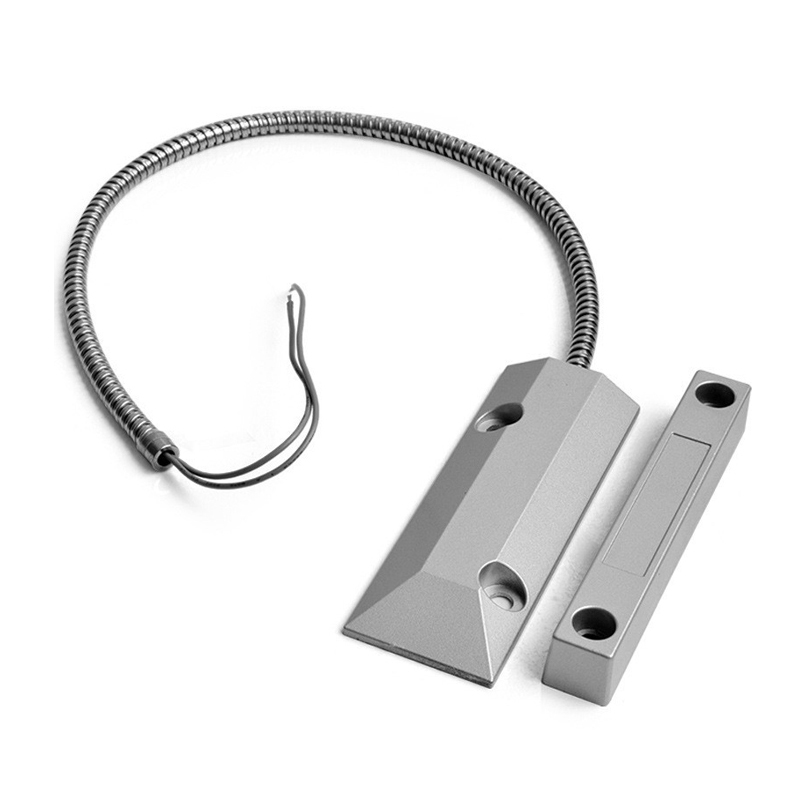

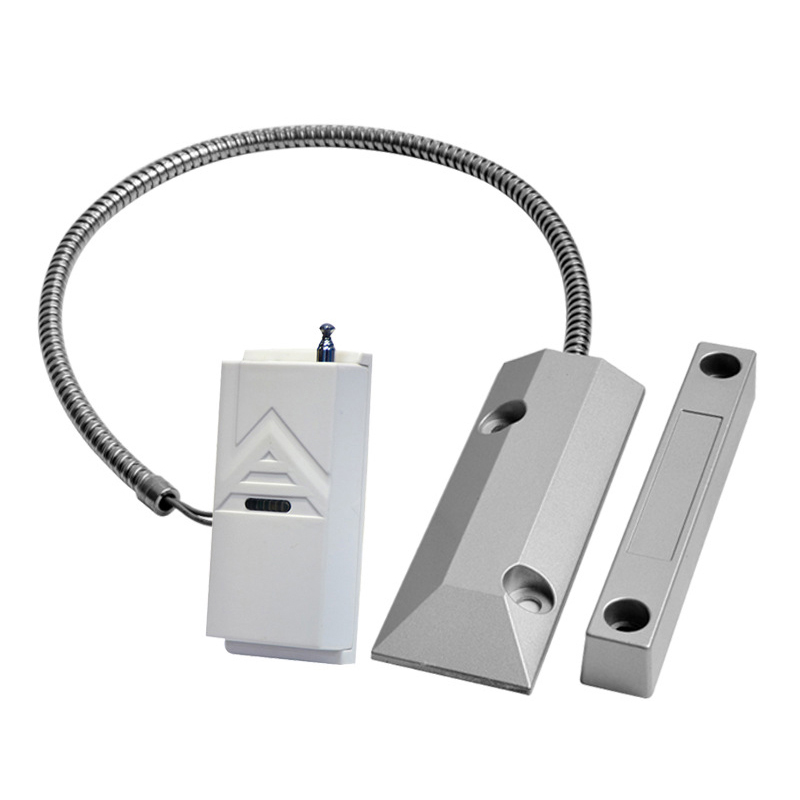

MC-SK03W-2Heavy Duty Wired Alarm Garage Door Magnetic Contacts Switch Sensor NC and NO
magnetic door contact for access control and burglar alarm systems
Model No.: MC-SK03W-2
what is Magnetic Reed Switch？
The reed switch is an electrical switch operated by an applied magnetic field. ... The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.
What are magnetic reed switches used for?
A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.

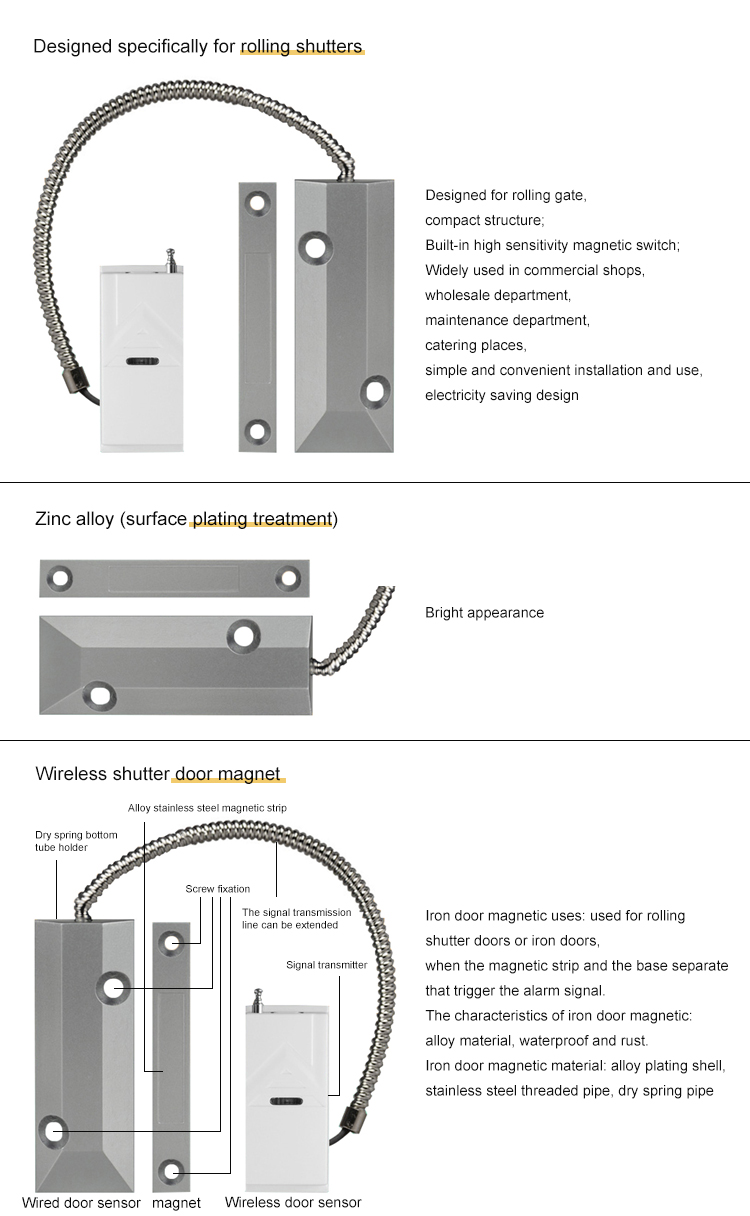

Installation of iron door magnet
Installation of iron door magnetic: the base is fixed on the ground, that is, the ground when the rolling shutter door is closed The place of contact.
Then fix the magnetic strip on the Angle steel of the rolling shutter door. If the base and magnetic strip can be combined together when the rolling shutter door is closed, the installation is successful. When the door is opened, that is, when the magnetic strip is separated from the base, the alarm signal will be triggered.

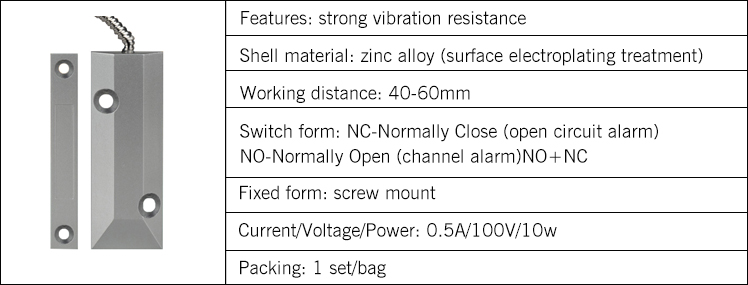

S4A_Datesheet_Heavy Duty Wired Alarm Garage Door Magnetic Contacts Switch Sensor NC and NO
>Sensing distance: 30mm>Switch form: NO-Normally Open/NC-Normally Close/NO+NC>Electrical parameters: maximum power 10W, working voltage 100VDC, working current 500A
>Switch form: NO-Normally Open/NC-Normally Close/NO+NC>maximum power:10W>maximum voltage:100V >maximum current:0.5A>Power cord length: 45cm
>Sensing distance: 50-70mm>Switch form: NO-Normally Open/NC-Normally Close/NO+NC
>Switch form: NO-Normally Open/NC-Normally Close/NO+NC>Power cord length: 45cm>Hose length: 30cm>Working environment: -40°C~80℃ >Relative humidity: ≤95% (40℃ )
>Switch form: NO-Normally Open/NC-Normally Close/NO+NC>Power cord length: 45cm>Hose length: 30cm
>Sensing distance: 20-30mm>Hole distance: 20mm>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A
>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A>Switch form: NO-Normally Open / NC-Normally Close / NO+NC>Current/Voltage/power: 0.1A /100VDC/ 3W
>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A>Switch form: NO-Normally Open / NC-Normally Close / NO+NC>Current/Voltage/power: 0.1A/100VDC/ 3W
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
