Dimension: 86x86x50mm
Brand:
S4AItem NO.:

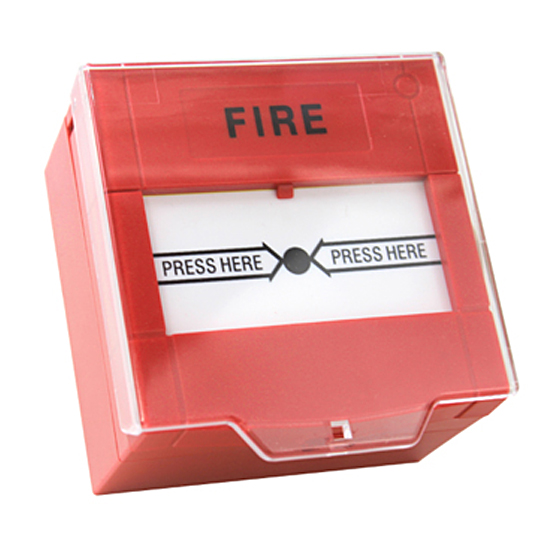

EB-20B SPDTResettable Break Glass
Model No: EB-20B SPDT

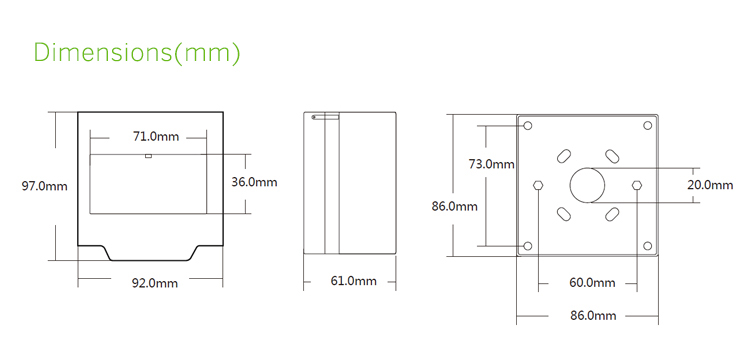

Dimensions | 86Lx86Wx50H(mm) |
Standard Structure | Fireproof Material, Easy to install |
Current Rating | 3A 36VDC Max |
Output Contact | NO\NC\COM |
Suitable for Door | Exit Door, Emergence Door |
Operating temp | 10~+55°C(14-131F) |
Operating Humidity | 0-95% (non- condensing) |
Material Selection | Fireproof Material, Sandblast Finished |
Weight | 0.2kg |

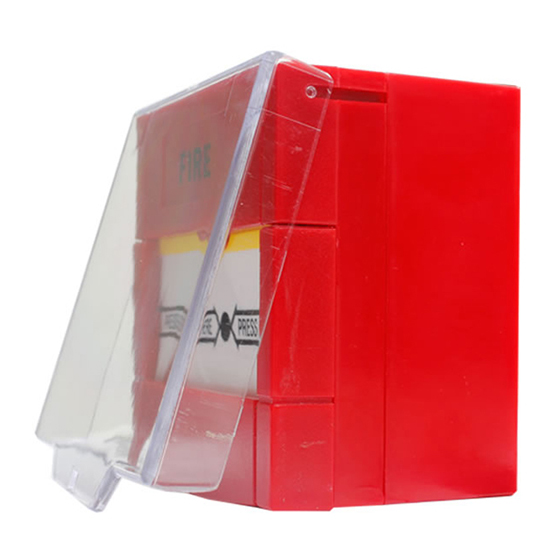

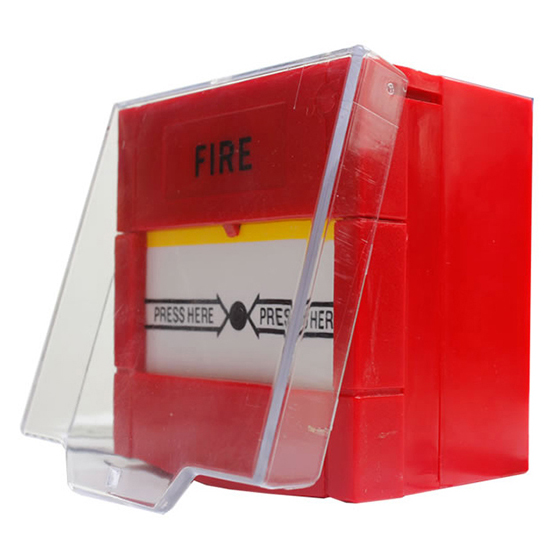

Optional accessories | Transparent cover |
Standard Packing | 50pcs |
Resettable Break Glass | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
EB-20 SPDT | 100 PC | 19.5 KG | 19.75 KG | 53X34X42 CM |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
