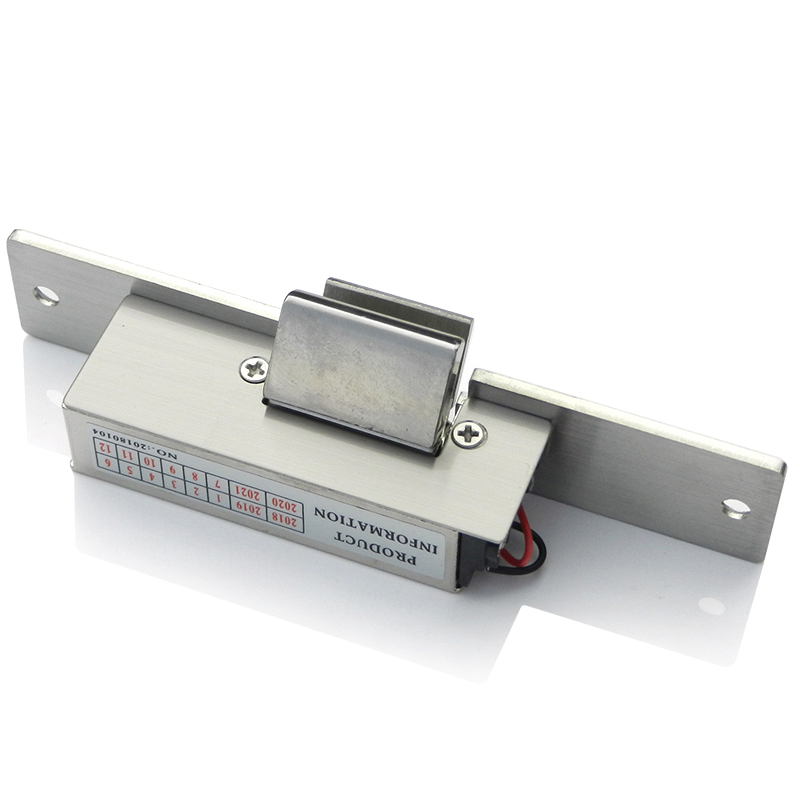

Fail Safe Electric Strike Lock for Glass Door

ES-140A: Fail-secure type (Power to unlock)

ES-140B: Fail-safe type (Power to lock)

> Lock Size: 149Lx28Wx31H(mm)

> Strike Struiture: Stainless Steel

> Holding Force: 250kg

> Voltage: DC12V

> Current: 240mA(ES-140A)

                 120mA(ES-140B)

  • Brand:

    S4A
  • Item NO.:

    ES-140
  • Specifications
  • Wiring Diagram
  • Download

Fail-Safe Electric Strike lock for Glass Door
Model No.: ES-140A, ES-140B


ES-140A: Fail-secure type (Power to unlock)

ES-140B: Fail-safe type (Power to lock)


Lock Size

149x28Wx31H(mm)

Strike Structure

Stainless Steel

Holding Force

250kg

Voltage

DC12V

Current

240mA(ES-140A), 120mA(ES-140B)

Feature

Locked when energized

Surface Temperature

Within +20°C

Suitable Temperature

-10°C~25°C(14°F-131°F)

Faceplate Housing

Painted Steel

Function

Built-out MOV

Glass Thickness

8-12mm

Suitable For

Glass Door

Opening Model

90 Degree Swinging Door

Weight

0.4kg

Standard Packing

60pcs/box

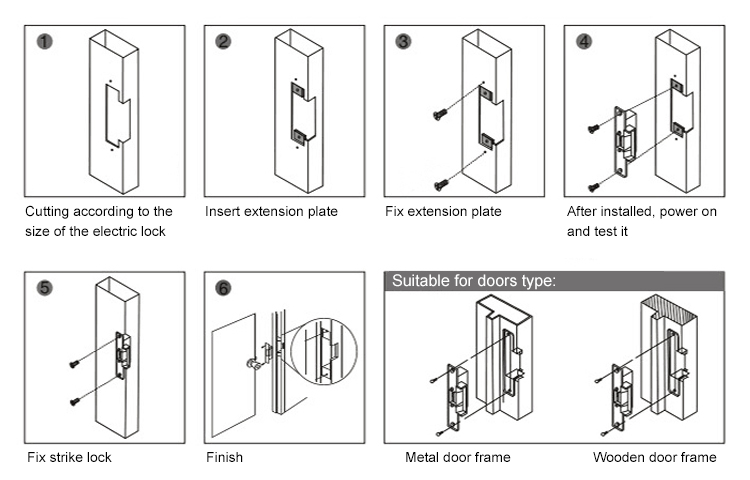

Fail Safe Electric Strike lock

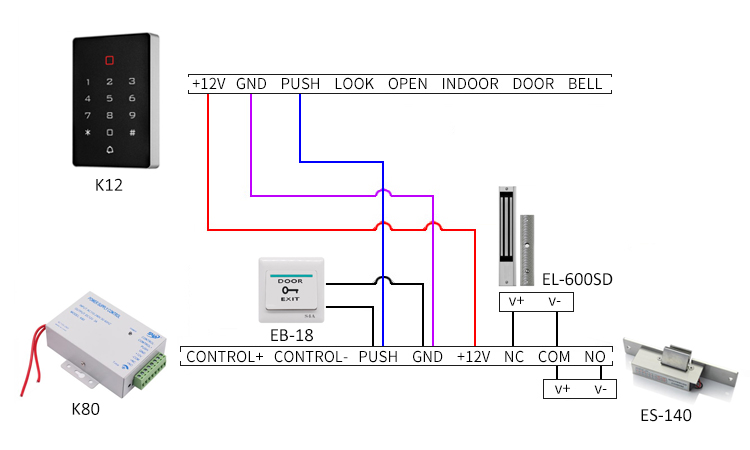

Fail Safe Electric Strike lock

Fail Safe Electric Strike lock for Glass Door

S4A Datesheet_Fail Safe Electric Strike Lock For Glass Door

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Electric Strike lock

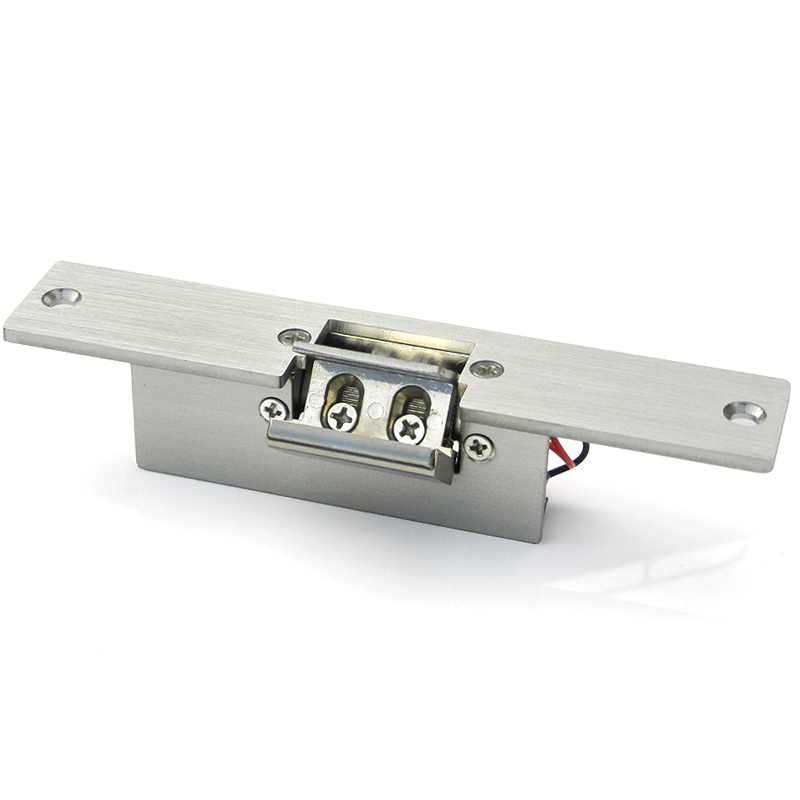

Standard-type Electric Strike Lock

ES-100A: Fail-secure type (Power to unlock)ES-100B: Fail-safe type (Power to lock)> Lock Size: 150Lx39.5Wx28H(mm)> Bolt structure: Stainless Steel> Holding Stength: 800kg> Voltage: 12VDC> Current: 450mA(ES-100A)                  200mA(ES-100B)

Fail-safe type Electric Strike lock

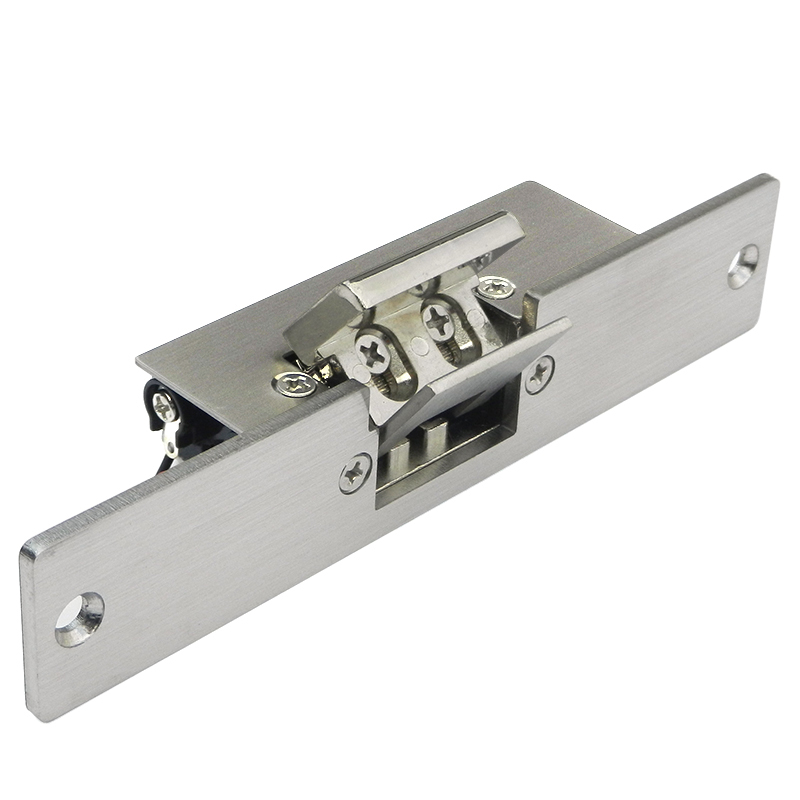

Long-type Electric Strike Lock

ES-110A: Fail-secure type (Power to unlock)ES-110B: Fail-safe type (Power to lock)> Lock Size: 250Lx25Wx34H(mm)> Strike Struiture: Stainless Steel> Holding Force: 400kg> Voltage: DC12V> Current: 240mA(ES-110A)                 120mA(ES-110B)

Electric Strike lock

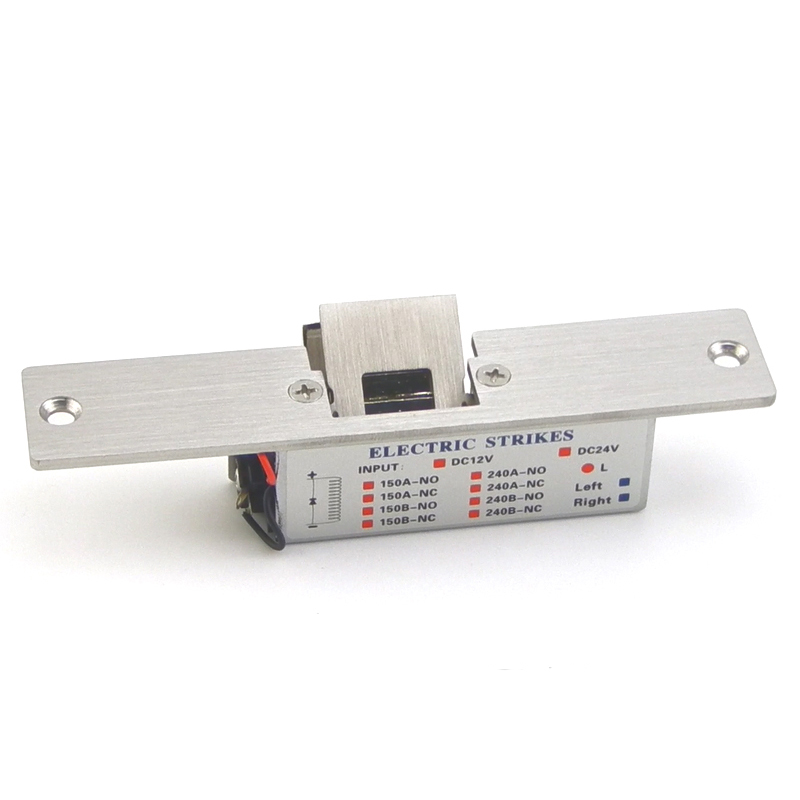

Ansi Standard Heavy Duty Electric Strike Lock

ES-120A 2wires: Fail-Secure & Fail-Safe(default: Fail-safe)ES-120B 5wires: With signal output>Input voltage: DC12V [24V customized]>Working current: 240mA>Withstand thrust: 400KG>Product material: stainless steel + zinc alloy>Product size: 124X43X32mm

Narrow type Electric Strike lock

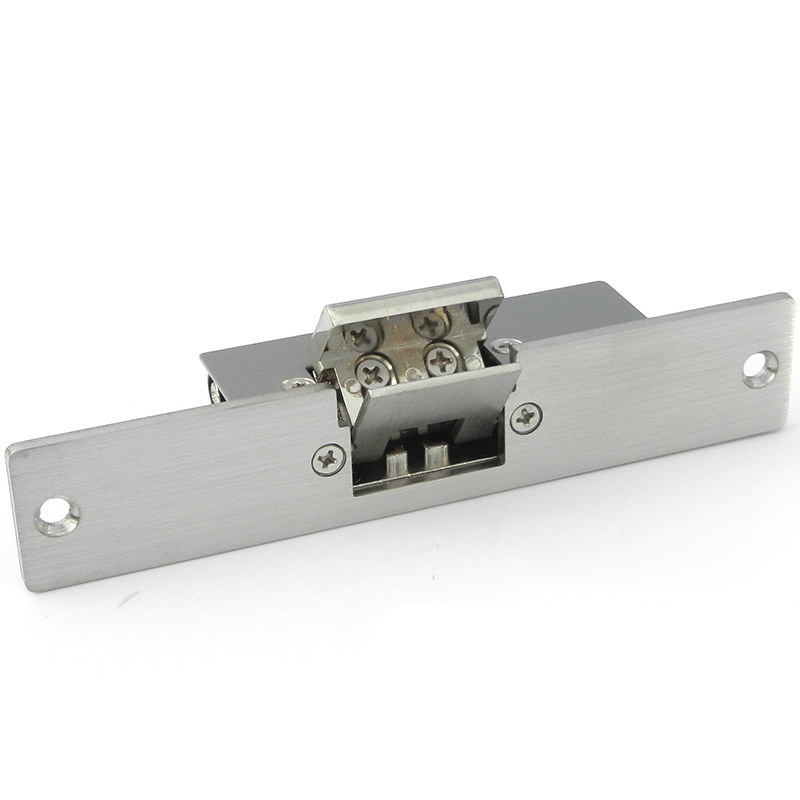

Narrow-type Electric Strike Lock

ES-130A: Fail-secure type (Power to unlock)ES-130B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx34H(mm)> Bolt structure: Stainless Steel> Holding Stength: 250kg> Voltage: 12VDC> Current: 240mA(ES-130A)                 120mA(ES-130B)

Adjustable Electric Strike lock

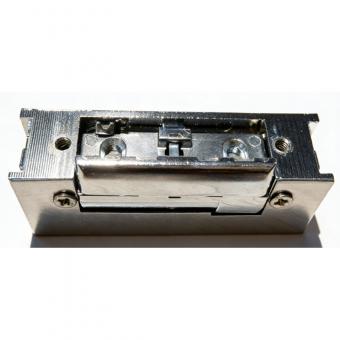

European Narrow-type and Adjustable Electric Strike Lock
