> Card type: EM Card
> Metal case, anti-vandal
> Capacity: 200 fingerprints and 500 cards
> Two accesses: card, fingerprint
> Fingerprint access controller and reader, WG26 Input/output
Brand:
S4AItem NO.:

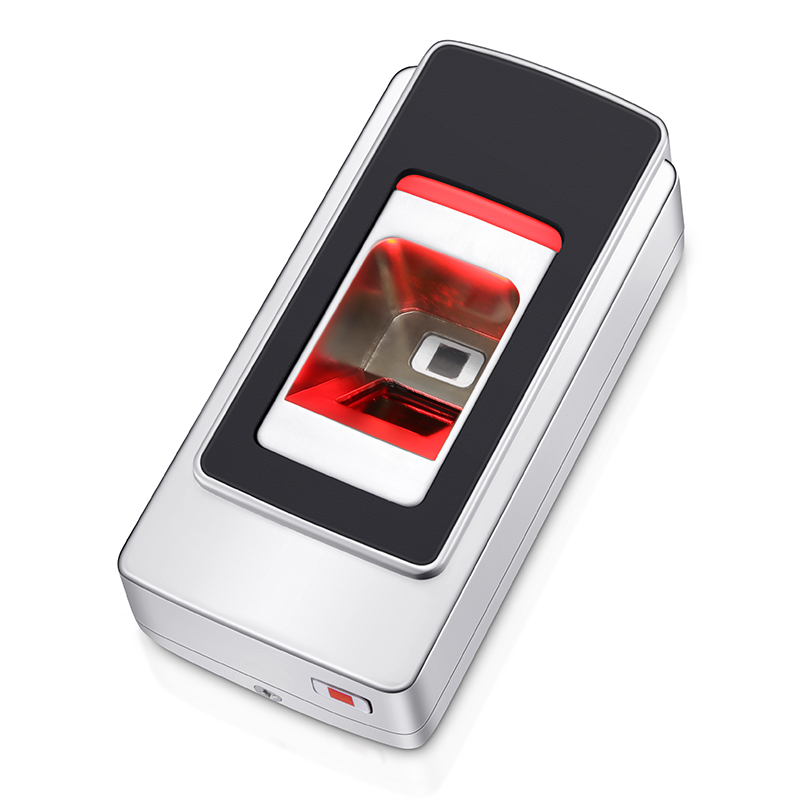

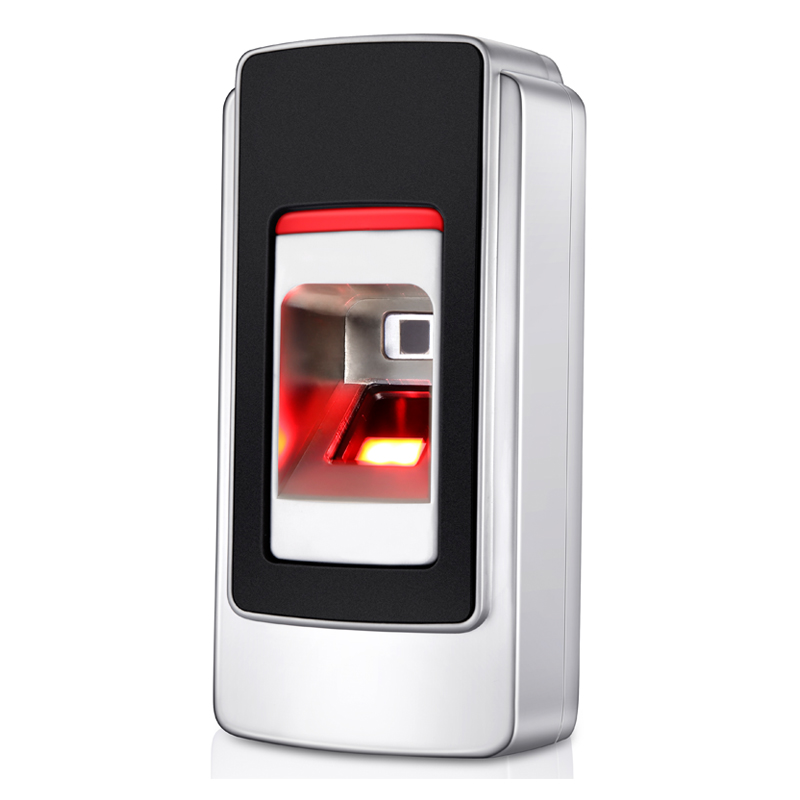

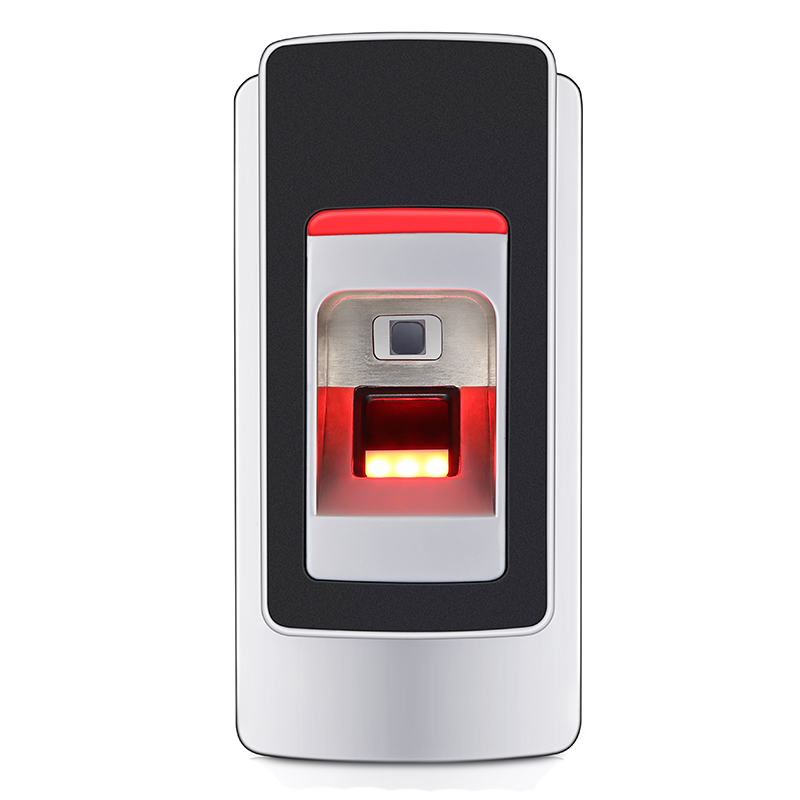

F3Fingerprint Standalone Access Controller
Model No.: F3 EM
What is a fingerprint access control machine？
The fingerprint access control system uses human biometric fingerprints for identity security identification. It has the characteristics of being irreplaceable, non-replicable, and unique. It uses high-tech digital image processing, biometrics, and DSP algorithms for access control security, It is a new generation of access control system that meets modern security requirements.
Card type | EM |
Working voltage | DC12V±10% |
Reading Range | 3-6cm |
Humidity | 20% to 90% RH |
Door Opening Time | 0-99s(Adjustable) |
Sleep electricity | ≤30mA |
Static electricity | ≤80mA |
Electric lock output | ≤3A |
Short-circuit Protect | ≤100μS |

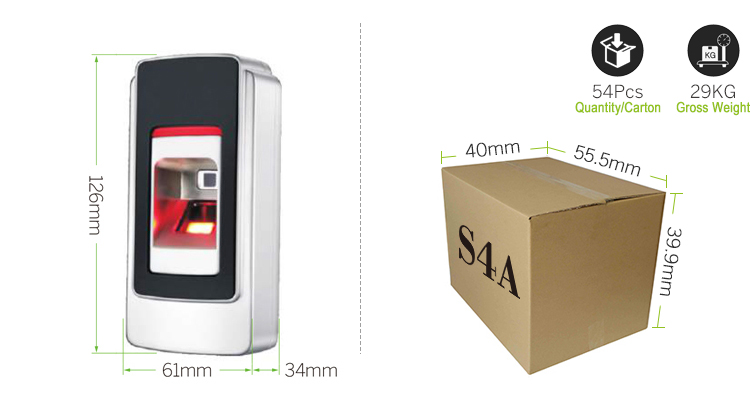

Dimensions | 126x61x34mm |
Factory Fingerprint Standalone Access Controller | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
F3EM | 126x61x34mm | 54pcs | 29KG | 55.5x40x39.9cm |
F3EM-W | 54pcs | 31.2KG | ||
S4A User Manual F3_Factory Fingerprint Standalone Access Controller
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
