>Model: S4A battery-support RFID lock
>Type: Intelligent Lock
>Opening mode: RFID card
>Material: Iron Alloy
Brand:
S4AItem NO.:
IR-1209Electric Door Locks Set Access Control System with Remote Control Rim Lock
Model No.: IR-1209
What is Electric Rim Door Lock?
Electric Rim Lock is a durable and reliable solution to secure your door by easily integrating it with anyVideo Door Phone or Access Control or Home Automation Solution. It can be installed on any type ofdoor i.e, wooden, aluminum or steel door.
How does a RIM door lock work?
A rim lock is a surface mount lock that installs on the surface of a door and uses a latch that slides into the keeper on the door rim or frame to secure the door. Many rim locks use porcelain, brass, or other type knobs or handles to operate the latch.
Model | S4A battery-support RFID lock |
Type | Intelligent Lock |
Opening mode | RFID card |
Material | Iron Alloy |
Memory capacity | 1000 user's card ,With management card |
Features | Low noise, Low consumption long life, convenient installation |
Function | External card readeris available |

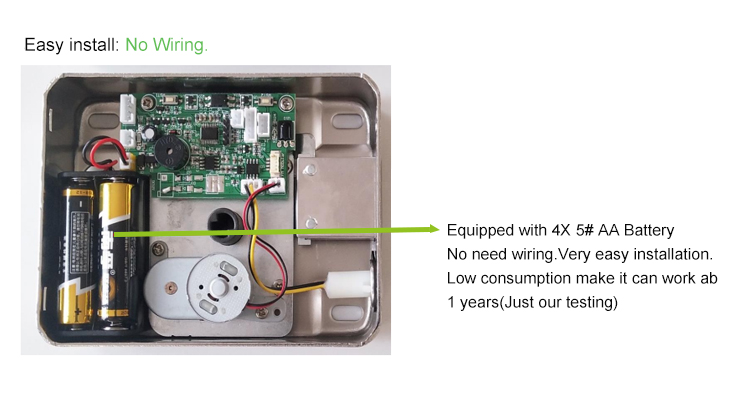

Working Power | DC6V 4X 5# Battery(Not Include) OR 12VDC electric power |
Working Current | <350mA |
Static Current | 25mA |
Unlocking time | <1S |
Size | L*110W*39H(mm) |
S4A _User Manual_Electric Door Locks Set Access Control System with Remote Control Rim Lock
