Categories
>SPDT ( NO/NC/COM ), Round Key
>Input: DC12V
> Contact Rating: 3A/125-250VAC
Brand:
S4AItem NO.:

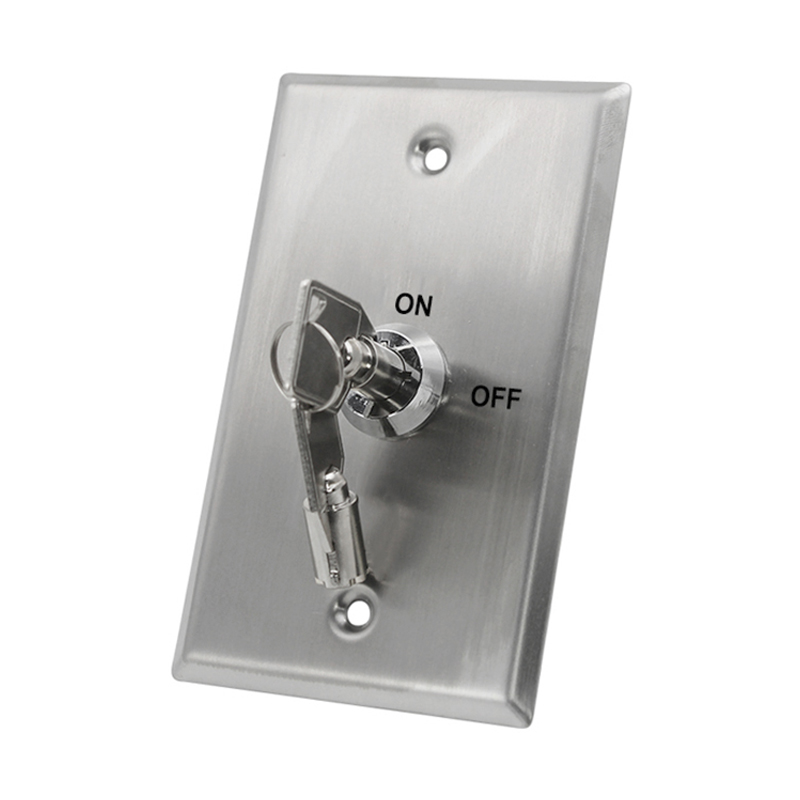

EB-S70KEB-S70K Access Control Emergency Stainless Steel Door Button With Mechanical Key
Model No.: EB-S70K
Product Parameter | Parameter Description |
S4A Model | EB-S70K |
Product Name | Key Switch |
Dimensions | 115Lx70W(mm) |
Material | Stainless Steel |
Output Contact | SPDT ( NO/NC/COM ) |
Key | Round Key |
Installation Diameter | 19mm |
Input | DC12V |
Contact Rating | 3A/125-250VAC |
Mechanical Life | 500000 tests |
Operating temp | -20℃～+55℃(14-131F) |
Suitable Humidity | 0-95% (relative humidity) |
Unit Weight | 0.132KG |
Standard Package | 100PCS/carton |
Carton Weight | 14.5KG |
Carton Size | 51*43*33(cm) |

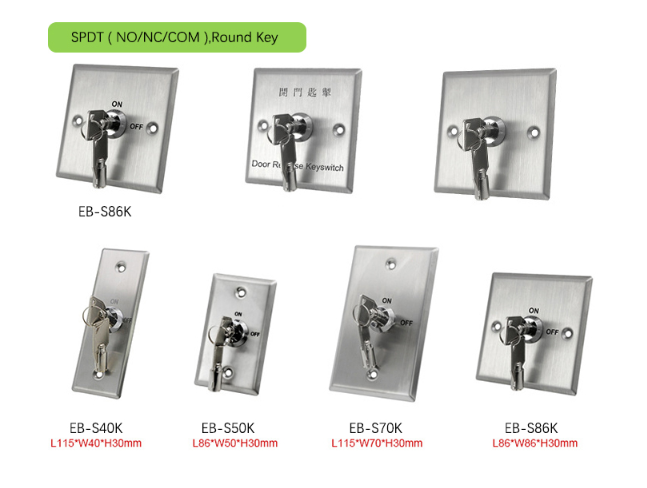

Dimensions: 91x28x20mm
Dimensions: 115x70x25mm
Dimensions: 86x86x38mm
Dimensions: 86x86x38mm
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V>Contact Rating: 3A/125-250VAC
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V>Contact Rating:3A/125-250VAC
>SPDT ( NO/NC/COM ), Round Key>Input: DC12V>Contact Rating: 3A/125-250VAC
>DPDT ( 2NO/2NC/2COM ),Flat Type Key>Material: Stainless Steel>Output Contact: DPDT ( 2NO/2NC/2COM )
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
