>Material: copper wire, aluminum alloy
>Surface treatment: electroplating
>Specification: 60KG suction
>Type: Door stopper for energization
>Installation form: wall-mounted
Brand:
S4AItem NO.:

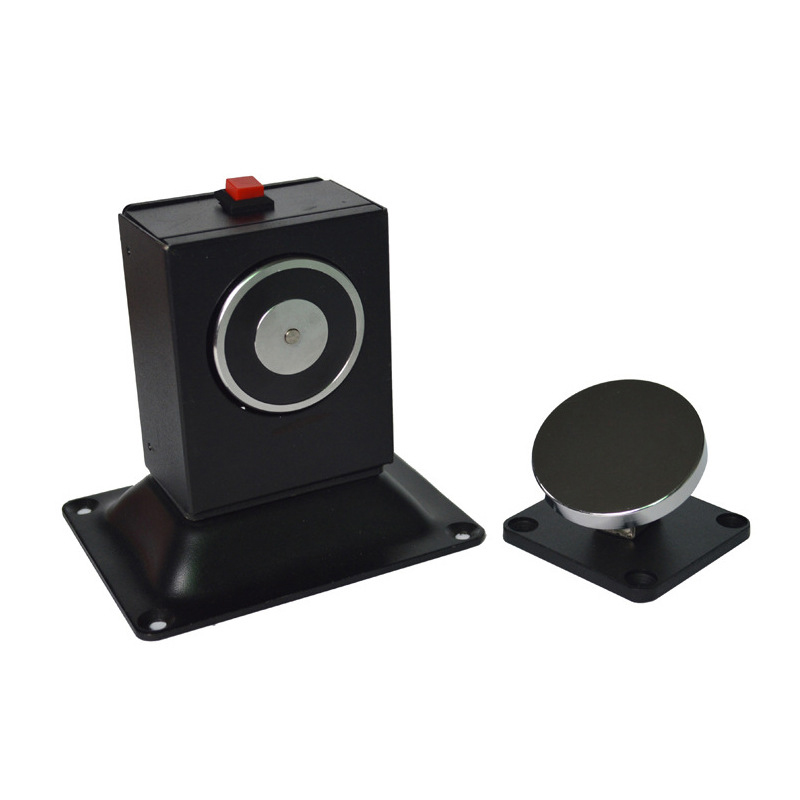

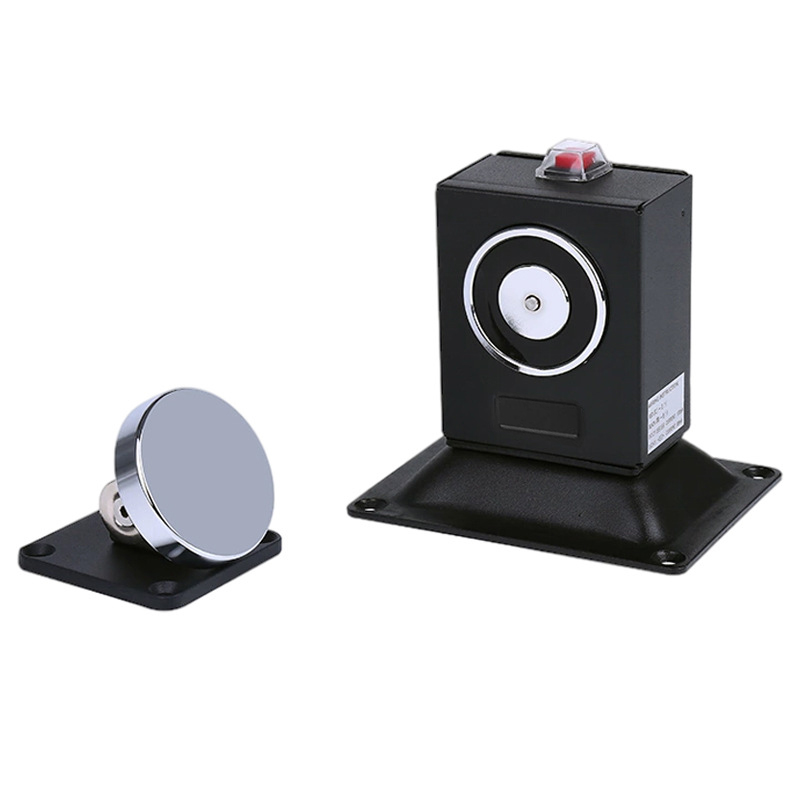

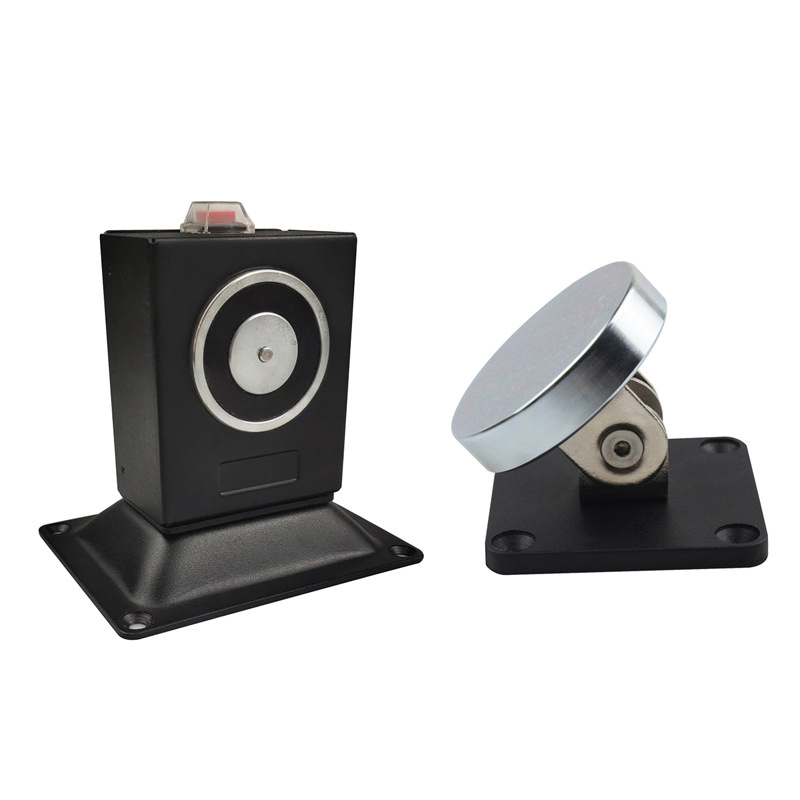

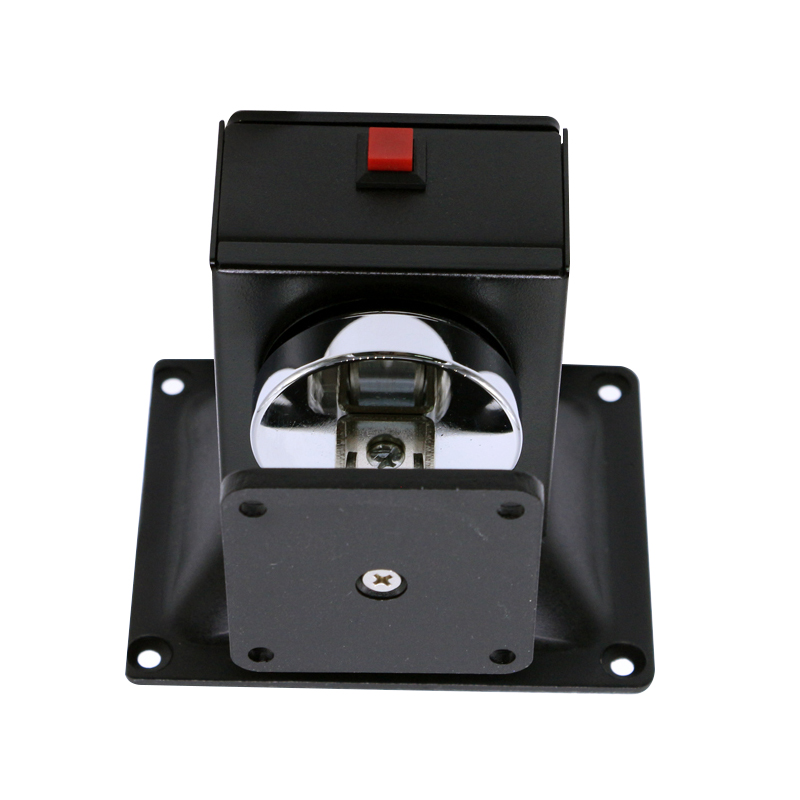

S4A-35Door stopper holder with screws for wall or floor mounting to hold the door open
Model No.: S4A-35
Features
Power supply wiring: red wire is connected to the positive pole of the power supply
The black wire is connected to the negative pole of the power supply
Applicable door types: Various single-opening or double-opening smoke-proof doors

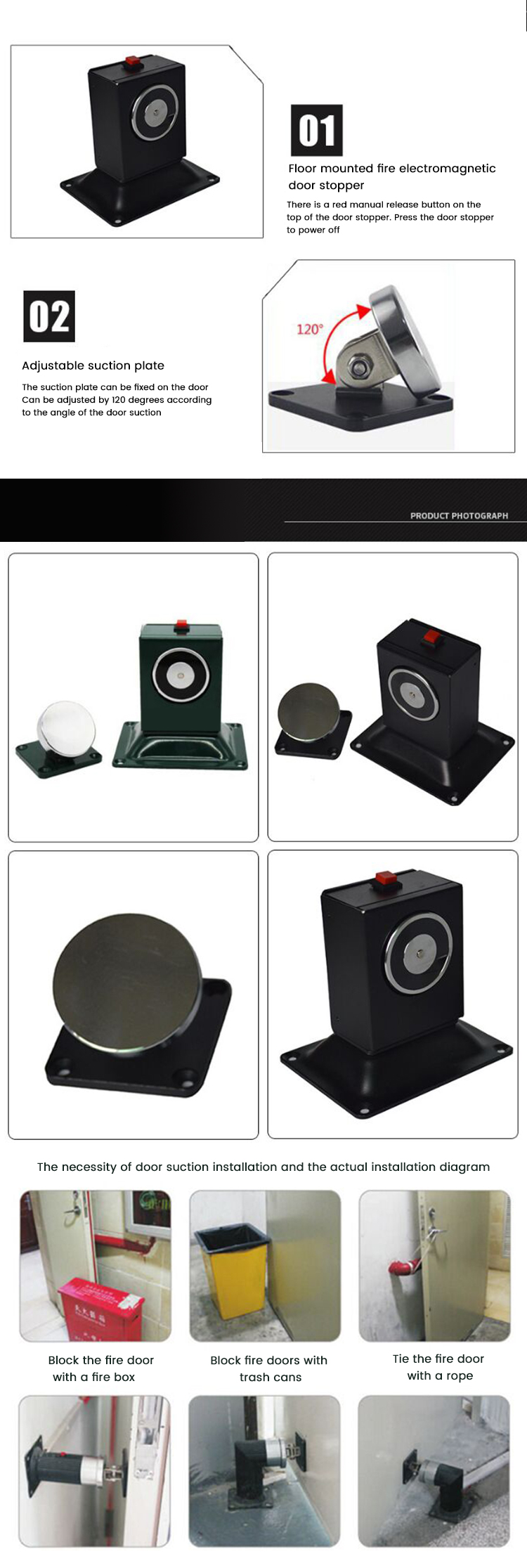

(With manual door closing release button)

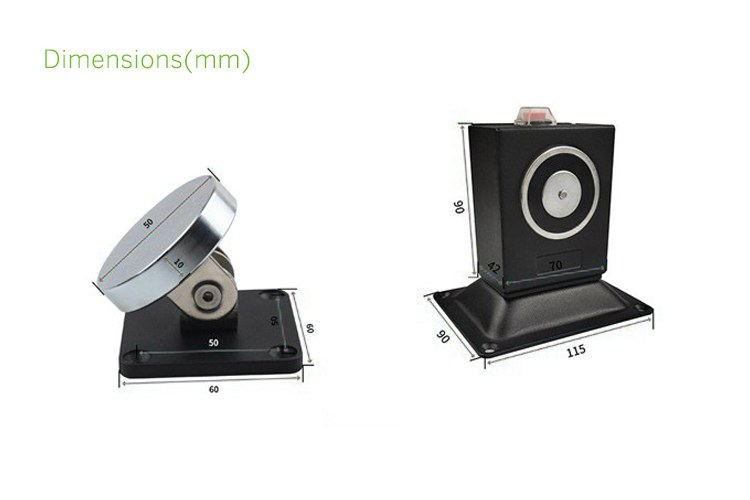

Lock body dimensions | 115X90X90mm |
Adsorption cake size | 60X60X47mm |
Standard suction power | 60KG (120LBS) ±10% linear pulling force |

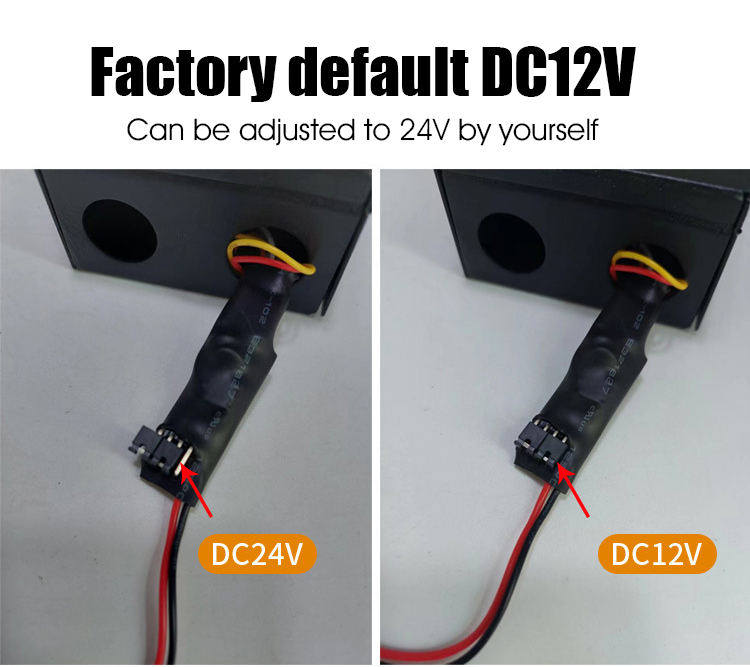

Input voltage | DC12V/DV24V±10% (adjustable) |
Working current | DC12V/170mA±5% |
DC24V/85mA±5% | |
Applicable door type | various single-opening or double-opening smoke-proof doors |
Material | copper wire, aluminum alloy |
Surface treatment | electroplating |
Type | Door stopper for energization |
Installation form | wall-mounted |
Control method | manual |
S4A_Datesheet_door stopper holder with screws for wall or floor mounting to hold the door open

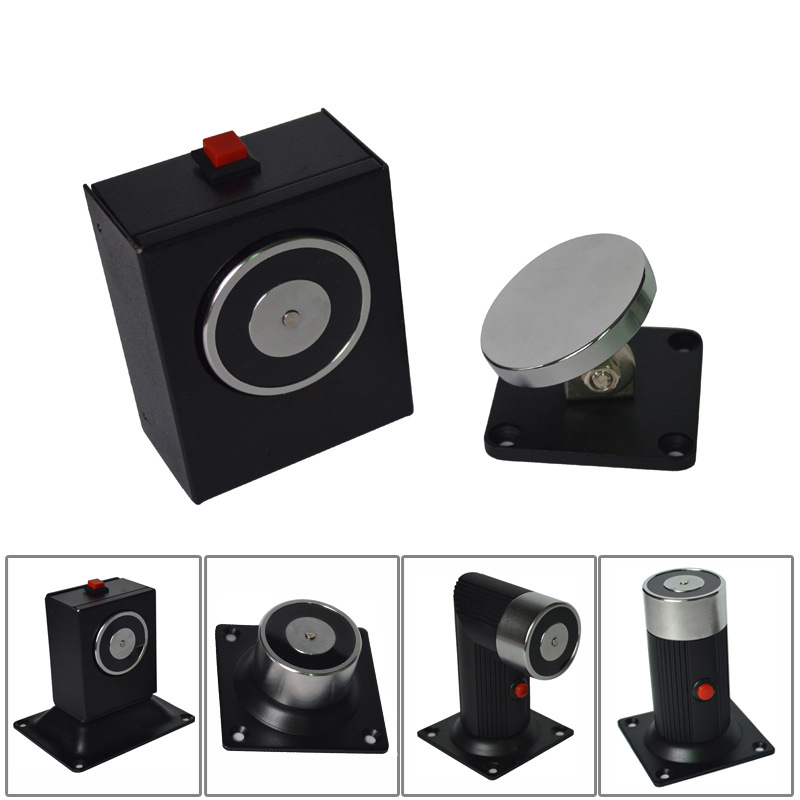

Work with all Kind of Single & Double Smokeproof Doors> Holding Force: 60kg
Work with all Kind of Single & Double Smokeproof Doors> Dimensions: 88x88x80mm> Holding Force: 50kg
Magnetic door holders are used in fire protection doors, These holders keep the doors open during dap to dap operations When smoke is detected the fire alarm transmits a signal which cuts off the power feed and the mechanism releases the door. This avoids fire and smoke expansion
Magnetic Door Holder for Glass doorWork with all Kind of Single & Double Smokeproof Doors> Dimensions: 118x80x55mm> Holding Force: 60kg(110Lbs)
Glass door Electromagnetic Door Holders/ReleasesWork with all Kind of Single & Double Smokeproof Doors> Dimensions: 118x80x55mm> Holding Force: 60kg(110Lbs)
Door Holders Work with all Kind of Single & Double Smokeproof Doors> Dimensions: 115x79x83mm> Holding Force: 120kg
Work with all Kind of Single & Double Smokeproof Doors> Dimensions: 50x65x90mm> Holding Force: 60kg(110Lbs)
Door Stops Work with all Kind of Single & Double Smokeproof Doors
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
