Door position detection and bolt position (N.C. & N.O.)
output points
> Power Supply: DC12V
> Operation current: 880mA
Brand:
S4AItem NO.:
BL-2600BDead Bolt Lock (all Purpose Type)Access Control lock System
Model No.: BL-2600B

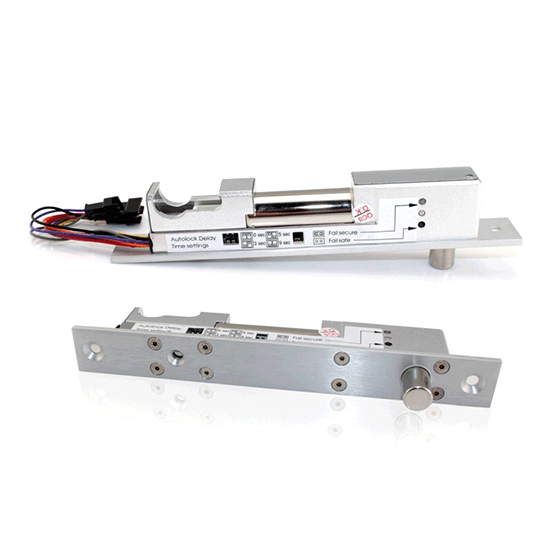

I. Fail-Safe: Adjustable fail-safe (Power to lock) or fail-secure (power to open)
Adjustable to fail-secure (power to open) for high-security places. Adjustable to fail-safe (Power to lock) for public places.
Adjustable to fail-secure (power to open) to achieve long unlock state function.
Face Plate | 200Lx25WX35H(mm) |
Strike plate | 90Lx23Wx2H(mm) |
Bolt | 16mm(Throw) x 13mm(Diameter) |

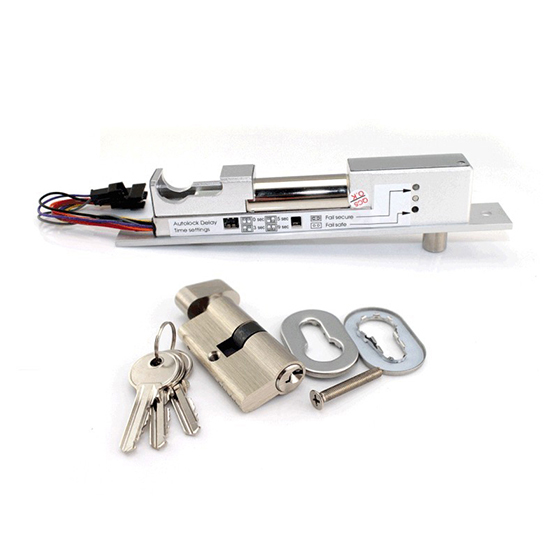

II. Built-in oval cylinder as unlocking the device
Use of oval cylinder to unlock when power cut occurred or during emergency
Built-in photo couplers door open push button input contact. The door will lock again automatically when door is not open within 5 seconds

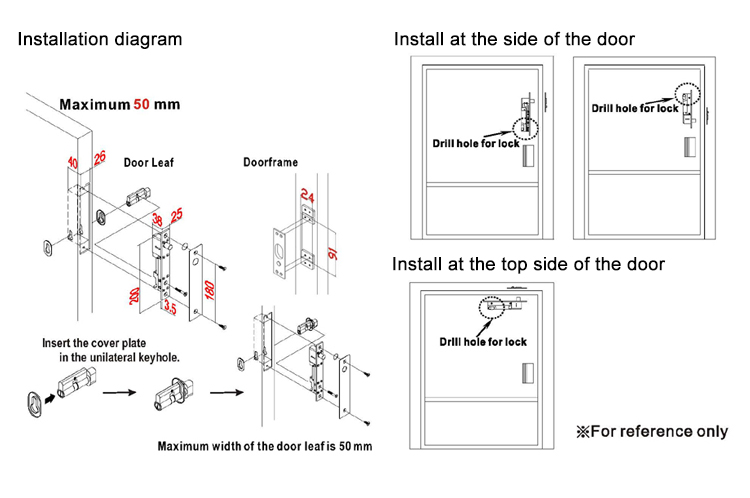

III. Bolt lock Suitable For Wooden Door, Glass Door, Metal Door, Glass Door
Surface Temp | Low Temperature |
Suitable for | 180° door |
Operating temp | -10~+25°C(14-131F) |
Operating Humidity | 0~90%(non-condensing) |
Special Designed | Tested to 500000 cycles |
