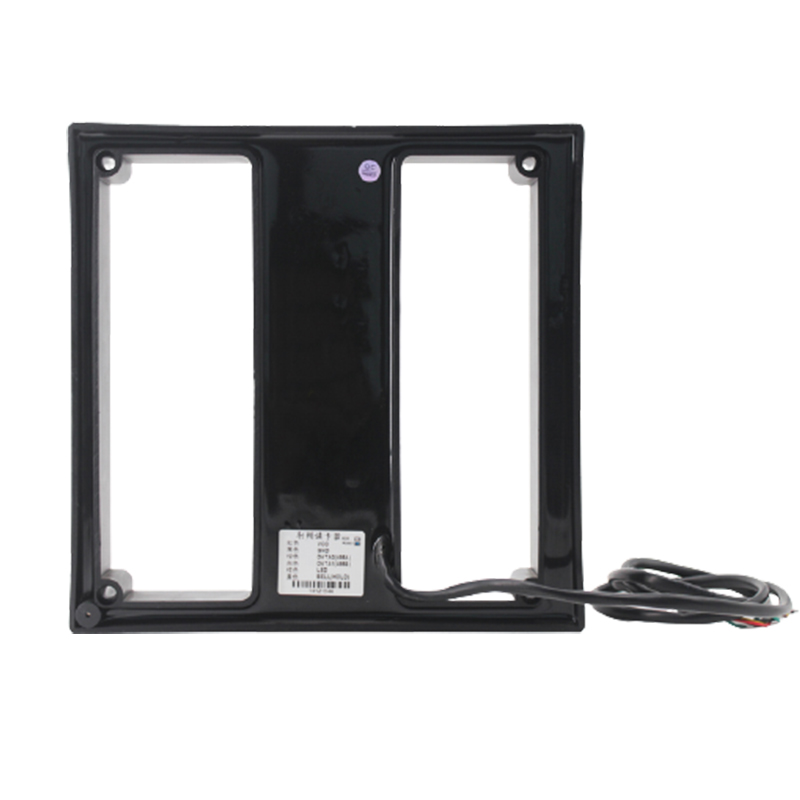

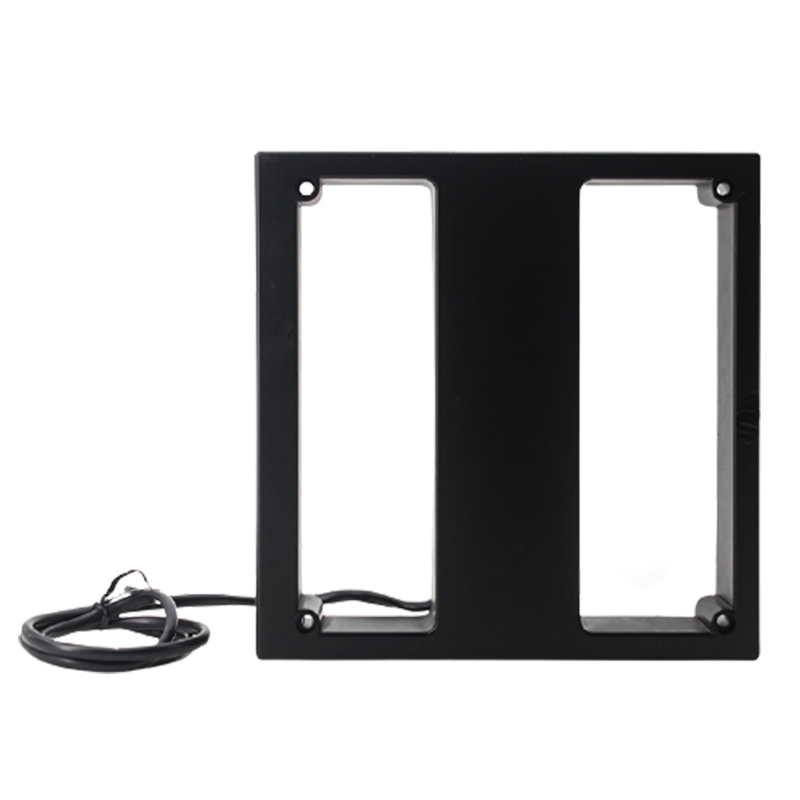

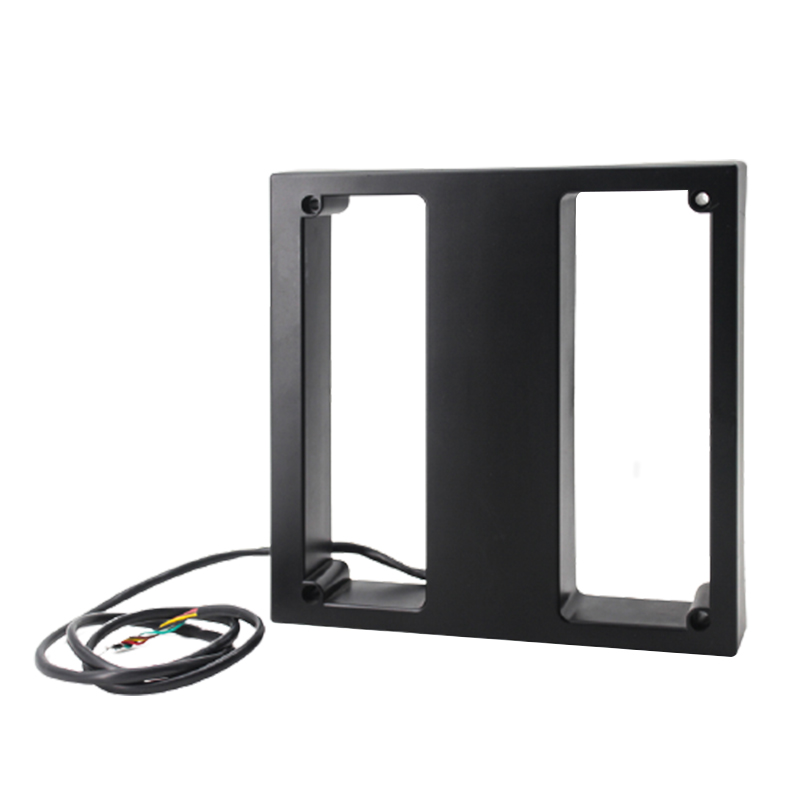

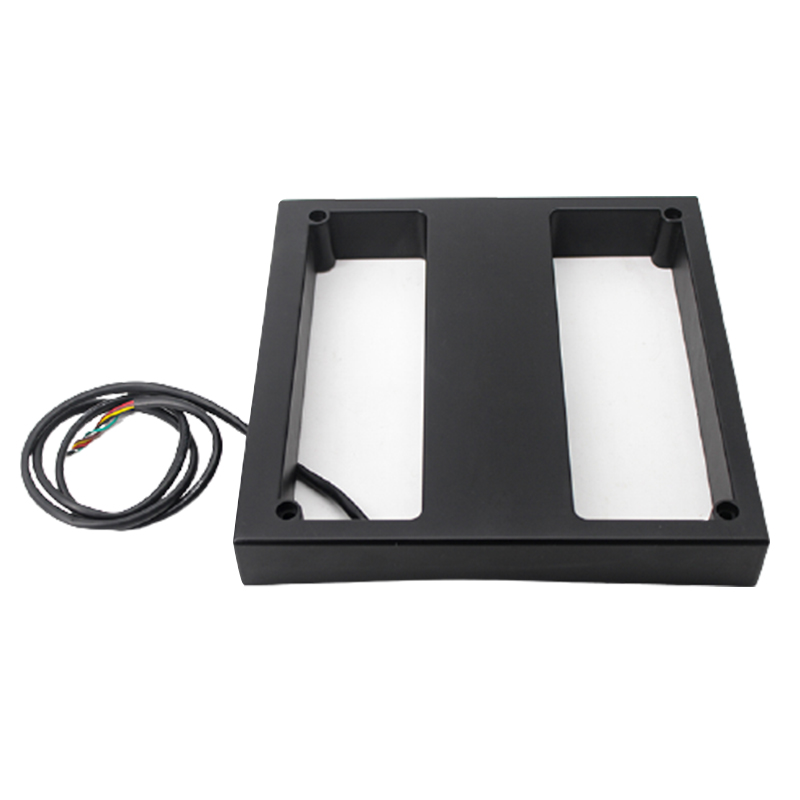

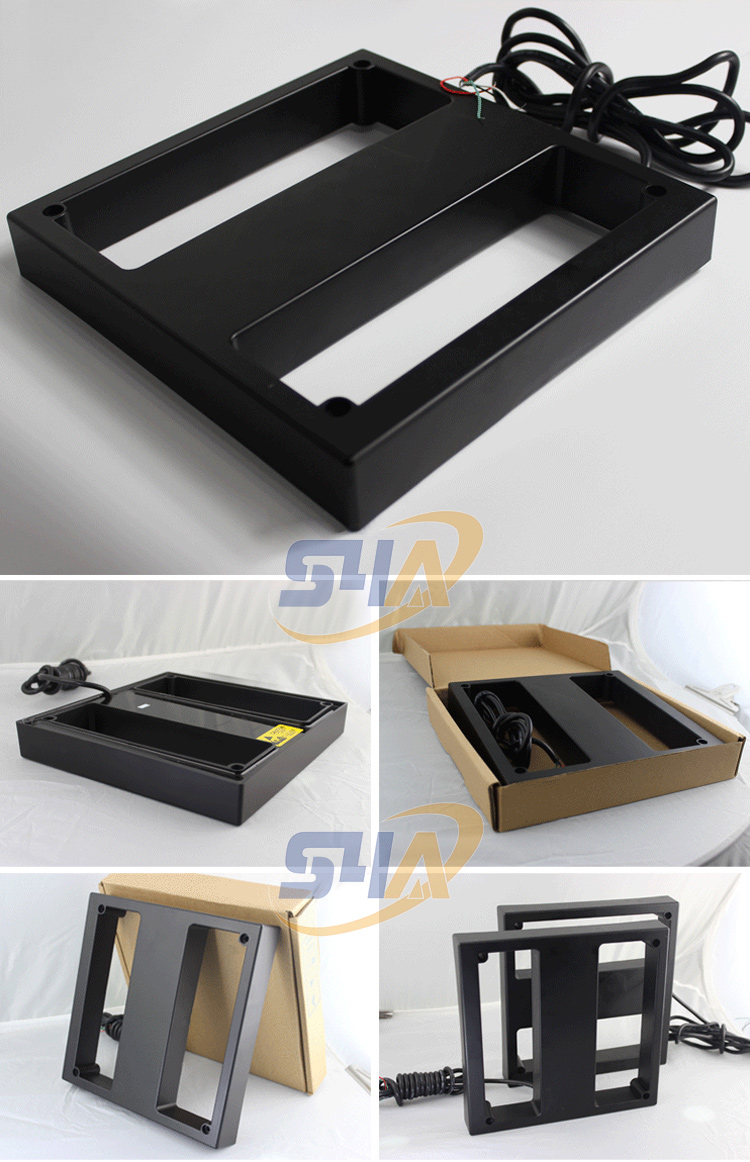

PCD-110 Middle Distance Proximity Card Reader
> Frequency: 125KHz
> Reading distance: 70-100CM
Brand:
S4AItem NO.:
PCD-110DC9~12V 70-100cm ID Mid-Range Reader Access Control Parking Lot Card Reader
Model No.: PCD-110
Frequency | 125kHz |
Supported | 125KHz EM ID card or compitable cards |

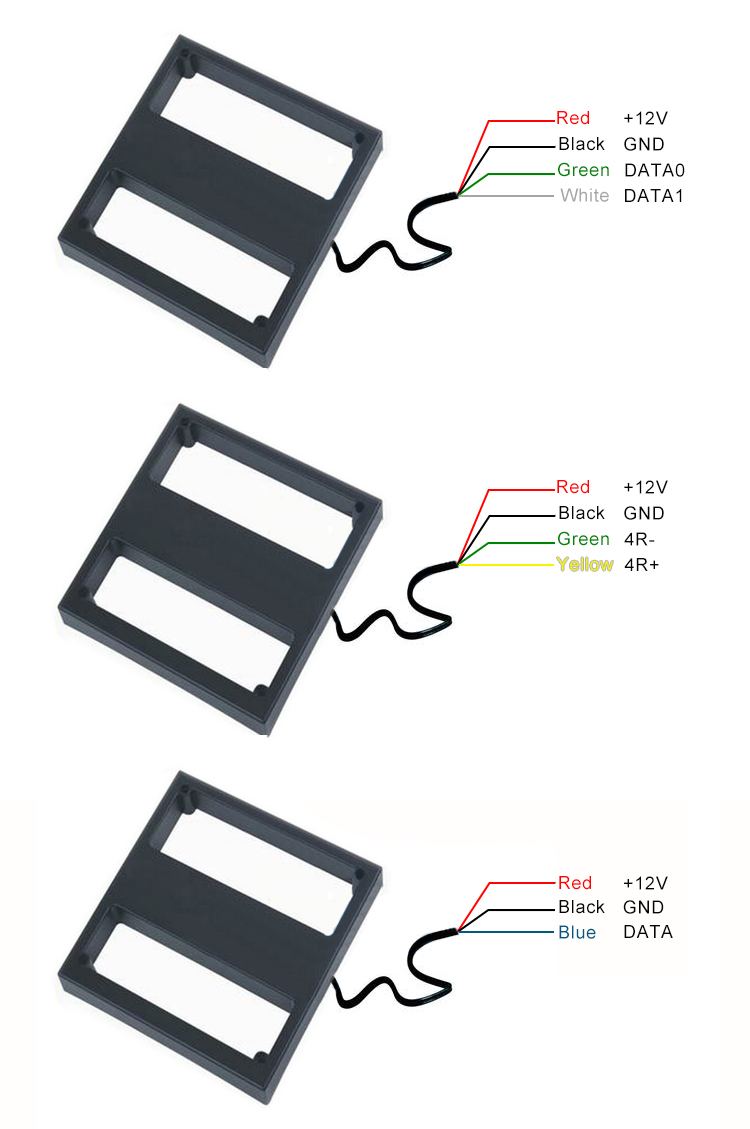

Interface | Wiegand (26 / 34 / 42-bit), Magstripe, clock and data, RS232, RS485,(9600, n, 8, 1), EIA and TTL levels |
Communication | Weigand26, Weigand34 |
Voltage | DC9~12V |
Current | <50mA |
Temperature | -25'C ~ 85'C Ambient Temperature |
Humidity | 10%~90% |
Punch interval | Less than 0.5sec |
Reader speed | Less than 0.2sec |
Reading Range | 65 ~ 105cm, depending on transponders |
Warranty | 1 year |
Waterproof | IP67 |
Customization | yes |
Built-in | Antenna,speaker,buzzer,red(bule)green color LED |
Transmission | Weigand26, Weigand34 |
Size | 230 x 230 x 35mm |
Metarials | ABS Case Material (Black Resin for Water-Proof Function) |
Color | Black |
Application | For access control, attendance, fees, patrol, card, building onsay, parking systems, highways and rfid application. |

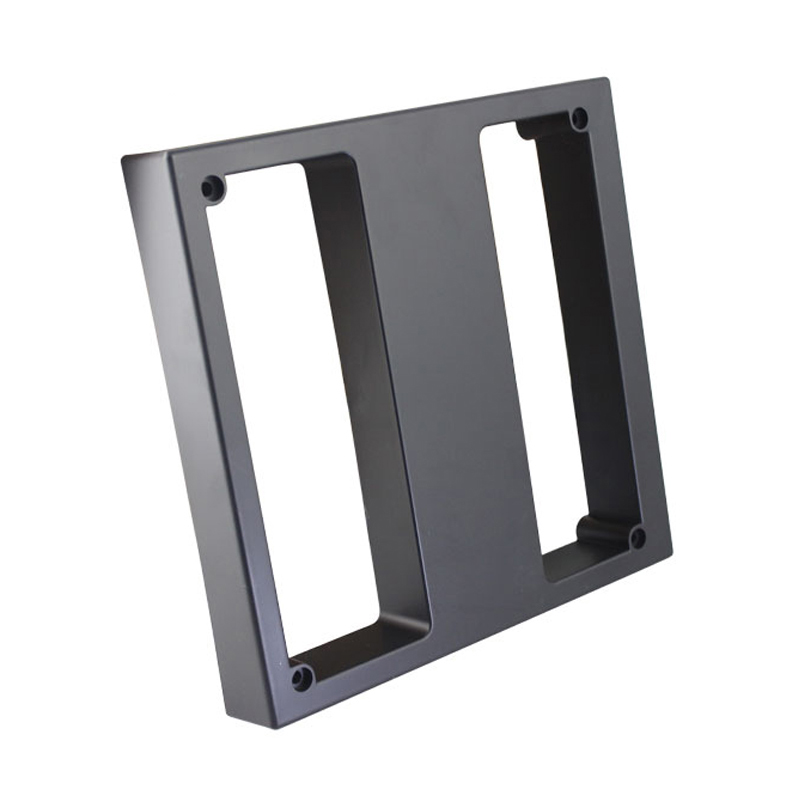

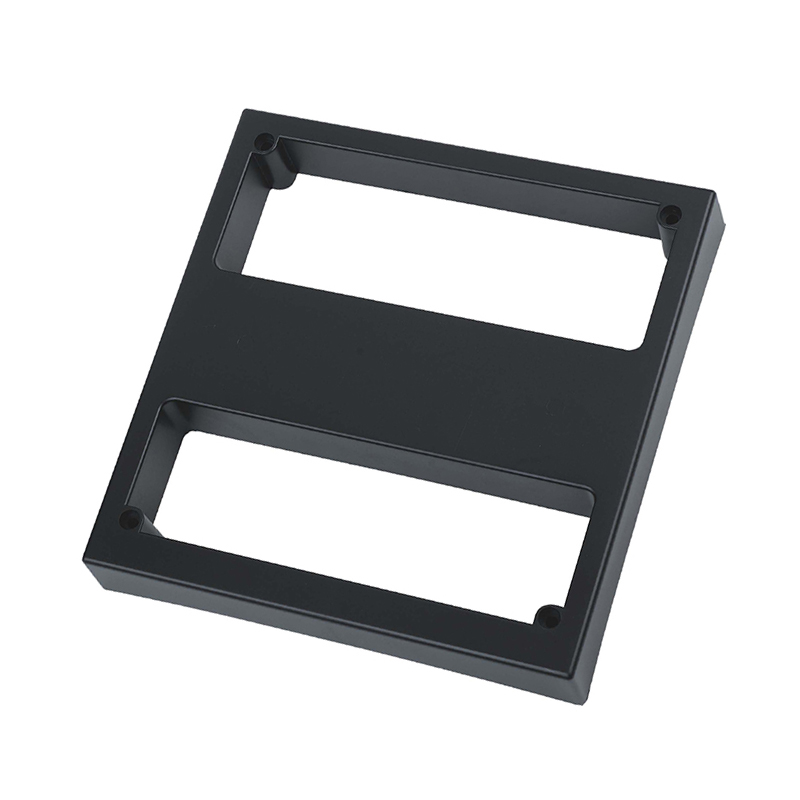

> Size: 260 x 260 x 35mm> Voltage: DC5-16V> Reading Range: 70~100CM> Output Format: Wiegand 26 (Factory default, customized Wiegand 34, RS485/232)> Card Type EM-ID Middle distance card> Comunication Distance WG≤100M, RS485≤1200M

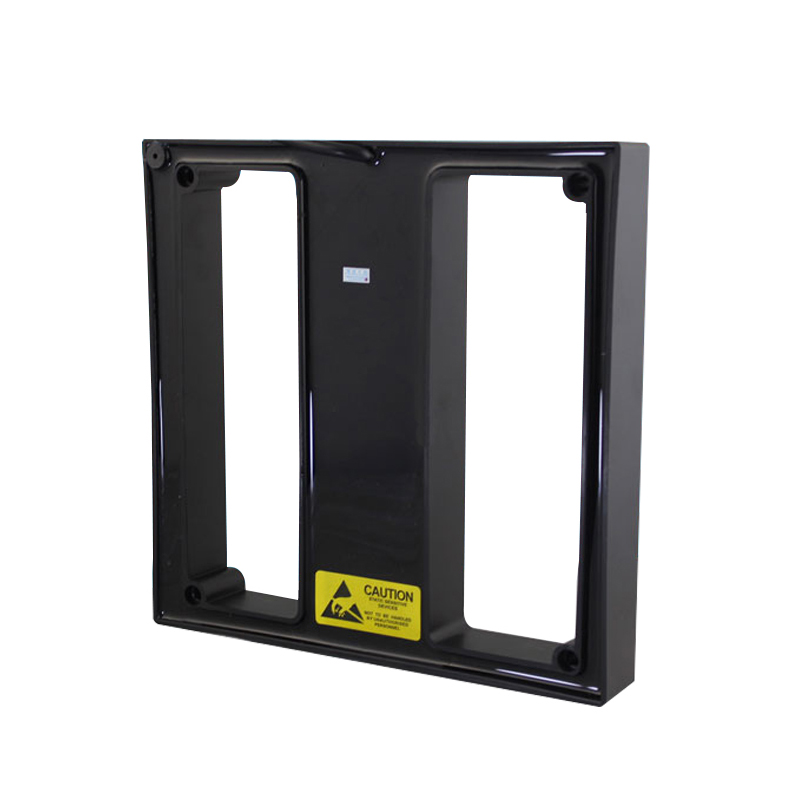

> Size: 240 x 240 x 35mm> Voltage: DC12-15V> Reading Range: 70~100CM> Operating mode: WG26/34, RS232/485> Working frequency: 125KHz /134.2KHz
125KHz workable with PCD-110series.Reading distance up to 1M
> Material: ABS> Colour: Black> Unlock Way: RFID Card> Working Voltage: DC6V (4pcs AA batteries)> Lock Size: 76*76*29.5mm
>Single door Network access control board built-in TCP/IP, Support APP/4G/Web-server with free software and SDK>1door support 2pcs RFID Access reader or 1pcs RFID reader+1pcs exit push button
> Without Signal Output> Current Draw: 12V/480mA 24V/240mA> Voltage: DC12V or DC24V> Holding Force: 350KG (800Lbs)> Lock Size: 273Lx44Wx27.5H(mm)> Armature plate: 180x45x11(mm)

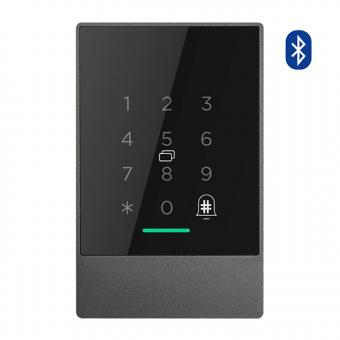

> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Dimensions: 87x87x60mm
