Dc12v Access Control Smart Card Reader

>Input voltage: DC12V

>Sensing distance: 3- 7cm

>output protocol: WG26/34

> environment humidity:20%~90%

  • Brand:

    S4A
  • Item NO.:

    PCD-98HID
  • Specifications

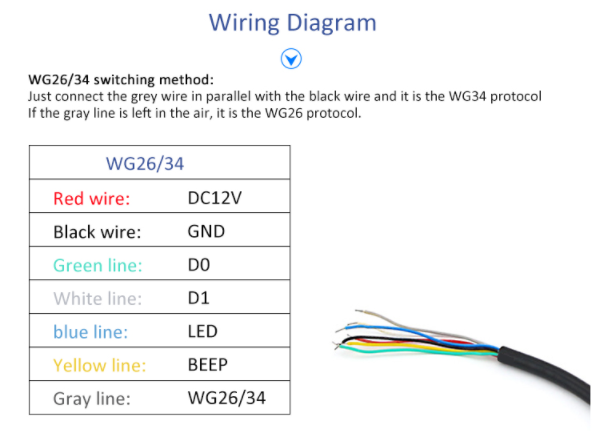

  • Wiring Diagram
  • Package
  • Download

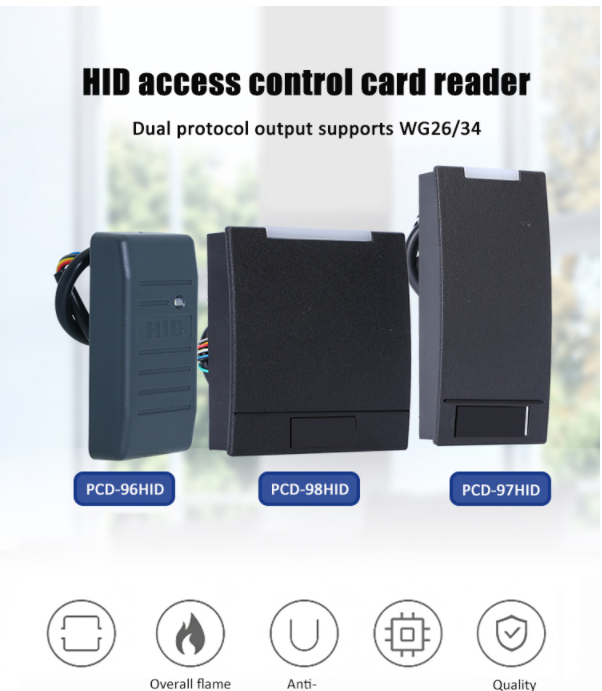

Dc12v Hid Access Control Smart Card Reader

Model No.:PCD-98HID

HID cards, also called prox cards, proximity cards & access control cards, are cards that use RFID embedded technology. HID card readers are used in access control systems to open doors.

Product color

black

Panel Material

Flame retardant PC

Input voltage

DC12V

Sensing distance

3- 7cm

output protocol

WG26/34

Card type

1326 PROXCARD II ID Card

Operating temperature

-20°C~70°C

environment humidity

20%~90%

Card Reader

Card Reader

Card Reader

S4A Datesheet_HID Card reader
