> Relay: NO NC COM
> User Capacity: 1000users
> Working Voltage: 9-24V
> Support Wiegand 26-37bits output
> APP download is available for Android only
> APP name: Ksmart
Brand:
S4AItem NO.:

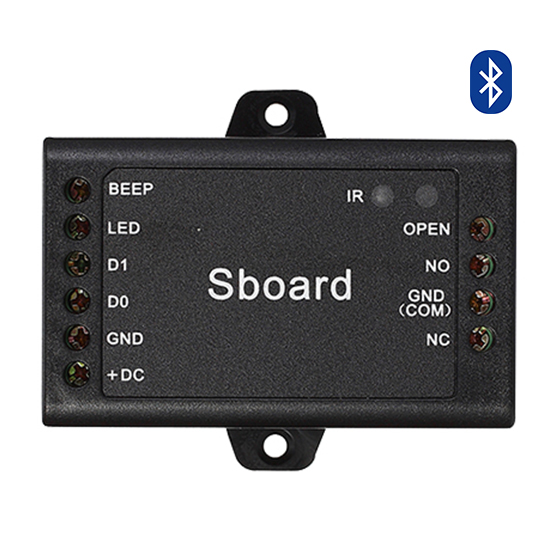

Sboard-BTBluetooth Single-door Access Controller
Model No.: Seaboard-BT
User Capacity | 1,000 |
Operating Voltage | 9~24V DC |
Idle Current | < 20mA |

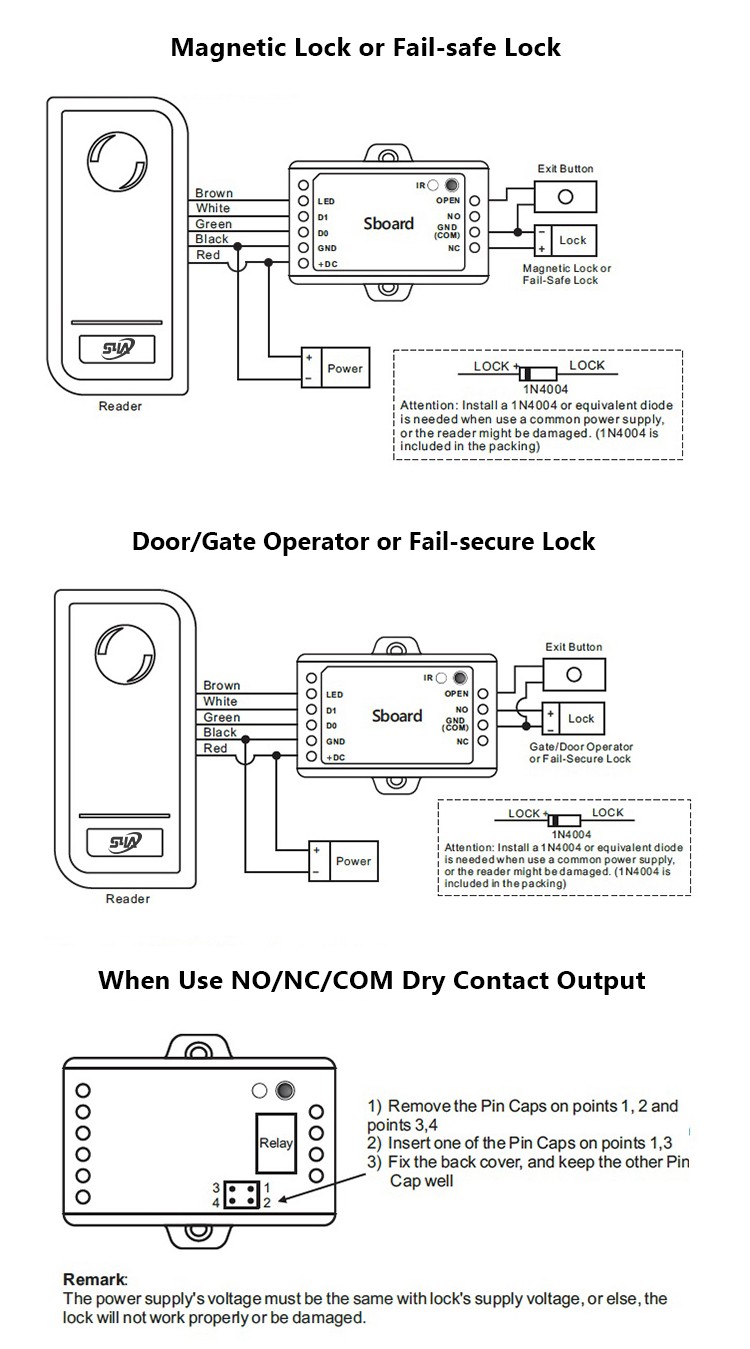

Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Wiegand Interface | |
Input | Wiegand 26~37 bits |
Output | Wiegand 26~37 bits (for user transfer) |
Environment | Indoor |
Operating Humidity | 0 ~ 90%RH |
Physical | ABS Shell |
Colour | Black |

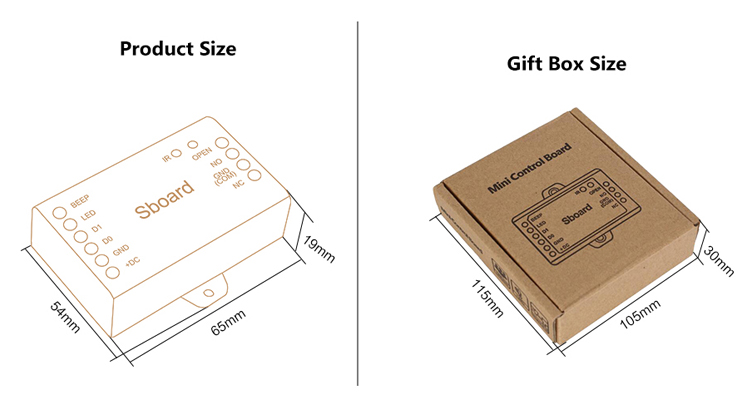

Dimensions | 6.5L x 5.4W x 1.9H (cm) |
Unit Weight | 40g |
Shipping Weight | 100g |
> Compatible with all Bluetooth-enabled mobile phones (version: 4.0 above) to access the door
> APP supports Android 4.3.
> 1,000 users, user data can be transferred
> Multi-access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
> Can connect with any reader with Wiegand 26~37 bits output
> Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output

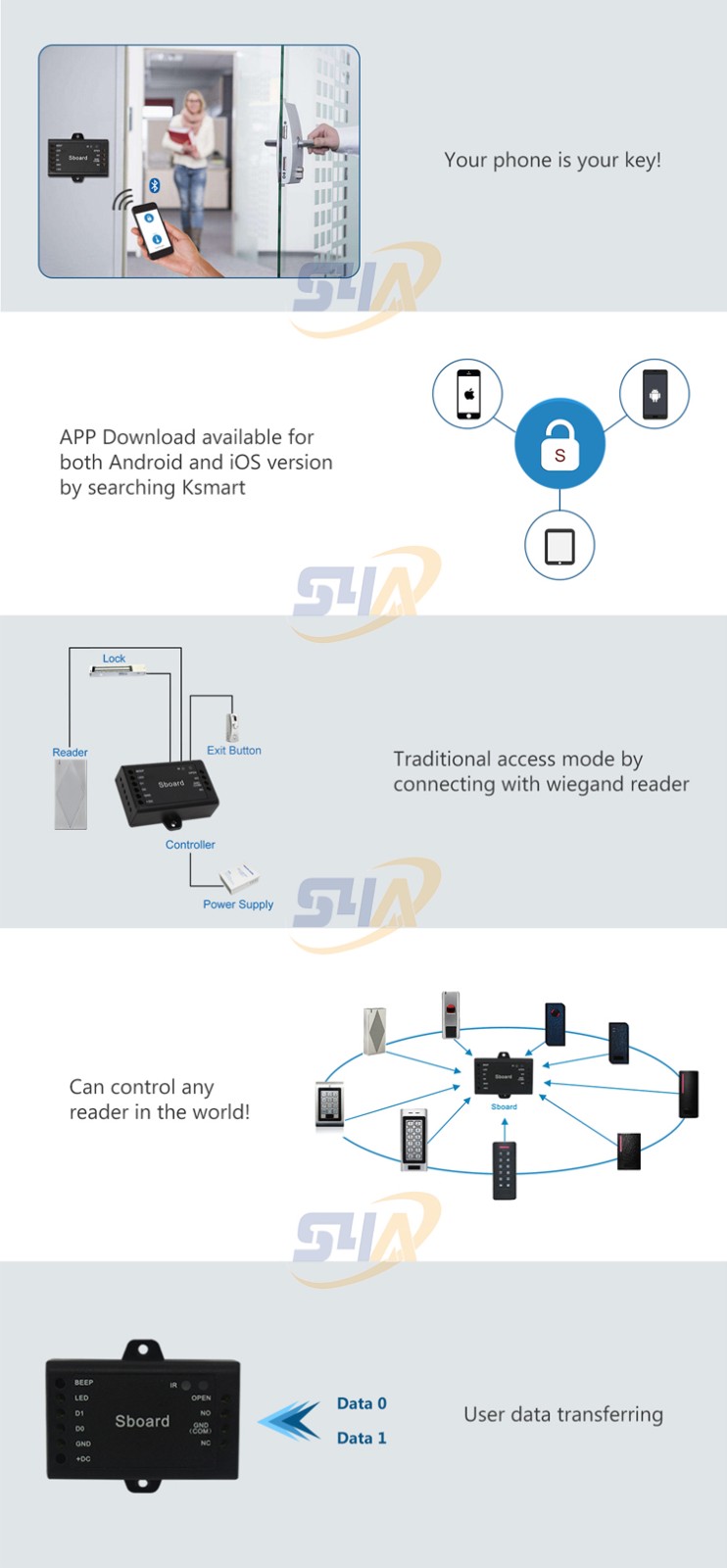

Seaboard-BT is a single door controller with an embedded Bluetooth module that can access doors by a smartphone
that is compatible with Android. It also supports to connect with any Wiegand reader with 26~37 bits output.
S4A User Manual Sboard-BT_Bluetooth Mini Door Access Controller
