What is the classification and working principle of electric mortise locks?

November 24 , 2022

What is an electric mortise lock? Maybe many people don't know what is an electric mortise lock? What are the classifications of electric mortise locks, and what is the working principle of electric mortise locks.


First. What is an electric bolt lock?


1. The electric mortise lock is an electronically controlled lock. On the premise of the cooperation of the "magnetic sheet", the extension or retraction of the "lock tongue" is driven by current to achieve the function of locking or opening the door.


2. The general electric dropbolt lock consists of two main parts: the lock body and the lock hole.


3. The key component in the lock body is the "lock tongue", which can complete the two states of "closing the door" and "opening the door" in cooperation with the "lock hole".


4. That is, the lock tongue is inserted into the lock hole to complete the door closing, and the lock tongue is released from the lock hole to open the door. Because of the retractable function of the deadbolt, it was awarded the title of "electric dropbolt lock".

 Electric Dropbolt Lock

Second. What are the classifications of electric mortise locks?


1. There are two types of electric dropbolt locks, power-on unlocking and power-off unlocking. The former is powered on and the lock is inside to open the door, and the latter is the other way around.


2. The current locks are divided into two cores, five cores and eight cores.


3. Electric mortise locks are actually also called "cathode locks", which are electric locks that open the door when power is cut off. From the wire, it is divided into two-wire electric mortise lock, four-wire electric mortise lock, five-wire electric bolt lock, and eight-wire electric mortise lock.

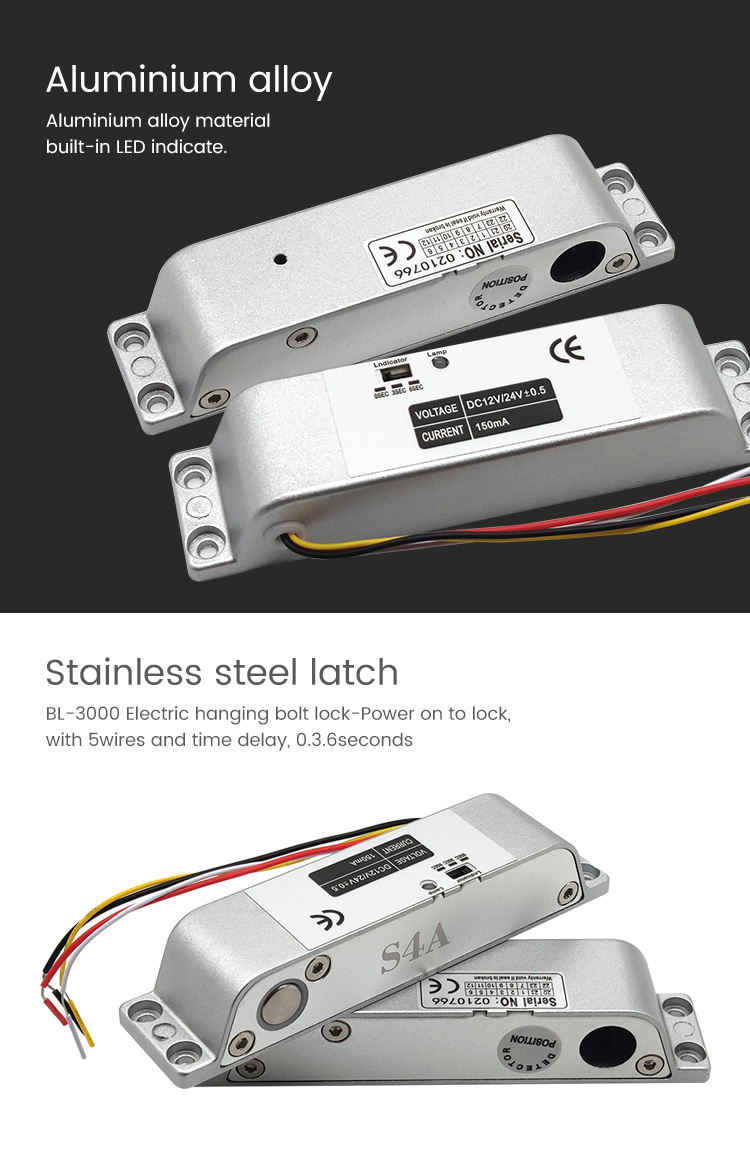

Bolt Locks For Doors

Third. Working principle of electric mortise lock


1. Principle of two-wire electric dropbolt lock: The design of two-wire electric lock is relatively simple, there are two wires, red and black, red is connected to power +12VDC and black is connected to GND. Disconnect any line, the lock will automatically retract, there is no single-chip control circuit.


2. Principle of four-wire electric dropbolt lock: there are two wires, red and black, red is connected to power +12VDC and black is connected to GND. There are also two white lines, which are the door magnetic signal lines, reflecting the opening and closing status of the door.


3. The principle of the five-wire electric dropbolt lockk: the principle of the four-wire electric dropbolt lock is the same, except that there is a pair of opposite signals of the door magnetic.

Author:Written by Ms.Vivian He from S4A INDUSTRIAL CO.,LIMITED
