The Application Of Electric Rim Lock

November 25 , 2022

Electric Rim Lock is also called a motor lock. Its unlocking and locking are not driven by electromagnets like other electric locks. The unlocking and locking of the Electric Rim Lock are driven by a motor, which is why it is also called a motor lock. The appearance of the electromechanical spiritual lock is very similar to the electric control lock, but the working principle is very different. The interior of the Electric Rim Lock mainly includes a control board, a small motor, a magnetic switch and a transmission gear, etc. The Electric Rim Lock is locked or not? The 12V power supply for unlocking is always continuous. In addition to the two 12V power supply lines, it also has one or two control lines. Special attention must be paid to this point. Many people are used to using electric control locks for the first time. The electromechanical spiritual lock only has two lock wires. As a result, the electric lock cannot be controlled during wiring and debugging.

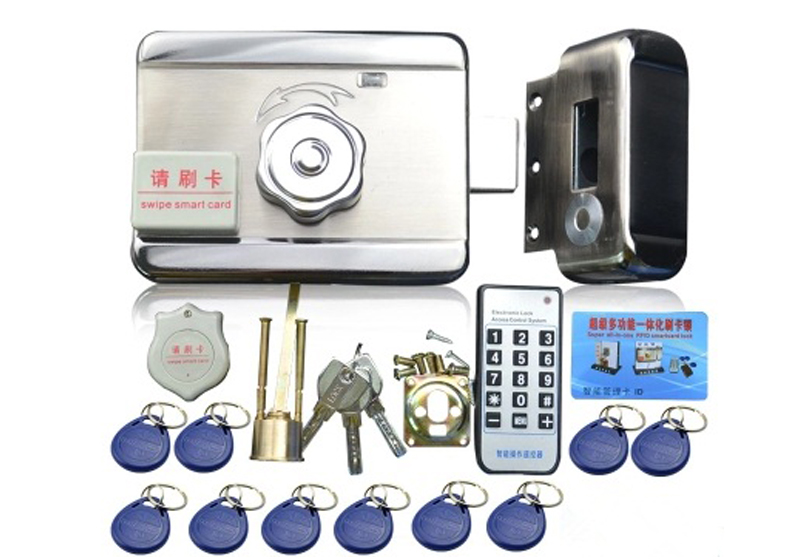

Electric Rim Lock


There are two kinds of conventional Electric Rim Lock: 3 wires and 4 wires. The 3 wires are in addition to the two power wires, and there is also a control wire. This wire and GND (some with +12V) form a group of control Switch, when the two points are turned on, it will drive the motor of the electric Rim Lock to rotate and pull the lock plug back: if it is four wires, usually there are two signal input wires outside the power wire. This Electric Rim Lock The internal gears are metal and plastic. Generally, plastic gears have less noise, while metal gears are more resistant to high temperatures, each with its own advantages and disadvantages.


The installation of the Electric Rim Lock must align the lock box with the lock body, and the deformation of the door should not be too large. Otherwise, the lock box and the lock body are not aligned, the magnetic induction switch has no output, and the electric lock cannot work normally. The installation method of the Electric Rim Lock is similar to that of the electric control lock. If the installation is to be firm, a pre-embedded bracket must be installed at the position of the electric lock. Because the key needs to be installed, the installation height is generally 80 cm-100 cm from the ground.


In addition to the electronically controlled door opening, the electromechanical spiritual lock also has manual control and external application for the internal exit. Urgent key to open the door, and some electromechanical spiritual locks have internal manual exit knobs that can use keys Locked, on special occasions, this way makes perfect sense, such as in prisons. In addition, the electromechanical spiritual lock also has the characteristics of low power consumption and high impact resistance.


There is a current of about 0.2 amps at the moment of unlocking and closing, and the rest of the time is basically not consumed Electricity, some places can even use batteries to power electromechanical spiritual locks, and most of them use Square lock tongue, the impact resistance exceeds that of magnetic door locks and ordinary electric mortise locks, the most important thing is that The spiritual lock will not automatically open even if the power is cut off for a long time. On the other hand, special circumstances can Emergency opening with a key, which makes it ideal for use in banks, prisons and gun vaults, and other occasions with higher safety requirements. Electric Rim Locks are only suitable for installation on iron doors or white steel doors. Some will also be installed on the wooden door, of course, it must be a better quality wooden door, for glass the effect of the door installation is not very good, and the electromechanical spiritual lock and the glass door do not match at all.


Whether you have any questions about purchasing or using it, you can call or email us at any time.  Email: sales@s4a-access.com


Author: Written by Ms.Anna Zhang from S4A INDUSTRIAL CO., LIMITED
