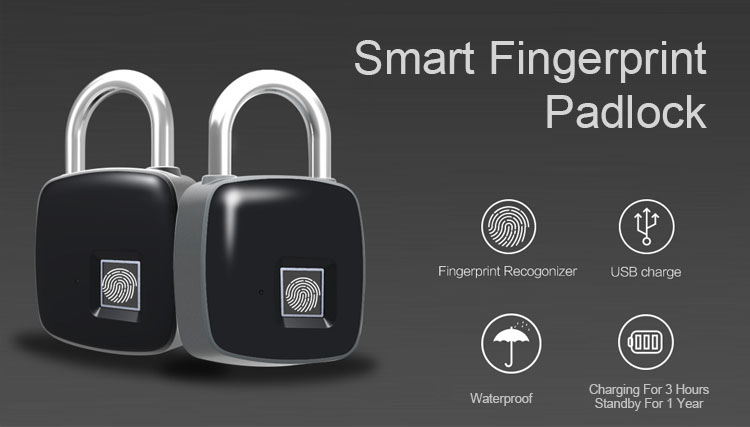

One touch to open, this fingerprint padlock lets people say goodbye to keys!
This machine can set 2 administrators, the first fingerprint and the second fingerprint, long press the fingerprint sensor for 3S in the empty fingerprint state, and enter the entry state: you can directly enter the first fingerprint (the first administrator), the second The administrator must be authorized by the first administrator before entering; other fingerprints must be authorized by the first or second administrator before entering;
When the fingerprint is not registered, any fingerprint can be unlocked; once the fingerprint is set, the illegal fingerprint cannot be unlocked!
(1) Adding a fingerprint for the first time (manager): Press and hold the fingerprint sensor for 3 seconds, the blue light will be on for a short time, and then release it after the green light flashes. Point the finger you want to set to the center of the fingerprint and press it. If the data is successfully collected, the blue light will flash once to indicate that the next data can be recorded. If the recording is not completed or fails, the red light will flash once to remind the collection Invalid, need to collect again. Repeat the successful fingerprint collection 10 times, after 10 times, the green light will be on once, indicating that the fingerprint addition is completed. During the whole process of enrolling fingerprints, the green light is flashing (indicating the state of fingerprint enrolment), but the lights of multiple colors will not be on at the same time. The touching finger requires multiple angles to collect, which is beneficial to the expansion of the database and helps the sensitivity of the judgment!
(2) Adding member fingerprints: To add fingerprints if there are existing fingerprints: press and hold the sensor for 3 seconds, the blue light will light up briefly once, then release it, and the blue light will be long on, at this time, first enter the administrator (among the two administrators) Any one) fingerprint (that is, the first or second fingerprint set), when the administrator fingerprint is entered correctly, the indicator light will change from blue solid to green light flashing, repeat the process of the first step to complete adding fingerprints.
(3) Delete all fingerprints: In any mode, press and hold the sensor for 5 seconds, release the button after the blue light turns on twice, and the red light stays on, at this time, the administrator presses the fingerprint (any one of the two administrators) , if the fingerprint recognition is normal, turn on the green light once, and all fingerprints will be deleted.
(4) Locking: Press the lock beam in the unlocked state to lock it immediately.
(5) Unlocking: In the locked state, input the fingerprint, if the fingerprint is correct, the green light is short, and the lock beam will automatically pop out to unlock. If the fingerprint is incorrect, the red light will be on briefly.
(6) Low voltage: When the voltage is equal to or lower than 3.5V, the red indicator light will flash quickly for 15 seconds; if it is always in a low power state, it will alarm once every minute.
(7) Charging: The red and green indicator lights flash alternately during charging, and the lights go out when fully charged.
