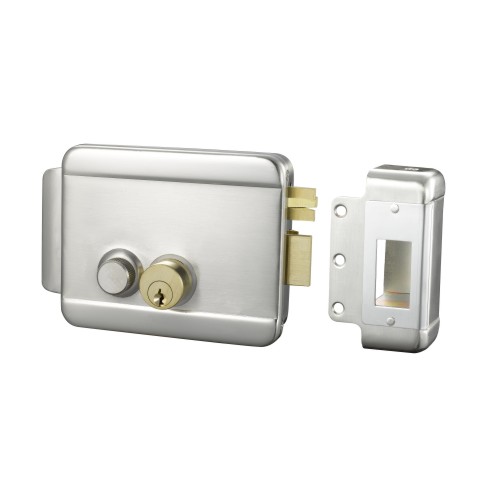

The RIM Lock is a mechanical lock device controlled by a relay. at present, a series of products with different structures have been formed, including electric mortise locks (anode locks), cathode locks (electric locks), magnetic locks, electric control locks, etc. . the terminal of the electric lock is actually an electromagnet, which controls a simple mechanical device to open and close the door.
Electric Strike lock 01
It is suitable for office wooden doors, household anti-theft iron doors, and campus classroom doors, especially for doors with cathode mechanical locks that do not want to be removed. Of course, cathode locks can also be matched with matching anode mechanical locks.
Anode lock 02
It is suitable for household anti-theft iron doors, and unit channel iron doors, and can also be used for vaults and archives iron doors. The optional mechanical key, most of which are typically closed.
Suitable for glass or iron doors of passage nature. It belongs to the normally open type, which fully complies with the fire protection specification of the access door body, that is, in the event of a fire, the door lock is powered off and opened to avoid the situation that people cannot leave in time. Including unit doors, office access doors, etc. mostly use magnetic locks.
Suitable for office wooden doors and glass doors. Most of them are of the normally open type, which fully conforms to the fire protection regulations for access doors. Electric mortise locks and magnetic locks are the main lock bodies used in access control systems.
In most cases of electric control lock installation, some accessories must be selected. Users should clearly describe the specific door body conditions and installation requirements when choosing electric control locks. The following is a detailed introduction to several accessories that may be used in the installation of electric locks.
The lower door clip matched the electric mortise lock: when the glass door body has no frame, the lower door clip must be selected. The lower door clips are generally made of aluminum alloy and are directly clipped on the door glass.
The upper and lower door clips matched with the electric mortise lock: When the glass door body is made of frameless glass up and down, the upper and lower door clips must be selected. Since the door clip requires the electric mortise lock body to be wrapped and fixed on the glass, the door clip is required to be of outstanding quality and large in size and is generally made of stainless steel. At the same time, the lower door clip must be matched with the upper door clip, which is different from the lower door clip used alone. The upper and lower door clips are more expensive.
L-shaped bracket matched with the magnetic lock: When the iron door is opened inward, it is often necessary to select the L-shaped bracket. Most of the brackets are made of aluminum alloys.
U-shaped bracket matched with the magnetic lock: When the glass door body has no frame, the U-shaped bracket must be selected. Most of the brackets are made of aluminum alloy.
Anode lock body matched with cathode lock: This kind of lock body is generally a mechanical anti-theft lock, and the lock tongue cannot be a square tongue.
