Biometric Electronic Door Opener with Smart Key Cards WG26 for Fingerprint Access Control

> Card type: EM or EM+HID Card

> Metal case, anti-vandal

> One Programming relay output

> Multi-color LED Status Display

> 1000 Users: 100 Fingerprint, 890 Card, 10 Visitor User

> Integrated alarm & Buzzer output

> Capacitive Fingerprint Sensor

  • Brand:

    S4A
  • Item NO.:

    SF4
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Biometric Electronic Door Opener with Smart Key Cards WG26 for Fingerprint Access Control

Model No.: SF4 EM, EM&HID, MF


SF4 is a Standalone fingerprint access control with an integrated card reader. IP66 waterproof version is very suitable for outdoor use, with the slim design, it is an ideal choice to install on the door frame.


Features:

> Read 125KHz EM / HID Card / 13.56MHz Mifare

> Waterproof, up to IP66

> Metal case, anti-vandal

> One Programming relay output

> Multi-color LED Status Display

> 1000 Users: 100 Fingerprint Users, 890 Card Users, 10 Visitor User

> Integrated alarm & Buzzer output

> Capacitive Fingerprint Sensor


User Capacity

1000

Fingerprint

100

Card

890

Visitor

10

Operating Voltage

12V DC

Idle Current

< 45mA

Proximity Card Reader

EM, EM&HID, Mifare

Radio Technology

125KHz Proximity Card; 13.56MHz Mifare tag / card

Read Range

1~4 cm

Fingerprint Reader

Capacitive Fingerprint Module

Resolution

500DPI

Identification time

<1S

FAR

<0.001%

FR

<0.01%

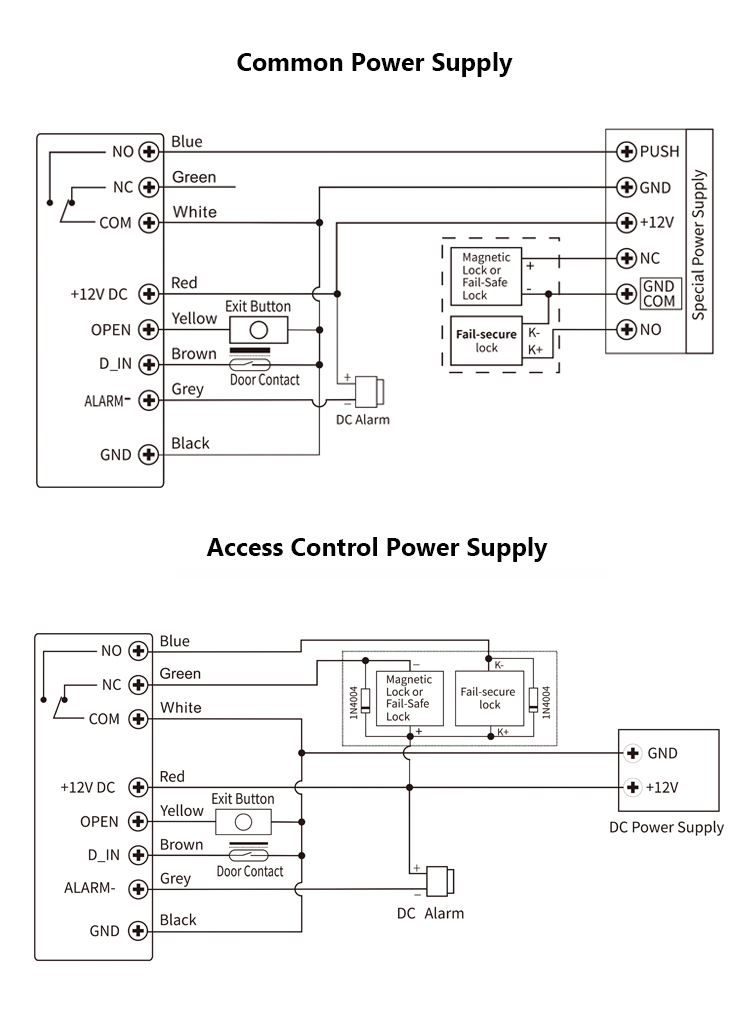

Wiring Connections

Relay output, exit button, alarm, door contact

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-30°C ~ 60°C (-22°F ~ 140°F)--Default

-40°C ~ 60°C (-40°F ~ 140°F)--Optional

Operating Humidity

10%RH ~ 99%RH

Physical

Zinc-Alloy

Color

Silver

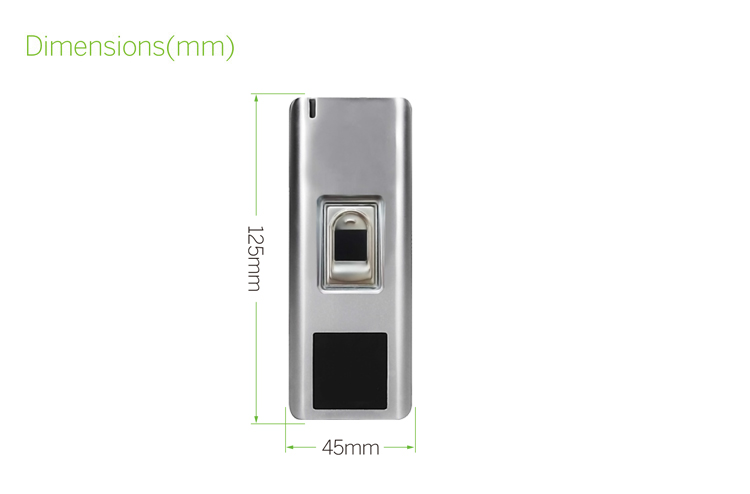

Dimensions

L125 x W45 x H25 (mm)

Unit Weight

191g

Shipping Weight

238g


Fingerprint Access Control

Fingerprint Access Control

Fingerprint Access Control

S4A User Manual SF4_Biometric Electronic Door Opener with Smart Key Cards WG26 for Fingerprint Access Control
