>Door width:1200mm
>Door weight:150kg
>Automatic opening Angle:90°- 150°/s
>Turn on hold time:1~30 seconds/s
>Openingspeed:3~6 seconds/s Adjustable
Brand:
S4AItem NO.:

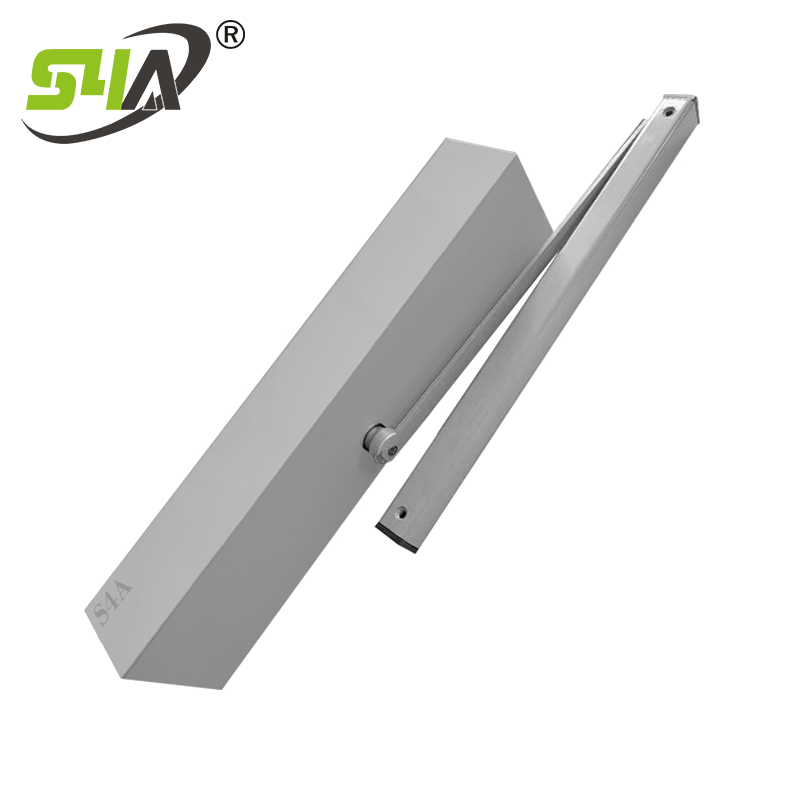

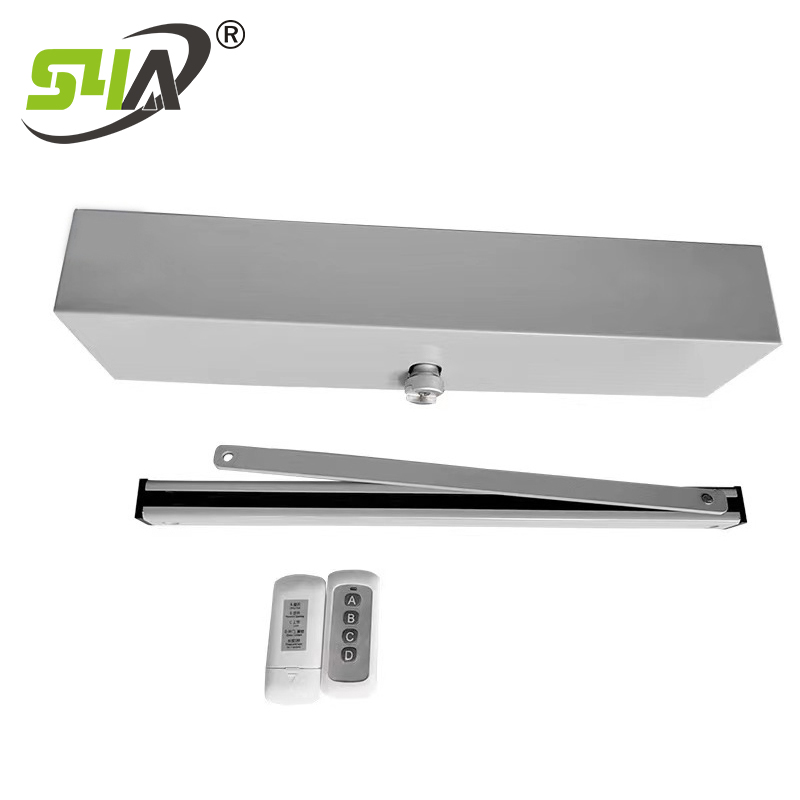

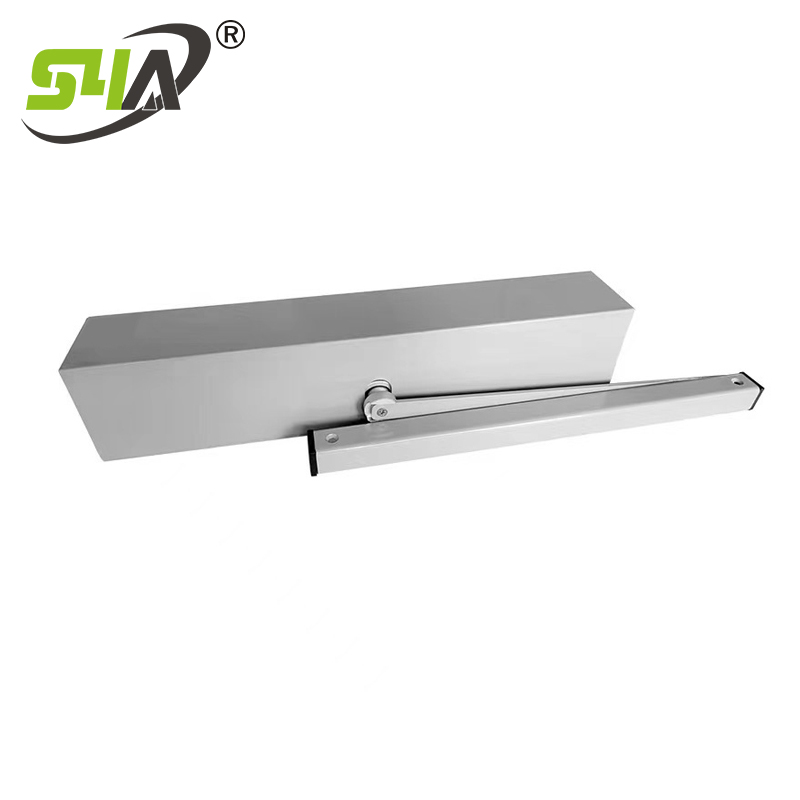

ED200Automatic Swing Door Opener with Wireless Push Button 110V-240V and 150KG holding force
Model No.: ED200
Product Features

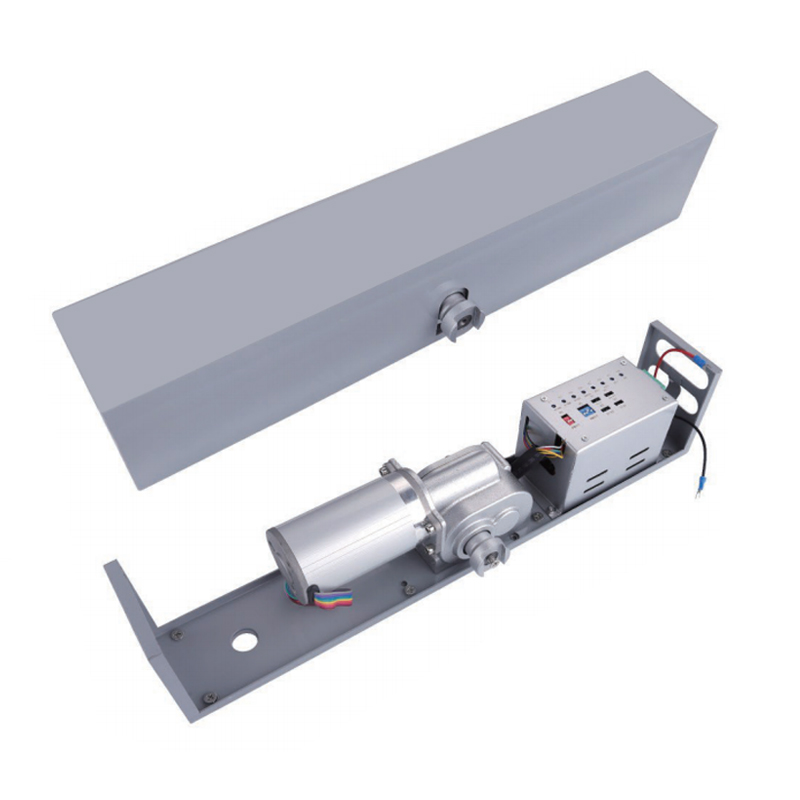

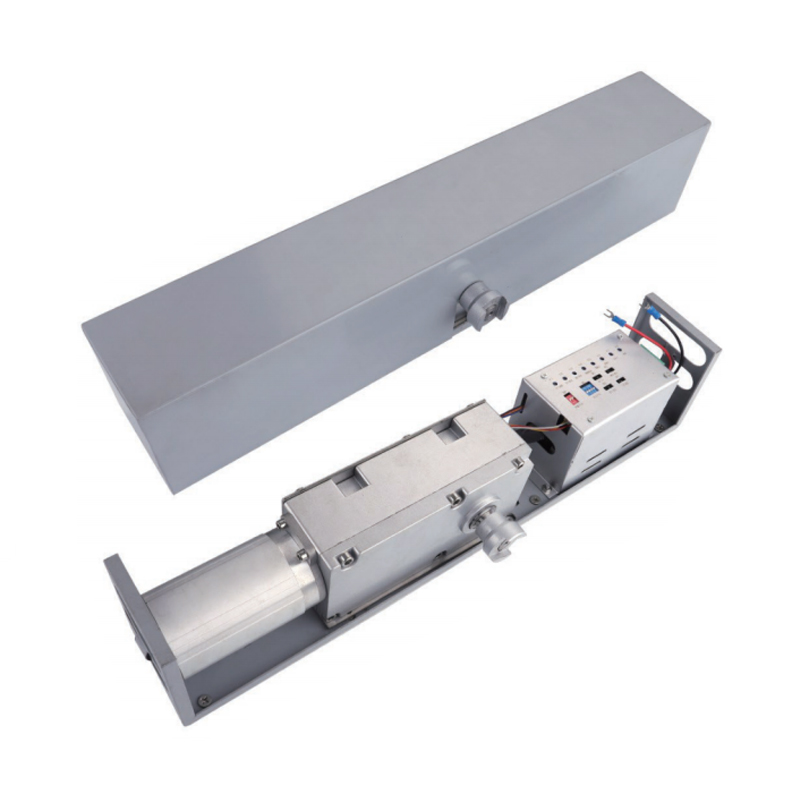

A.Adopting encoder brushless motor worm gear technology, ultra-quiet operation
B. Multi-function interface, full-featured remote control technology with double-door interlocking, position feedback, and other functions
C. Push-to-open function, safety protection function for closing the door in the reverse direction
D. It can be used with manual remote control, sensors, buttons, access control, etc
E. The opening force and closing check setting of the door can be adjusted to better adapt to the weight and position of the door
F. Its ultra-quiet operation mode is especially suitable for noise-sensitive occasions (operating room doors, hospital access doors, The doors of senior consulting rooms, public offices, secret institutions, business hotels, senior apartments, leaders' offices, and so on.
G. Can be used as fire linkage control for normally open or normally closed doors, with fire fee-dback signal
Applicable swing doors | Swing door ofvarious materials |
Door width | 1200mm |
Door weight | 150kg |
Automatic opening Angle | 90°- 150°/s |
Turn on hold time | 1~30 seconds/s |
Openingspeed | 3~6 seconds/s Adjustable |
closing speed | 3~6 seconds/s Adjustable |
Automatic overload protection | No |
Intelligent obstacle protection | Have |
Remote control function | Full-featured password remote control |
Alarm in case of obstacle | Have |
Intelligent overheat protection | Have |
Closing buffer function | Have |
Control electric lock function | adjustable |
Door lock force adjustment function | Have |
Door opening buffer function | Have |
power supply | Ac110-220V |
Input power Static/Maximum | 65W |
Main engine dimensions | 450X85X100mm |
S4A Datesheet_Automatic Swing Door Opener with Wireless Push Button 110V-240V and 150KG holding force
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Panel: Aluminium magnesium alloy> Handle: 304 Stainless Steel> Colors: Silver/Golden/Red Bronze/Wooden Heart Mix> Surface treatment: PVD/drawing
> Support 500 PIN/card users/4-8 digits PIN, 125KHz EM Card> With two Standard Remote Transmitters> 433MHz Rolling Code technology> Communication distance: 50m Max> Ultra low power consumption
> Communication way 433MHz(±500KHz) > Power Wireless lock: 4pcs AA batteries> Transmit: 1pcs lithium battery> Working distance Within 5 meters> Door-opening Angle 180°> With Door Magnetic sensor
> Metal design & Waterproof Keypad, Can install it in outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Metal design & Waterproof Keypad, can install outside> 433MHz Rolling Code technology> 500PIN/card users> 4~8 digits PIN, 125KHz EM card> Communication distance: 50m Max> Open/Close by Keypad, transmitter, or touch the lock
> Wire diameter: 8mm> Door loop length: 400mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
