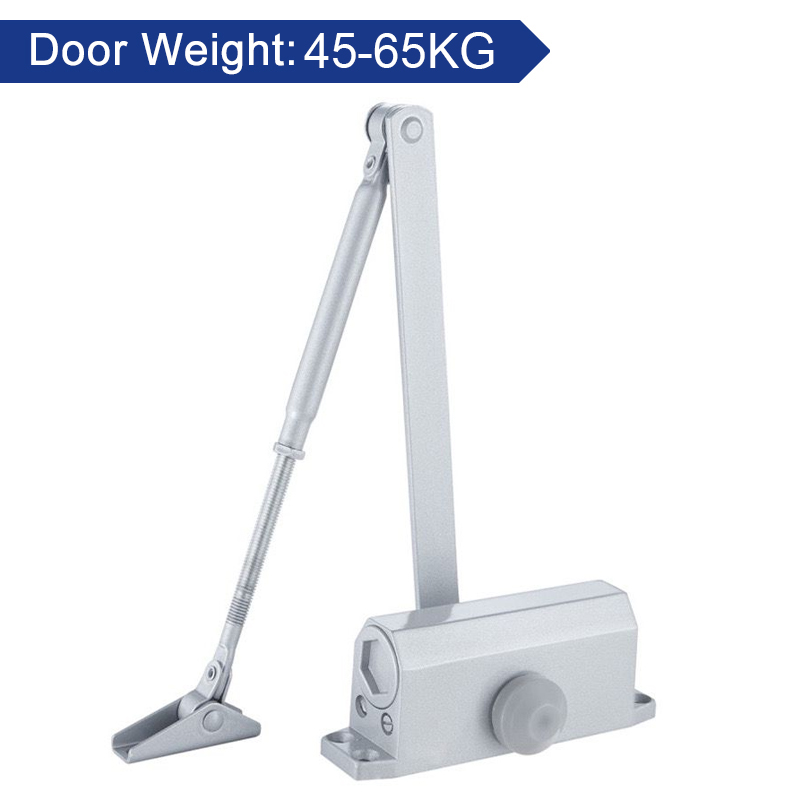

ANSI Fire Rated America Style Heavy Duty Door Width 1000 Door Closers

>Applicable door width: 600-900mm

>Applicable door weight: 45-65kg

>Heavy duty: 80kg

  • Brand:

    S4A
  • Item NO.:

    DL-60
  • Specifications
  • Wiring Diagram
  • Package

ANSI Fire Rated America Style Heavy Duty Door Width 1000 Door Closers

Model No.: DL-60


Applicable door width

600-900mm

Applicable door weight

45-65kg

Heavy duty

80kg

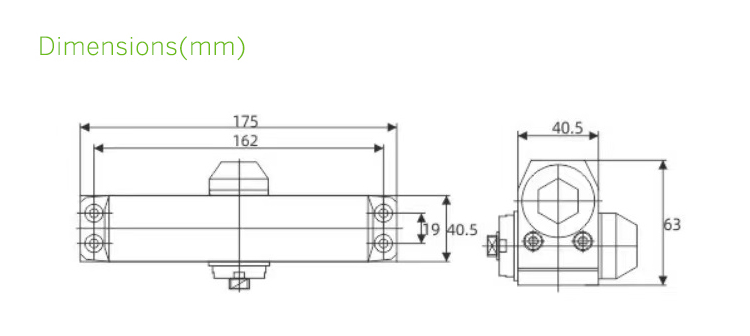

Installation size

162x19mm

Maximum door opening angle

150°, with two types: 90° positioning with stop function and fully automatic


Application:

The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.


Functional:

A. Economic type door closer of residential and commercial

B. Performance standard: QB/T 2698-2013

C. Two speed control valve,adjusting closing speed and latching speed

D. ADC12 environmental production of aluminum alloy casting body


Product Details:

1. Cycle test: up to 500,000 cycles

2. Hydraulic oil: low-temperature resistance to -45℃

3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken

4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance

5. Power Size EN4/5

6. Positioning Function Optional

7. Back-check function Optional

8. Manufactured under strict observation of EN1154 standard

9. Precise sealed, preventing oil leakage

10. High quality die-casting aluminum alloy, protected with two-layer bright paint.

11. Two hydraulic press valves controlling two stage doors closing automatically.

12. It can be installed on the door plate or installed on the doorframe.


Packaging:

Polybag inside, carton box outside, each carton is less than 25kg.(Or according to the customer request)


door closer

door closer

door closer

door closer


ANSI Fire Rated America Style Heavy Duty Door Width 1000 Door Closers

Model No.

Quantity/Carton

Gross Weight

Carton Size

DL-60

20pcs

22.32KG

41X29X26cm

door closer
