Categories
> Control 4 door, 4 readers
> Communication Protocol: TCP/IP
> Door control: 4 doors, 4pcs relay
> Power Supply Input: 12V DC
Brand:
S4AItem NO.:

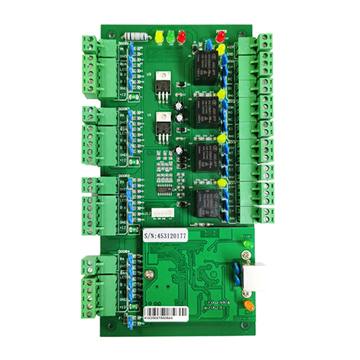

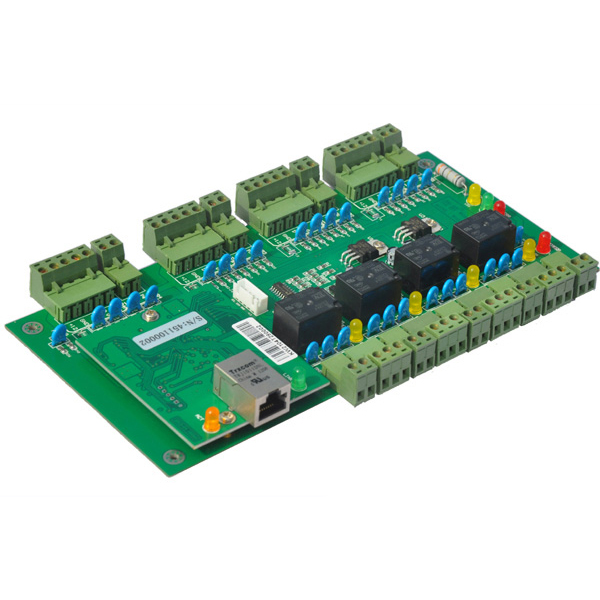

ACB-W4Access Controller, Network TCP/IP Access Control Panel Board Reader for Wiegand 4 Door Use
Model No.: ACB-W4
What is Access Control?
Access control is focused on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.

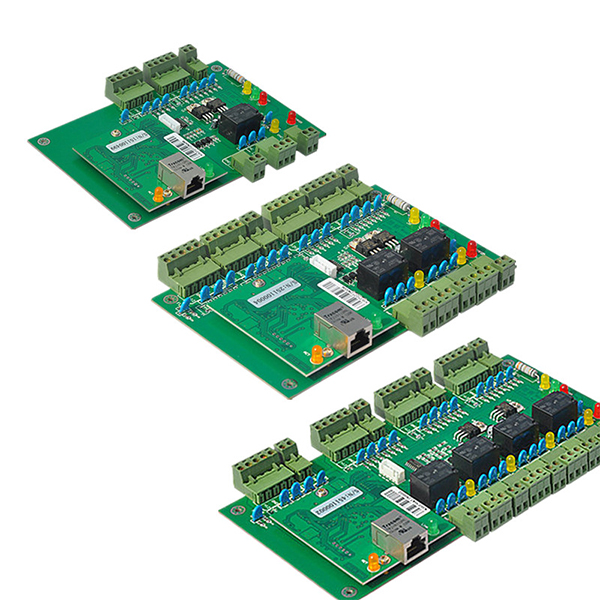

Parameter | One-door TCP/IP Network Door Controller | Two-door TCP/IP Network Door Controller | Four-door TCP/IP Network Door Controller |
Model # | ACB-W1 | ACB-W2 | ACB-W4 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping a card or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get outdoor by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
Access Controller, Network Tcp/ip Access Control Panel Board Reader for Wiegand 4 Door Use | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
ACB-W4 | 80pcs | 20.9KG | 21.22KG | 63x52x32cm |
ACB-W4 Access Controller, Network TCP/IP Access Control Panel Board Reader for Wiegand 4 Door Use
> Control 1 door, 2 readers> Communication Protocol: TCP/IP> Door control: 1 door, 1pcs relay> Power Supply Input: 12V DC
> Control 2 door, 4 readers> Communication Protocol: TCP/IP> Door control: 2 doors, 2pcs relay> Power Supply Input: 12V DC

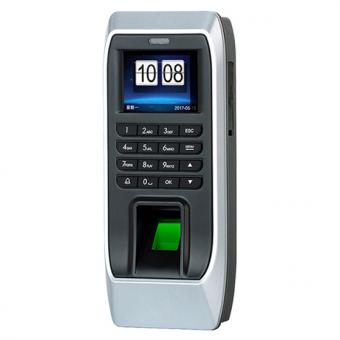

> Finger Capacity: ≤200> User Capacity: ≤240> Work with 4pcs 1.5V "AA" alkaline battery> Fingerprint Sensor: Semiconductor(Support: Fingerprint+RFID+Pincode)
>Fingerprint capacity:100 pieces>Password capacity:250>Swipe card capacity:1000
>Hoses inner diameter: 16mm>Hoses outer diameter: 20mm>Pass 4 network cables

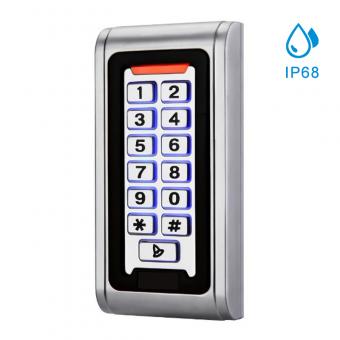

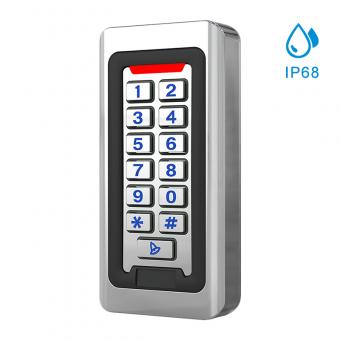

> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Read 125KHz EM / 13.56MHz Mifare (Factory default: EM 125KHz)> Metal backlight keypad> Contains card reader mode. The transmission format could be adjusted by user.
> Two Accesses: Fingerprint, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
