Categories
> DC12V, DC24V(optional)
> Frequency: 315MHz, 433MHz(optional)
> Dimensions: 62x43.5x30mm
Brand:
S4AItem NO.:

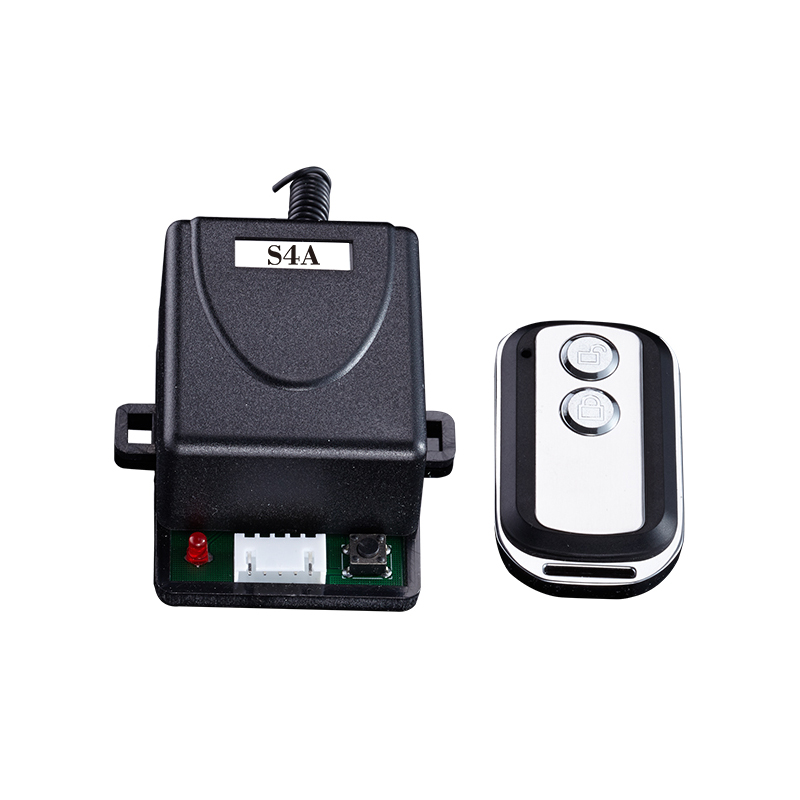

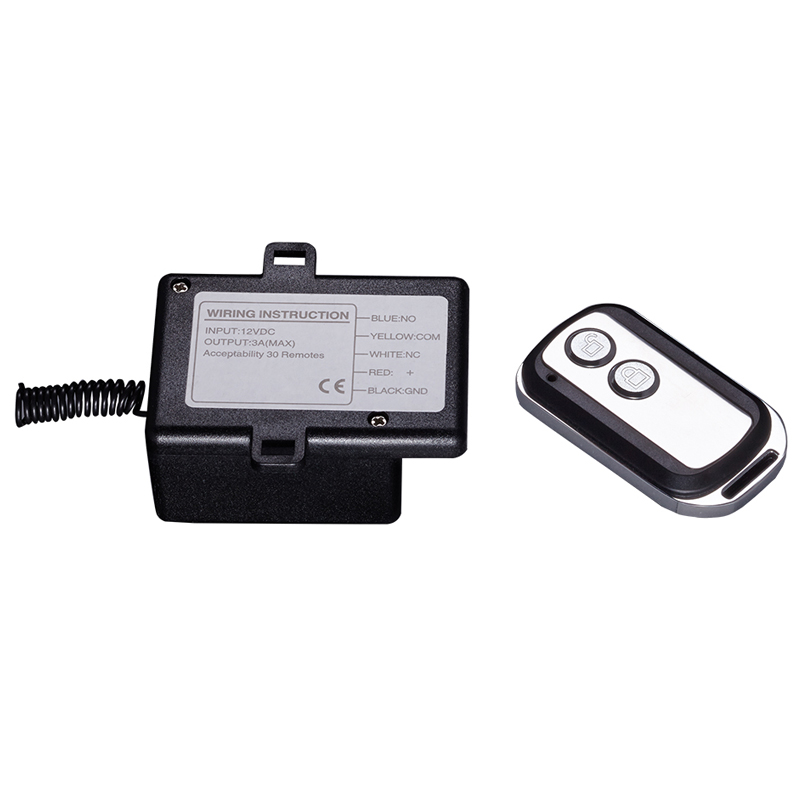

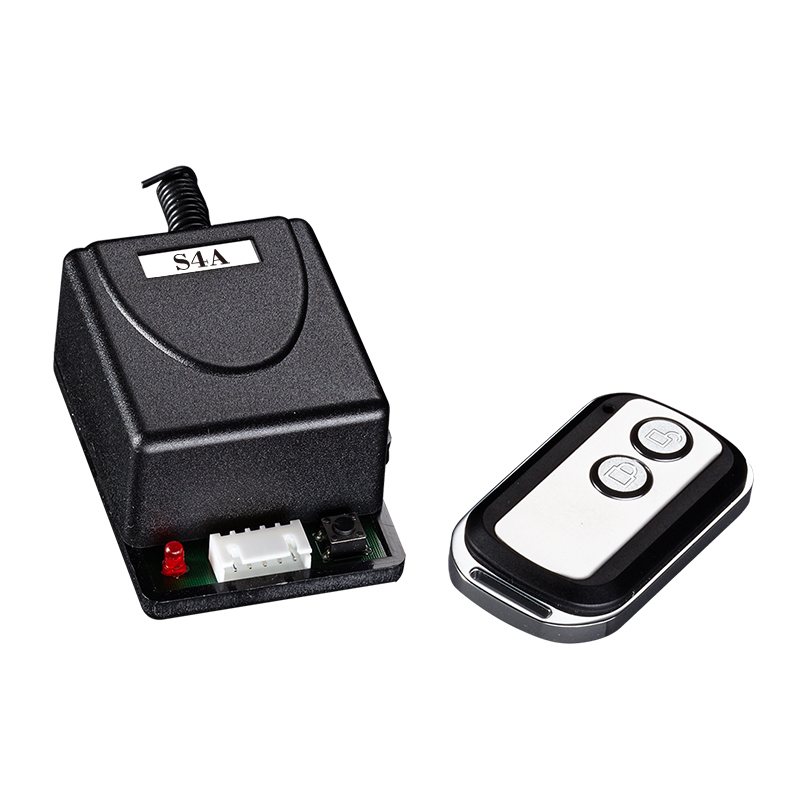

EB-405Access Controller 433MHz Remote Control Wireless Receiver
Model No.: EB-405
EB-405 is the remote control dedicated to Access Control .with metal transmitter for access control. It can be Embedded in the wall easily and be controlled sensitively.
Voltage | DC12V, DC24V(optional) |
Frequency | 315MHz, 433MHz(optional) |
Static current | ≤9mA |
Sensitivity | ≤-105dBm |
Contact current | ≤10A |
Working temperature | -40℃~80℃ |
Receiver capacity | 30(learning &fixed code)、6(rolling code) |

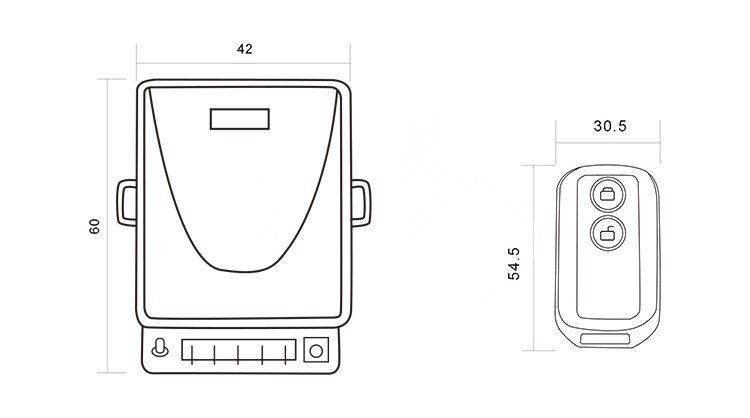

Dimensions | 62x43.5x30mm |
S4A User Manual EB-405_Access Controller 433MHz Remote Control Wireless Receiver
