Access Control 125KHz RFID Reader Card Security Door Access Controller

> Card type: EM Card

> Metal case, anti-vandal

> Waterproof, conforms to IP66

> One relay, 2000 users, standalone

> Pulse mode, toggle mode

> Built in LDR for anti tamper

> Card block enrollment

  • Brand:

    S4A
  • Item NO.:

    S8
  • Specifications

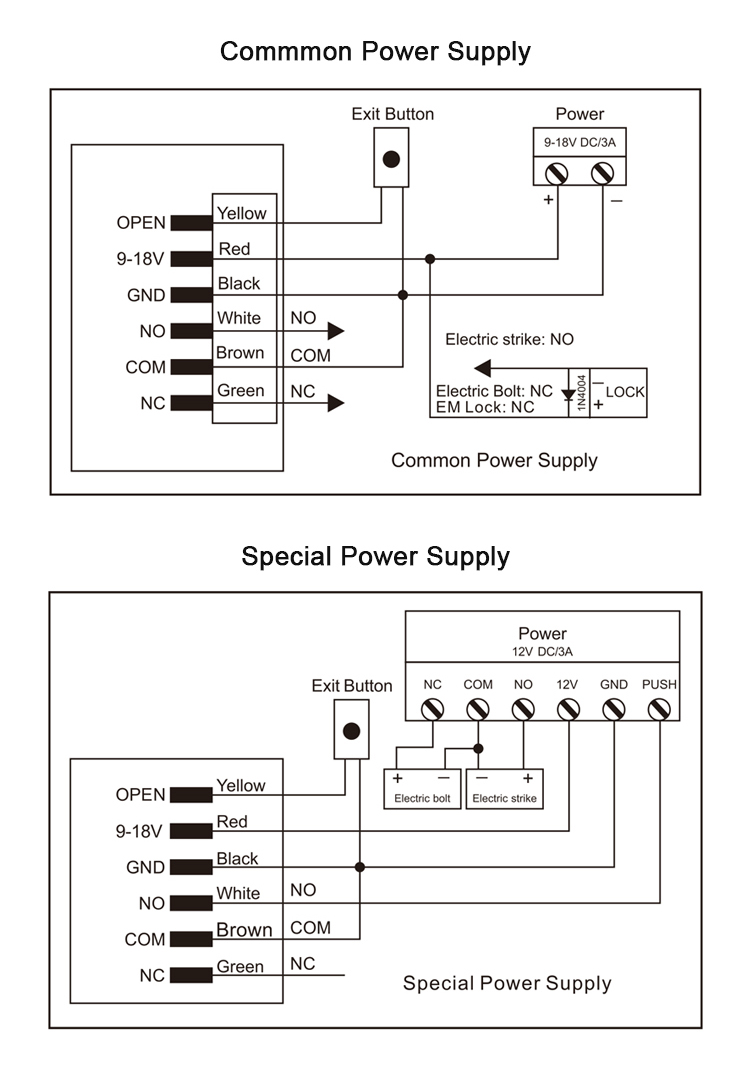

  • Wiring Diagram
  • Package

Access Control 125KHz RFID Reader Card Security Door Access Controller

Model No.: S8 EM


What is access control keypad?

Access control keypad locks offer basic access control capabilities. Typically programmed by visiting the door, these locks provide security using keypad only. Keypad locks come in a variety of forms, including the Yale nexTouch lock, which has a digital touch screen similar to a smartphone.


The S8-EM is a compact, waterproof stand-alone programmable mini access control system that provides proximity entry. The product unique feature is simple in design, easy operation, and high reliability.


Features:

> Metal case, anti-vandal

> Waterproof, conforms to IP66

> One relay, 2000 users, standalone

> Card type: 125KHz EM card

> Pulse mode, toggle mode

> Built in LDR for anti tamper

> Card block enrollment


User Capacity

2000

Card

EM Card

Operating Voltage

9~24V DC

Idle Current

< 40mA

Proximity Card Reader

EM

Radio Technology

125KHz

Read Range

3~10cm

Wiring Connections

Relay output, exit button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0-99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-40℃~60℃ (-40°F~140°F)

Operating Humidity

20% RH ~ 98% RH

Physical

Zinc Alloy

Surface Finish

Powder Coat

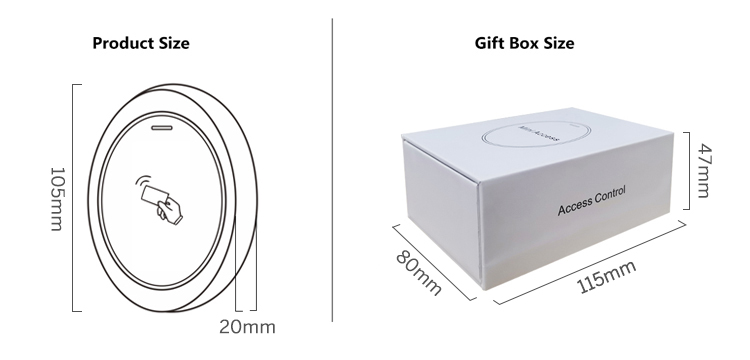

Dimensions

L105mm x W69mm x H20mm

Unit Weight

220g

Shipping Weight

280g


Door access controller

Door access controller

Door access controller
