> 433MHz Rolling Code technology
> Card type: 13.56MHz Mifare card
> Receiver: 26 bits or 34 bits
> Waterproof, conforms to IP65
Brand:
S4AItem NO.:
WR1-B433MHz Waterproof Wireless Access Control Keypad Kit RFID Access Control System
Model No.: WR1-B
Wireless Reader | Card Type | 13.56MHz Mifare card |
Operating Voltage | 3 units of AAA batteries | |
Idle Current | ≤5uA | |
Working Current | ≤35mA | |
Reading Distance | ≤3cm | |
Communication Frequency | 433MHz | |
Communication Distance | 30m Maximum | |
Operating Temperature | -20'C ~ +60'C (-4'F ~ +140'F) | |
Operating Humidity | 0% ~ 86% | |
Index of Protection | IP65 | |
Colour | Black, White optional | |

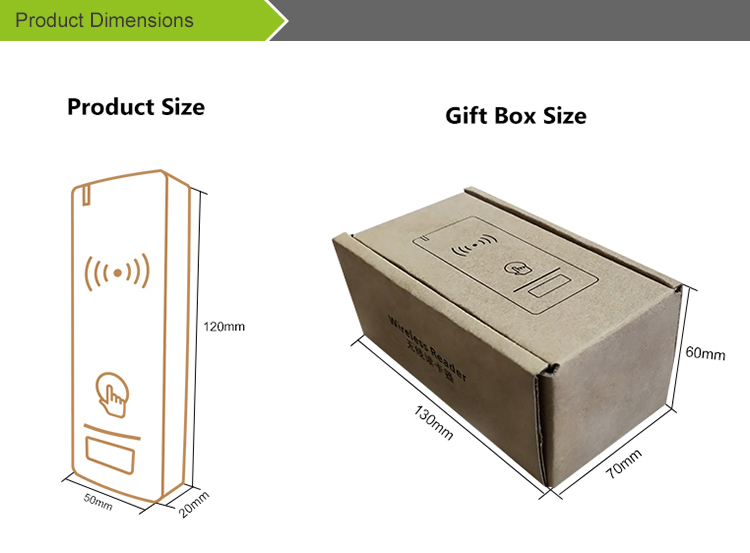

Dimensions | L120 * W50 * H20(mm) | |
Net Weight | 88g | |
Receiver | Operating Voltage | 12V DC |
Working Current | ≤15mA | |
Communication Frequency | 433MHz | |
Wiegand Output Format | 26 bits Or 34 bits (Default is 26 bits) | |
Operating Temperature | -20'C ~ +60'C (-4'F ~ +140'F) | |
Operating Humidity | 0% ~ 86% | |
Dimensions | L25 * W50(mm) | |
Net Weight | 10g |

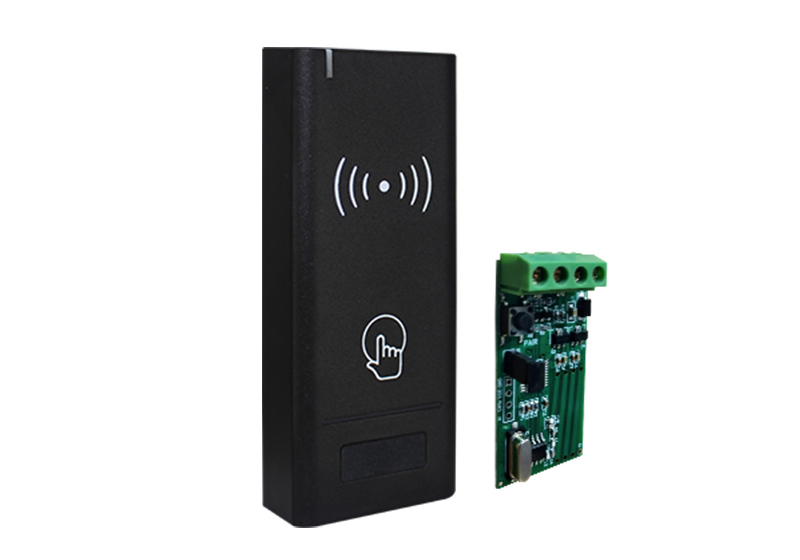

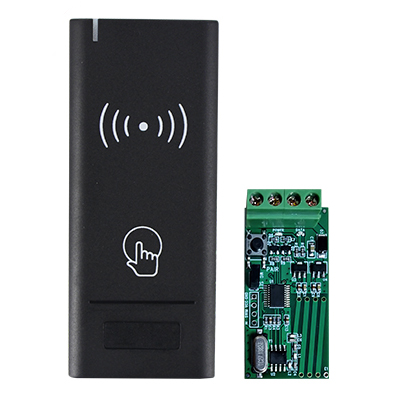

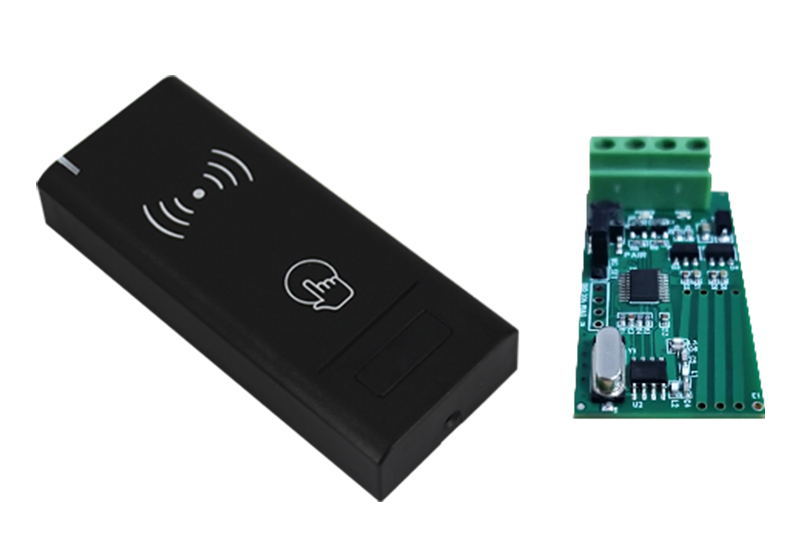

The wireless Reader Kit includes a Wireless Reader and a Receiver. 433MHz Rolling Code of encryption algorithm guarantees higher-secure, programmable Wiegand output of the Receiver makes it can work with most Wiegand controller in the world. Super-strong 3M stickers provide a simple way of installing the Wireless Reader.
Because of ultra-low power consumption, the battery of Wireless Reader can work as long as 6 months.
(bases on 30 times/day)
S4A Datasheet_433MHz Waterproof Wireless Access Control Keypad Kit RFID Access Control System
