Access Control Exit Button

1.7mm Stainless steel Release button

/304 Stainless Steel Exit Button with LED

New Products

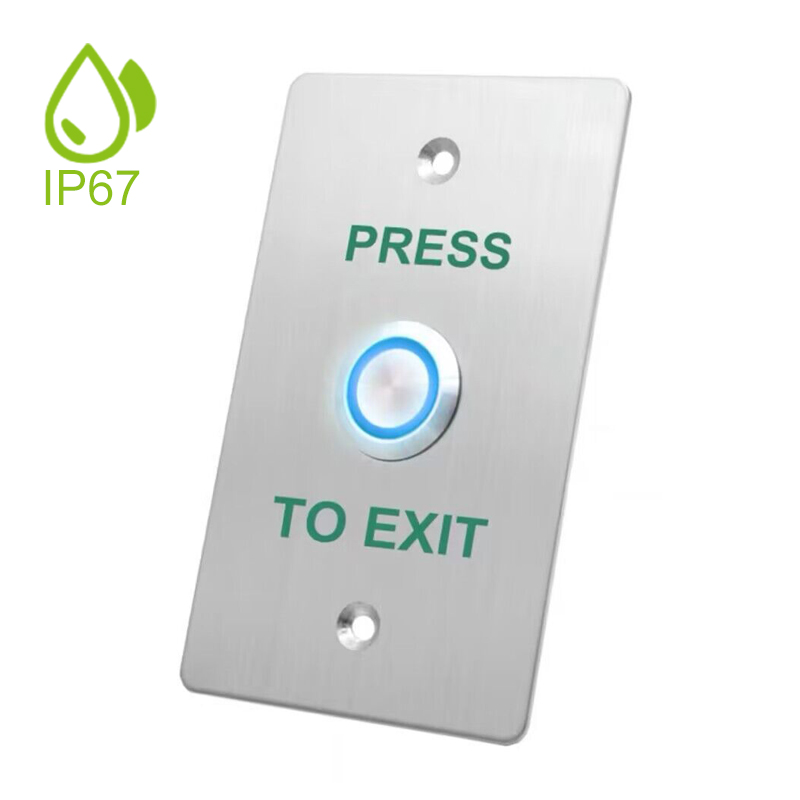

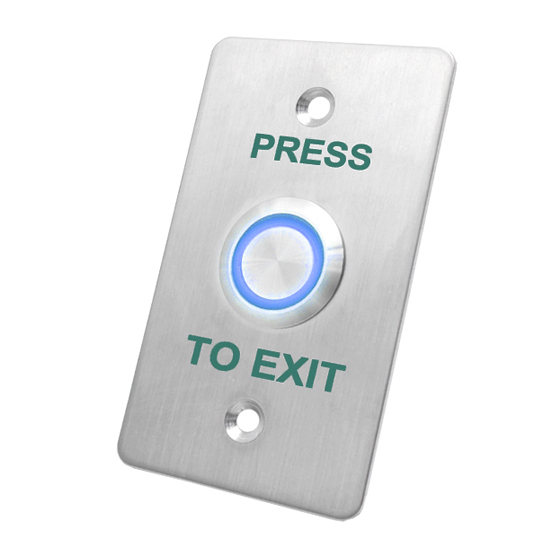

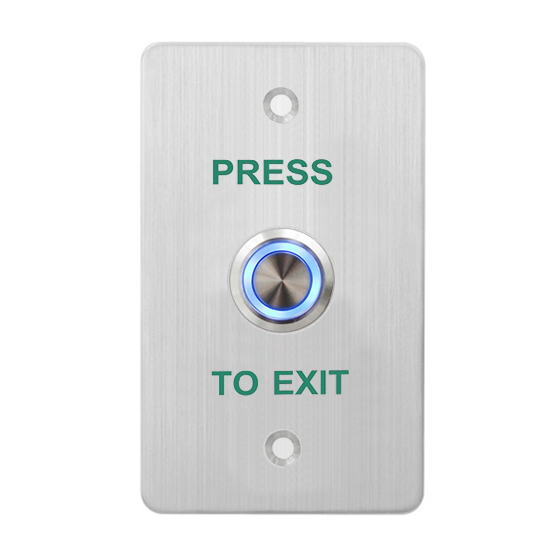

304 Stainless Steel Exit Button with LED

Dimension: 115x70mm

Brand:
S4A
Item NO.:
EB-SW70L

Inquire Now

Specifications

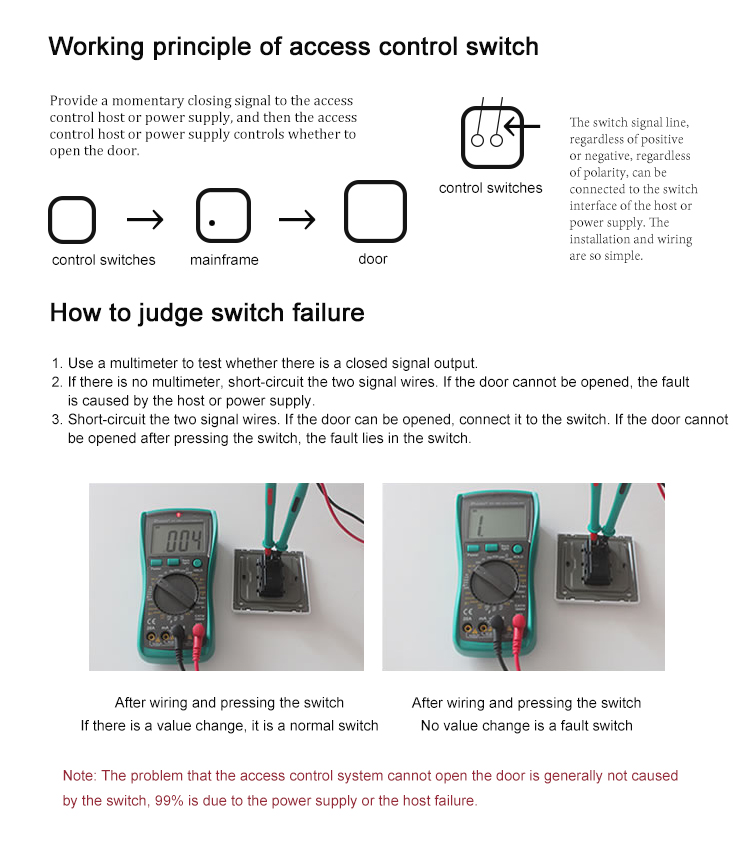

Wiring Diagram
Package
Download

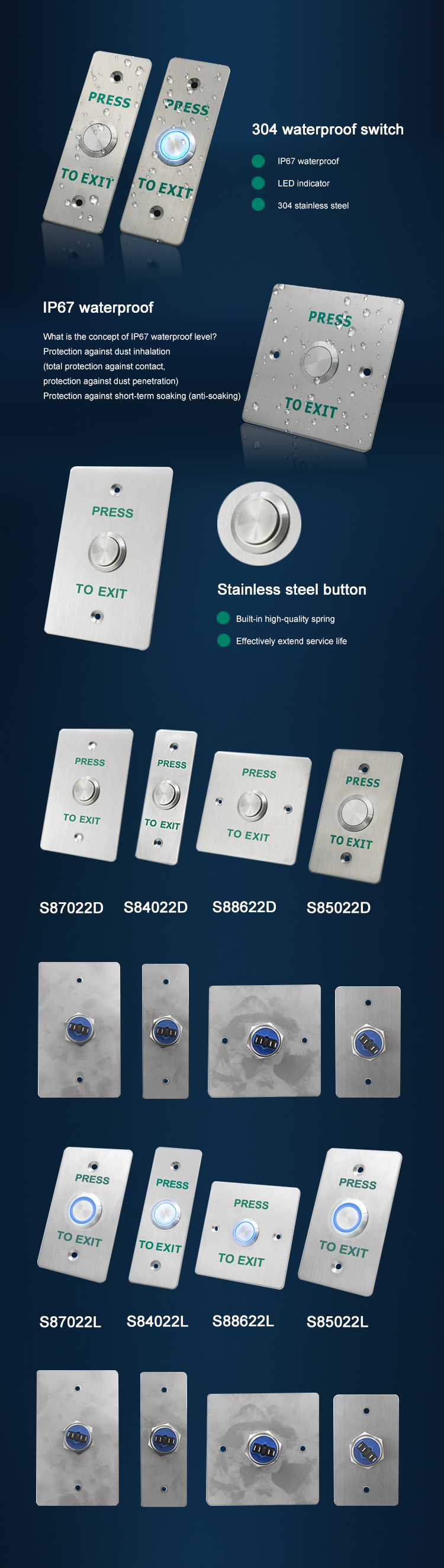

IP67 Waterproof Exit Button (304 Stainless Steel)

Model No: EB-SW70L

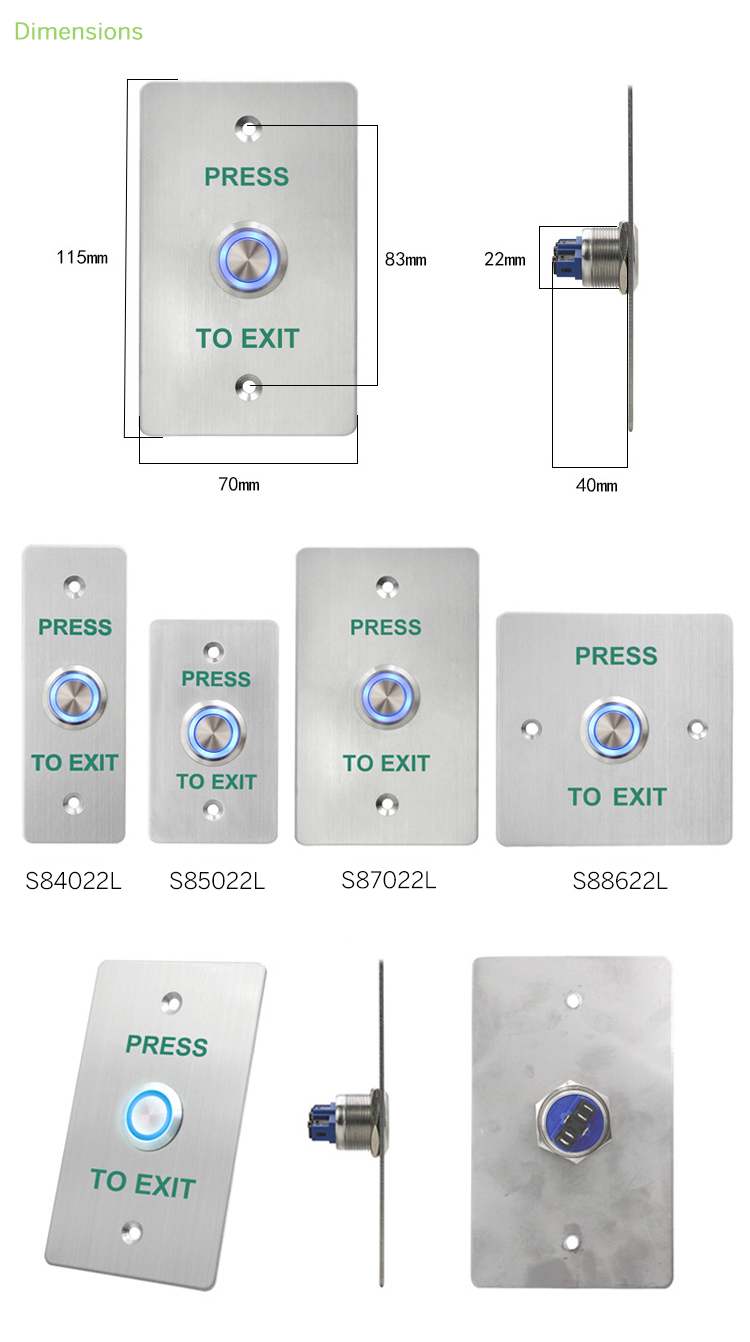

Dimensions	115x70mm
Panel material	1.7mm thick, 304 stainless steel brushed panel
Button material	304 stainless steel, silver cobalt
Waterproof	IP67
Current Rating	3A, 36VDC
Voltage	DC12
Output	6wires (NO/COM/NC/COM/+12V/GND)
Mechanical Life	1000000 tested
Weight	0.14KG

Stainless Steel Exit Button

S4A_Datesheet_304 Stainless Steel Exit Button with LED

Download
