> User capacity: 500
> Communication: RS485 port
> Dimension: 145x80x30mm
> Working with master machine TFS30 only
Brand:
S4AItem NO.:

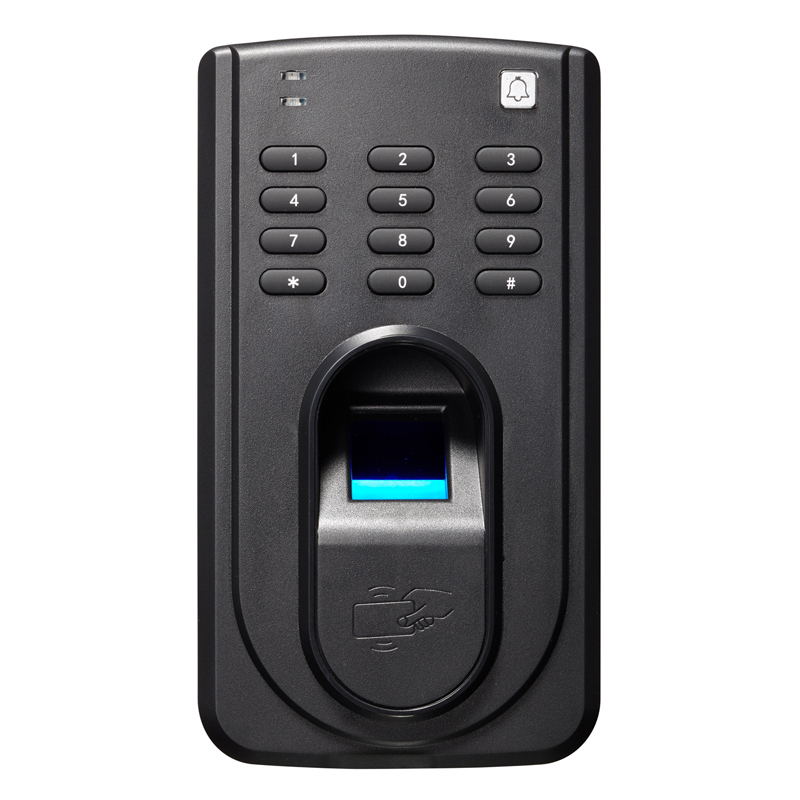

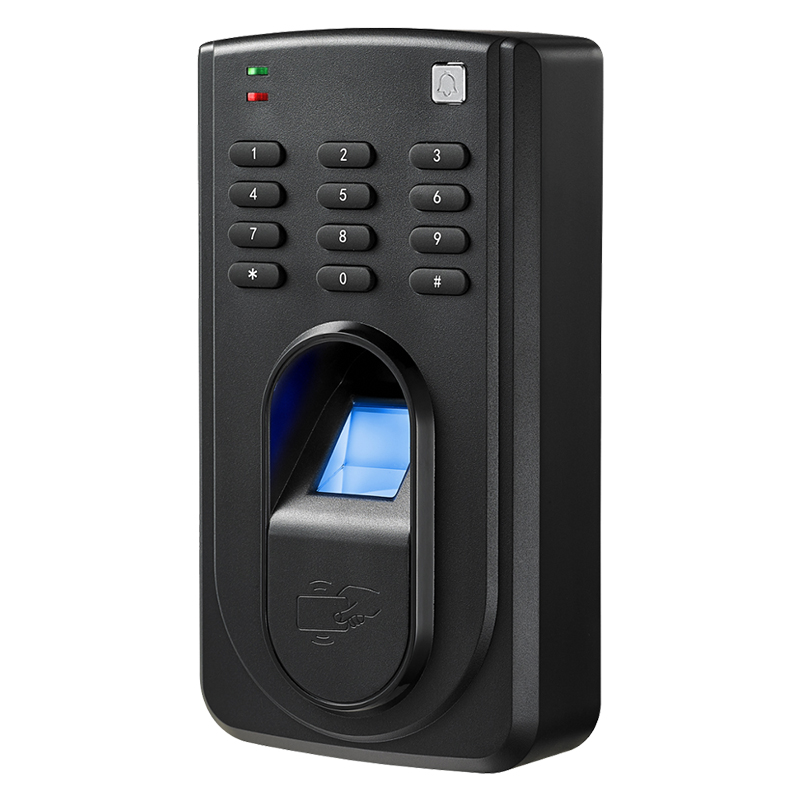

TFS303Fingerprint RFID Reader with RS485
Model No: TFS303
Working with master machine TFS30 only
What is Fingerprint access control?
Fingerprint access control is considered as the most reliable and secure access control method as every human being has distinct structures on fingers. with software to manage all users and record, In fingerprint access control, the fingerprint system first reads the print of the finger and matches it against the digital print image that has already been taken and stored in the database.
Advantages:
Dual Identification support Fingerprint&Card, Workable with TFS30 Fingerprint access control only, with anti-passback functions together to make dual security for doors, suits for finance, backing and top building and enterprise.
Features:
> Dual reader indoor use only, dual identification, support fingerprint+card+pin multi combination together.
> Support Multi admin setting and Multi department management together.
> Built in TCP/IP to connection with server to manage the records in realtime.
Algorithm | Thbio-3.0 |
Verify mode | 1:N |
User capacity | 500 |
Log capacity | 100,000 |
Response time | ≤1.0 |
FRR(false reject rate) | ≤0.01% |
FAR(false accept rate) | ≤0.0001% |
Operating voltage | DC12V |
Work mode | working with master machine TFS30 only |
Verification mode | Fingerprint/Password/Card |
Language | English/Indian/Spanish/Thai/Turkey/France, etc. |
Voice | Remind late, leave early |
Communication | RS485 port |

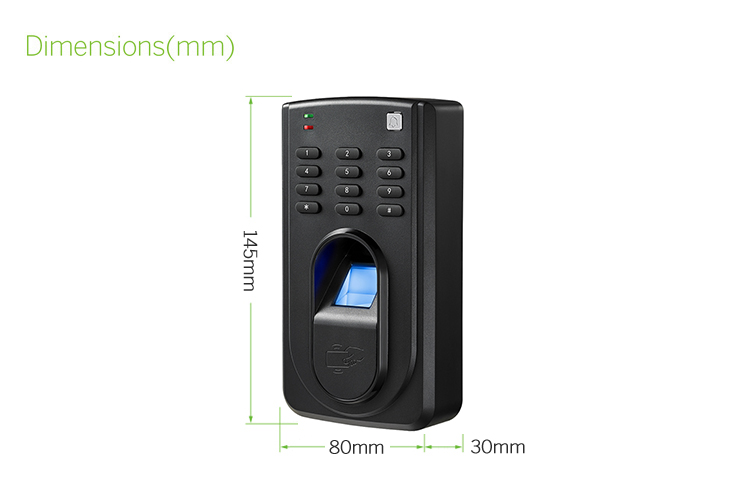

Dimension | 145*80*30mm |
S4A Datesheet_Fingerprint RFID Reader With RS485
> Display: 2.8 inches> Fingerprint Capacity: 3000> Communication: USB, R485, TCP/IP, (Optional WIFI)> Dimension: 105*105*30mm
> Display: 2.4 inches> Fingerprint Capacity: 3000> Communication: USB, R485, TCP/IP, (Optional WIFI)> Dimension: 190*80*33mm
> Display: 2.0 inches> Fingerprint Capacity: 3000> Communication: USB, R485, TCP/IP, (Optional WIFI)> Dimension: 185*64*47mm
> Card type: EM+HID or MF+CPU Card > Two relays support up to 2000 users in total for two zones > Can add consecutive user cards quickly in one time > Digital backlit keypad > Have 7 working modes
>Dynamic face recognition>Under-screen fingerprint recognition>Intelligent attendance system>High-end smart chip>Various ways to network>4.3-inch LCD touch screen>2 million pixel camera
> Face Plate: 150×43×39mm> Bolt: 17mmDIA, stainless steel 13mm throw> Timer: 0 / 3 / 6 seconds available to set> Signal Output: Door Status Output, NO/COM> Suitable For: 12~15mm Electric Bolt For Fully Frameless> Open Left or Open Right (Choose One)
> Waterproof, IP65> Free demo and SDK> Stable reading distance: 5~15m> Frequency: 920-925MHz or customize other frequency
Dimension: 115x70mm, suit the 70 plate.
