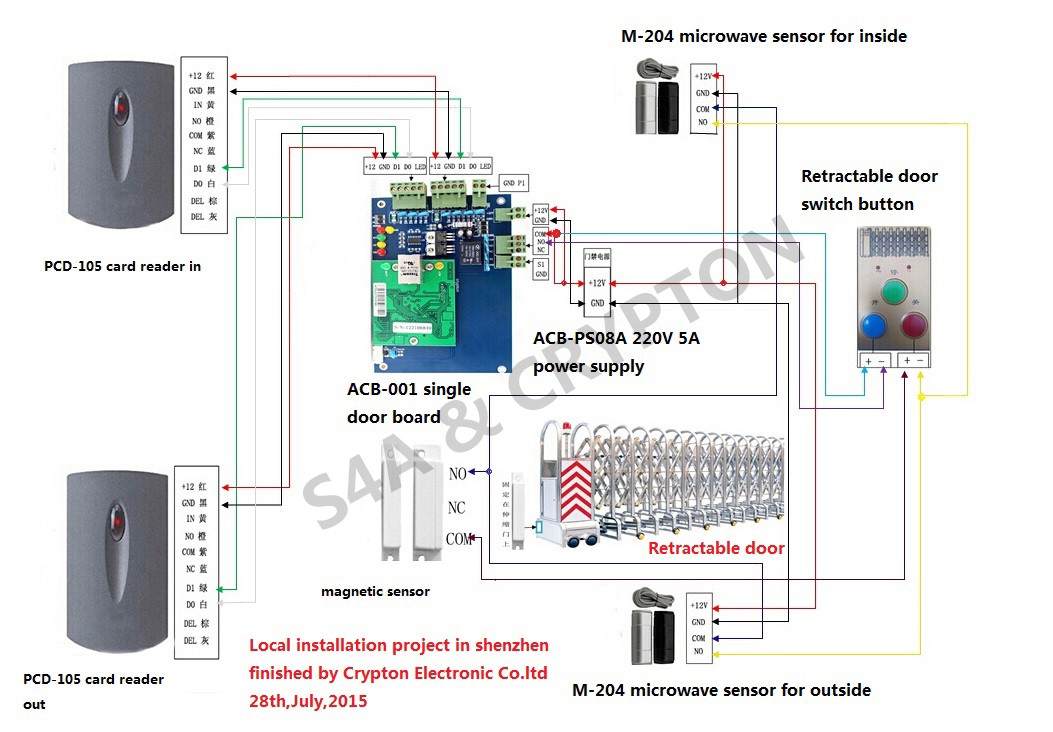

Solution for telescopic doors with access control systems
Clients requirement are as below:
1:Access controller required Bidirectional way, RFID reader IN & OUT, Punch RFID cards to unlock the door, no need exit button
2: Automatically detect the doors if the cars approaching and after XX meters, it will be closed it.
3: The normally open, normally closed magnetic sensor is used to filter the microwave sensor's door closing signal. When the telescopic door is in the closed state, the magnetic sensor is in contact, and when the Telescopic door is opened, the magnetic sensor is in the off state. When the telescopic door is closed, the magnetic sensor has no contact, the door will sound an alarm, and the card swiping is invalid at this time. Due to the unstable closed state of the Telescopic door, sometimes deviation or not in place, the door sensor may not work at this time, resulting in the failure of swiping the card to open the door, so it is recommended to fix the Telescopic door with a magnet with larger magnetism. (The door magnetic sensor terminal is fixed on the wall, depending on the site, the magnetic section is fixed on the telescopic door, the location is based on the site)
4: Wiring of the telescopic door wireless control sensor. Unscrew the screws on the back cover, use a multimeter to measure the terminals of the switch, some of which are divided into positive and negative poles, and then use a soldering iron to lead out the ‘on’ and ‘off’ signal wires.
5:Please place the telescopic door control switch in a hidden place, so as not to allow someone to directly press the telescopic door control switch to open and close the door without swiping the card.
6: The entire system does not support the suspension of the telescopic door switch at the
moment, it needs to be developed later!
This is our team configured by experience, as below:
