Standalone Access Controllers are ubiquitous in living and office places, and are an important line of defense to protect the safety of entry and exit in various places; however, many friends still mention the installation of access control all-in-one machines, which involves many aspects. Today, I will explain to you an Analysis, of the problems encountered in the installation of the access control all-in-one machine:

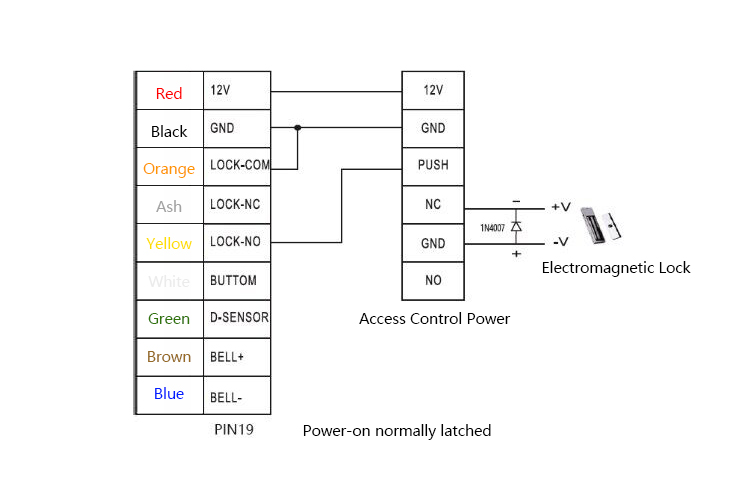

1. How to connect the Magnetic Door Lock The all-in-one access control machine supports normally open and normally closed locks, which can be connected to different terminals respectively. When the power is turned on, the locks that are closed and opened when the power is off use NC terminals, as shown in the figure below:
2. How to externally connect the exit switch and door sensor
The access control all-in-one machine is externally connected to the exit switch and door sensor as shown in the figure. The connection terminals of the exit switch are GND and BUTTOM, and the connection terminals of the door sensor are GND and D-SENSOR.
3. How to connect the doorbell
The all-in-one machine is externally connected to the doorbell, the doorbell terminals are BELL+, and BELL-, and the power adapter is connected to the normal use of the doorbell.

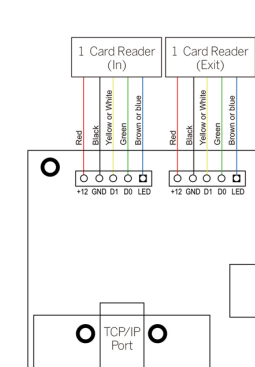

4. How to connect the Wiegand controller externally
The access control all-in-one machine is externally connected to the Wiegand controller as shown in the figure, and the wiring terminals of the Wiegand controller are GND and +12V
5. How to install quickly and accurately
The access control all-in-one machine needs to determine the installation position first. The recommended installation height is 1.4-1.5m. Fix the attached hanging plate to the wall of the installation location, install the machine on the hanging plate, and fix the machine with the included hexagonal wrench and inner hexagonal screws. And the hanging board connects the various devices of the access control all-in-one machine according to the above wiring and tests the access control function after the connection is completed. Someone should test both inside and outside the door.
