1. First determine the thickness of the glass door and the installation direction: it is suitable for the thickness of the glass door of 10-12mm. If the direction is inconsistent with the direction of the lock, you can change the direction of the front lock body, remove the four screws at the back, and rotate the front lock body 180 degrees, and then tighten the 4 screws.
2. Determine the installation location: Since you need to enter a fingerprint or password, you need to consider the user's experience and feel, and you need to find a suitable location for installation, generally installed in the middle of the glass door.
3. Fix the lock body fixing rubber plate: Clean up the area where the glass door is installed, tear off the protective paper on the lock body fixing rubber plate, and make the two small feet of the lock body fixing plate close to the side of the door, slowly. Stick the glue on the inside of the glass door, press it firmly, and the left and right directions need to be in the same position.
4. Install the front lock body: Push the assembly of the front lock body and the lock body mounting plate inward along the guide surface of the lock body fixing plate attached to the glass, and pay attention that the edge of the foot pad cannot be curled. 5 Fix the lock body screw: align the nut hole to lock the screw on the fixing plate to fix the front lock body assembly. Install the rear lock body, insert the cable, and straighten the cable, install the rear lock body into the lock body mounting plate, and tighten the screws diagonally. After the installation is complete, open the battery back cover of the lock, install the four batteries that come with it, and test whether the fingerprint, password and identification card functions are in normal working condition, and whether the lock tongue retraction meets the requirements, etc.

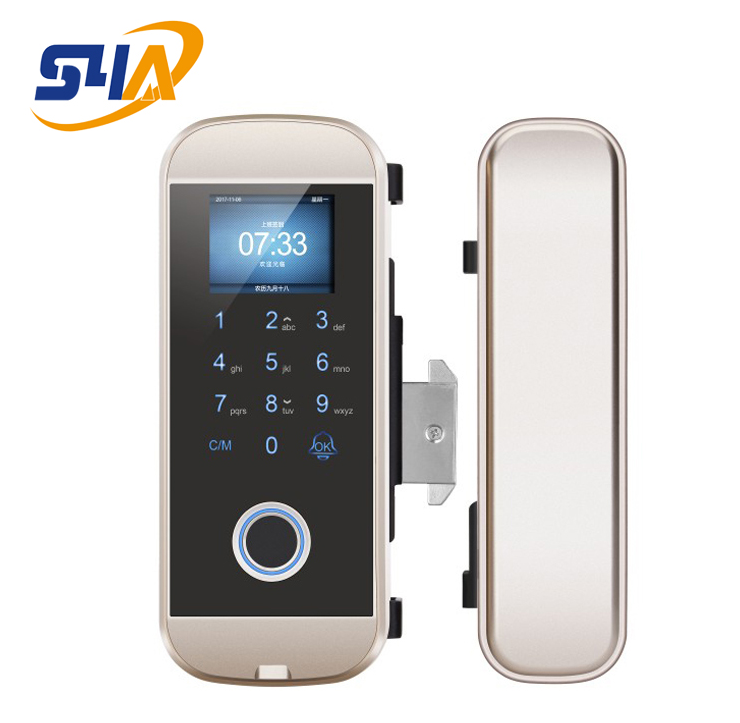

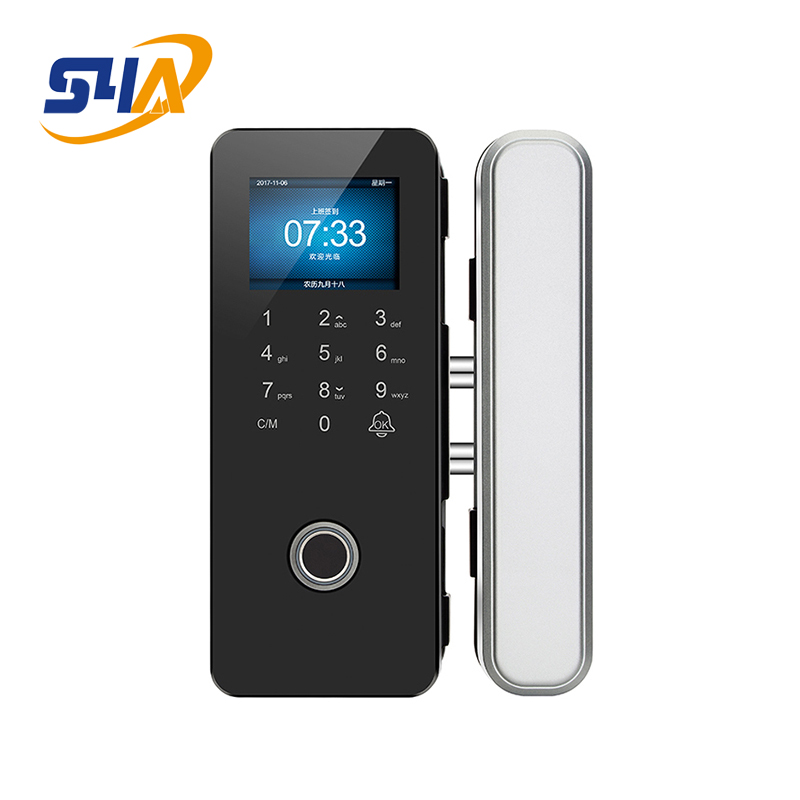

Installation method of glass door fingerprint lock:
Installation steps:
a. First, apply glass glue to stick the rear of the front door to the glass, then clamp the master lock of the fingerprint lock on the glass door to the door and the rear, and then tighten 5 screws on the front door.
b. Insert the cable at the front of the main lock into the small hole in the rear of the main lock, then close the back cover, and then tighten 4 screws on the back cover.
c. The operation of the lock on the other side is the same as that of the main lock, except that there is no cable insertion and removal, and it is fixed with 8 screws. The other operations are the same as the main lock.
d. When installing the lock box, pay attention to the fact that the lock tongues of the fingerprint lock cannot be buckled in place, and the door cannot be shaken.
e. After installation, check whether the front and rear lock bodies of the smart lock are parallel to the door, turn the front and rear handles to check that there is no jam phenomenon, install the battery, check the keys, card swiping, fingerprints, etc. one by one, and use the factory password to test whether the lock is open ,close
2. Installation precautions:
a. When installing the fingerprint lock on the glass door, be careful not to break the cable.
b. Do not let dust and impurities enter the main lock during installation to avoid short circuit of electronic components.
c. During installation, it is necessary to ensure that the connection of the wires is correct, and then place the connection wires to prevent the wires from being crushed or jammed, otherwise the fingerprint lock of the glass door will not work properly.
d. During the installation and test of the fingerprint lock on the glass door, there may be some dust and foreign matter remaining in the fingerprint collection window. Therefore, when entering fingerprints, clean the fingers and the fingerprint collection window. Moreover, when entering a fingerprint, the contact area between the finger and the fingerprint window should be as large as possible, and the same finger can be entered several times to increase the recognition rate.
